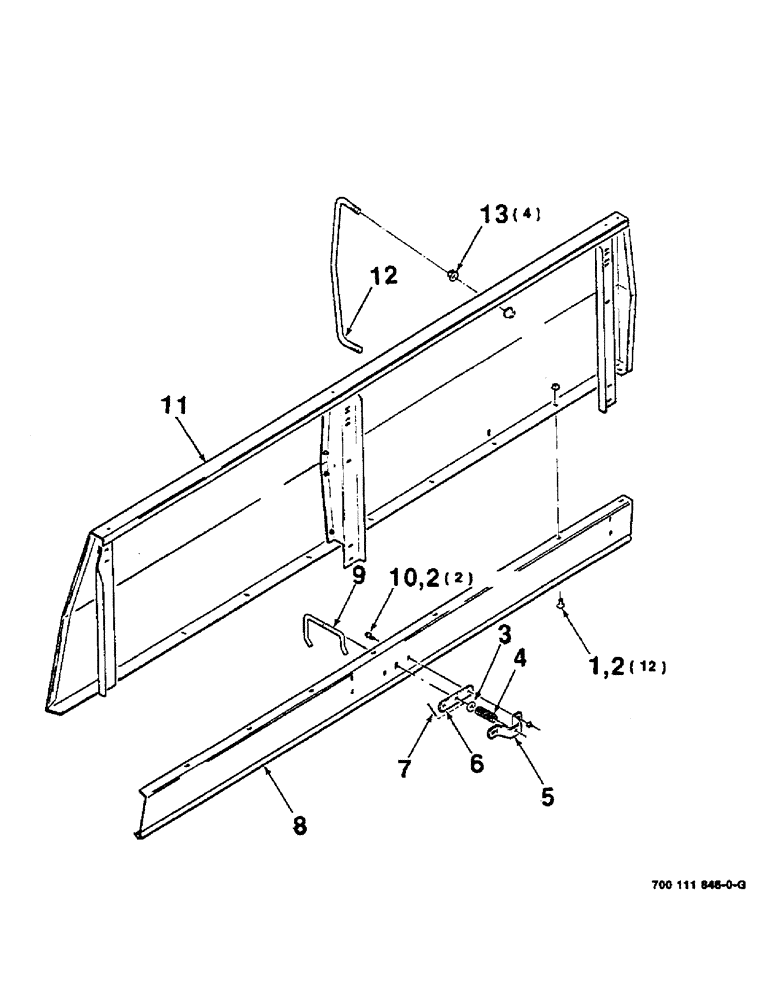

Запчасти Case IH 8825HP (07-52) - SIDE PANEL ASSEMBLY, RIGHT (09) - CHASSIS

1

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

12шт.

2

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

14шт.

3

495-11053

WASHER,1/2", SAE

1шт.

4

58685

SPRING

1шт.

5

700111869

BRACKET

MOUNTING - latch

1шт.

6

700111870

LARGE PLATE

PLATE

1шт.

7

438-11232

LOCK PIN,3/16" x 2", Slotted

3/16 X 2-1/4 SSP

1шт.

8

700133873

PANEL

- lower, right

1шт.

9

700111868

HANDLE

1шт.

10

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

2шт.

11

700111973

PANEL

ASSEMBLY - right

1шт.

12

700111867

HANDLE

1шт.

13

7704919

FLANGE NUT,Flg, 5/8"-11, G8

5/8-11 HFN GR8

4шт.
