Запчасти Case IH 8825HP (07-40) - TAIL WHEEL ASSEMBLY, FLOTATION (09) - CHASSIS

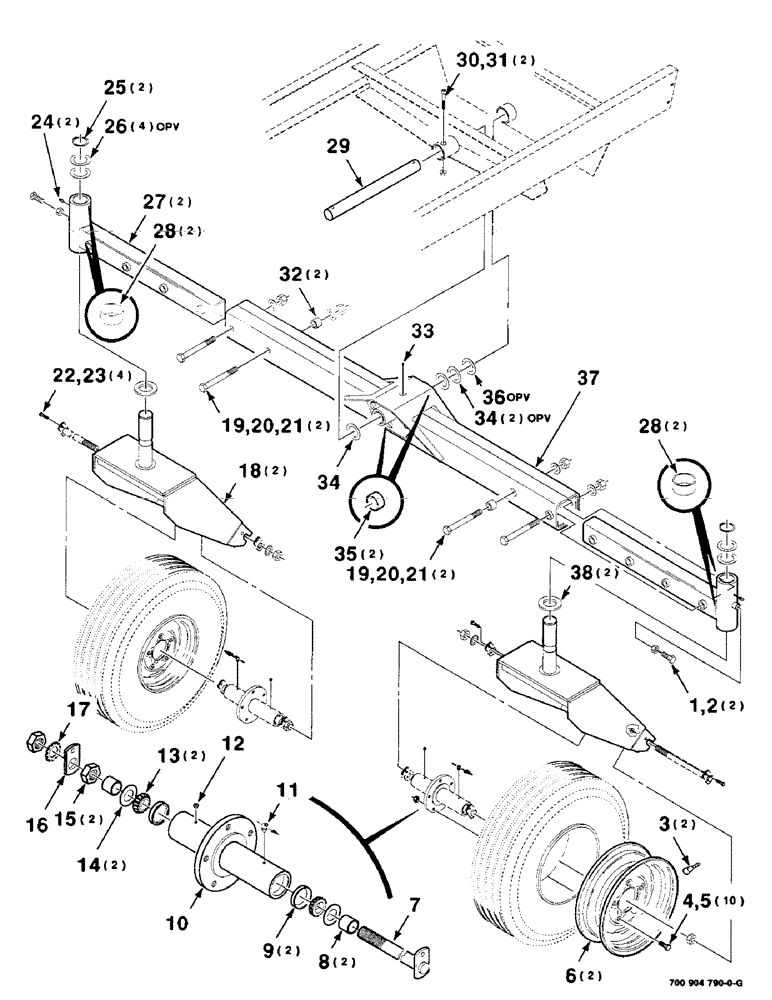

Схема запчастей Case IH 8825HP - (07-40) - TAIL WHEEL ASSEMBLY, FLOTATION (09) - CHASSIS
36
34
19
28
30
9
23
29
13
37
33
27
22
7
4
34
28
18
26
6
35
17
25
20
10
16
8
14
19
38
15
21
20
12
2
31
1
32
11
3
5
24
21

Артикул

Название

Примечание

Количество

1

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

2шт.

2

425-1412

JAM NUT,Jam, 3/4"-10, G5

3/4-10 HJN GR2

2шт.

3

A38261

VALVE

STEM - valve

2шт.

4

T52730

WHEEL BOLT

9/16-18 WHEEL BOLT

10шт.

5

425-119

NUT,Hex, 9/16"-18, G5

10шт.

6

700715530

RIM

WHEEL (16.1 x W11C)

2шт.

7

700134118

SHAFT

WA - axle

1шт.

8

700101125

SPACER

TUBE

2шт.

9

50104

BEARING CUP,50.01mm OD

CUP - bearing

2шт.

10

700134120

HUB

WA

1шт.

11

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

1/8-27 X 45 DEGREE ZERK

1шт.

12

7792005

VENT

FITTING - relief

1шт.

13

51805

ROLLER BEARING,25.4mm ID

BEARING - cone

2шт.

14

700134124

WASHER

- special

2шт.

15

425-1516

JAM NUT,Jam, 1"-14, G5

1-14 HJN GR2

2шт.

16

305581

CLIP

1шт.

17

193-17

LOCK WASHER,Ext Tooth, 1"

WASHER, LOCK, Ext Tooth, 1"

1шт.

18

700147406

FORK

WA

2шт.

19

413-16128

BOLT,Hex, 1" - 8 x 8", Gr 5

1-8 X 8 C

4шт.

20

705574

WASHER,1 1/8" x 2" x .156", HDN

4шт.

21

232-41116

LOCK NUT,1"-8, GC

NUT, LOCK, 1"-8, GC

4шт.

22

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

23

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

4шт.

24

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

25

103-11225

SNAP RING,#225, Ext

Ring, Snap, #225, Ext

2шт.

26

852947

BUSHING

2-1/4 X 14 GAUGE NRMB

4шт.

27

700134104

AXLE

WA - rear

2шт.

28

700715696

BUSHING

BEARING - bronze

4шт.

29

6270219

SHAFT

1шт.

30

61-35052

HEX SOC SCREW,1/2"-13 x 3 1/4"

1/2-13 X 3-1/4 HSHCS SPL

2шт.

31

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

2шт.

32

700134128

BUSHING

2шт.

33

219-11

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .94" lg

1шт.

34

7852866

BUSHING

2 X 18 GAUGE NRMB

3шт.

35

852491

BRONZE BUSHING

BUSHING - bronze

2шт.

36

52548

SPECIAL WASHER

2 X 14 GAUGE NRMB

1шт.

37

700147379

BEAM

WA - tail wheel

1шт.

38

6268841

WASHER

2шт.

Выбрано товаров: 38
