Запчасти Case IH 8825HP (07-38) - TAIL WHEEL ASSEMBLY, STANDARD (09) - CHASSIS

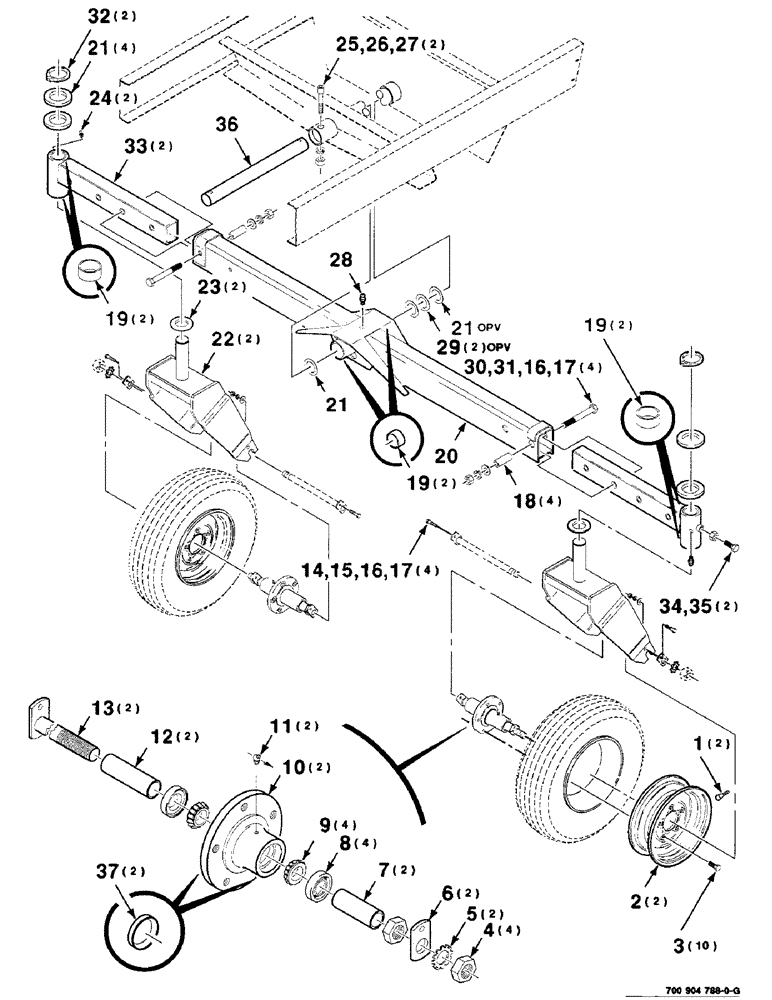

Схема запчастей Case IH 8825HP - (07-38) - TAIL WHEEL ASSEMBLY, STANDARD (09) - CHASSIS
27
28
19
14
15
29
1
19
24
20
16
33
31
21
13
18
35
30
9
22
34
17
21
36
19
16
11
26
3
7
25
8
17
10
37
4
23
21
12
2
5
32
6

Артикул

Название

Примечание

Количество

1

A38261

VALVE

STEM - valve

2шт.

2

700715530

RIM

WHEEL (16.1 x W11C)

2шт.

3

T52730

WHEEL BOLT

9/16-18 WHEEL BOLT

10шт.

4

425-1516

JAM NUT,Jam, 1"-14, G5

1-14 J GR2

4шт.

5

193-17

LOCK WASHER,Ext Tooth, 1"

WASHER, LOCK, Ext Tooth, 1"

2шт.

6

305581

CLIP

2шт.

7

700124278

SPACER

2шт.

8

744888

SEAL

- oil

4шт.

9

D29266

ROLLER BEARING,1" ID x 0.58"

BEARING - cone

4шт.

10

6494777

HUB

ASSEMBLY

2шт.

11

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

1/4-28 X 45 DEGREE ZERK

2шт.

12

700133864

SPACER

2шт.

13

700133862

SHAFT

AXLE WA

2шт.

14

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

15

495-21044

WASHER,3/8"

4шт.

16

492-11075

LOCK WASHER,3/4"

3/4"

8шт.

17

425-1012

NUT,3/4"-10, G5

3/4-10 H

8шт.

18

700110971

SPACER

4шт.

19

852491

BRONZE BUSHING

6шт.

20

700116677

BEAM

- Wa

1шт.

21

52548

SPECIAL WASHER

2 X 14 GAUGE NRMB

6шт.

22

700133855

FORK

WA

2шт.

23

6462519

SHIM

2шт.

24

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

25

61-35052

HEX SOC SCREW,1/2"-13 x 3 1/4"

1/2-13 X 3-1/4 HSHCS SPL

2шт.

26

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

27

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

28

219-11

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .94" lg

1шт.

29

7852866

BUSHING

2 X 18 GAUGE NRMB

2шт.

30

413-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 5

4шт.

31

705566

WASHER

3/4 HARDENED PLAIN WASHER

4шт.

32

103-11200

SNAP RING,#200, Ext

Ring, Snap, #200, Ext

2шт.

33

700124676

AXLE

WA

2шт.

34

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

2шт.

35

425-1412

JAM NUT,Jam, 3/4"-10, G5

3/4-10 HJN GR2

2шт.

36

6270219

SHAFT

1шт.

37

572564R1

BEARING CUP

BEARING - cup

2шт.

Выбрано товаров: 37
