Запчасти Case IH 8825HP (07-36) - PLATFORM STEPS, RAILS AND TOOL BOX ASSEMBLY (09) - CHASSIS

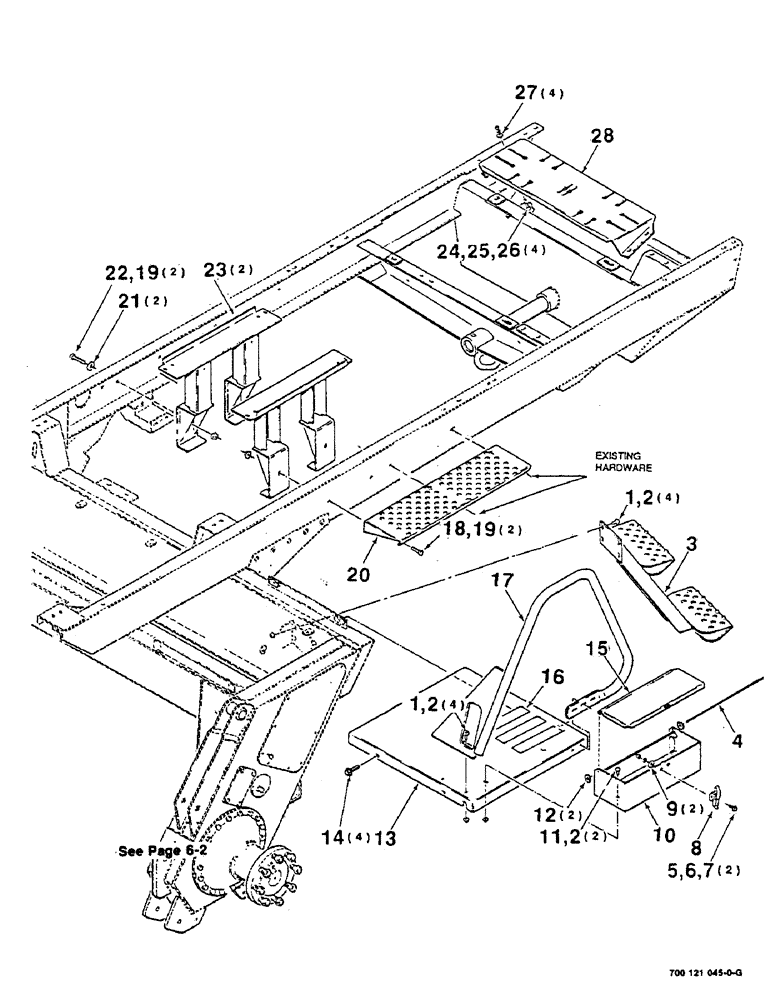

Схема запчастей Case IH 8825HP - (07-36) - PLATFORM STEPS, RAILS AND TOOL BOX ASSEMBLY (09) - CHASSIS
5
37
6
13
19
26
7
12
17
19
1
2
15
2
18
23
22
20
10
24
16
11
9
8
28
1
2
21
14
25
3
4

Артикул

Название

Примечание

Количество

1

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

8шт.

2

231-5146

FLANGE NUT,3/8"-16

10шт.

3

700110897

STEP

- riser

1шт.

4

700115914

PIN

- hinge

1шт.

5

463-3128

SCREW,Hex Wash Hd, #12-24 x 1/2"

#12-24 X 1/2 HWHMS

2шт.

6

225-14112

NUT,#12-24

#12-24 H GR2

2шт.

7

492-11012

LOCK WASHER,#12

WASHER, LOCK, #12

2шт.

8

700706849

LATCH

- tool box

1шт.

9

27616R1

WASHER,.281" x 5/8" x .075", HDN

#12 PLAIN WASHER

2шт.

10

700115910

TOOL BOX

1шт.

11

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

2шт.

12

700707858

SNAP RING

RETAINER - stud

2шт.

13

700110900

COVER

- left

1шт.

14

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

4шт.

15

700115913

LID

- tool box

1шт.

16

6849178

WALL

TREAD - safety (10 Foot bulk)

1шт.

17

700115439

HANDRAIL

RAIL

1шт.

18

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

2шт.

19

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

20

700133907

STEP

1шт.

21

495-21056

WASHER,1/2"

1/2 WIDE PLAIN WASHER

2шт.

22

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

23

700122748

SUPPORT

FRAME - channel

2шт.

24

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

4шт.

25

425-105

NUT,5/16"-18, G5

4шт.

26

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

27

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

4шт.

28

700110899

RACK

- battery

1шт.

Выбрано товаров: 28
