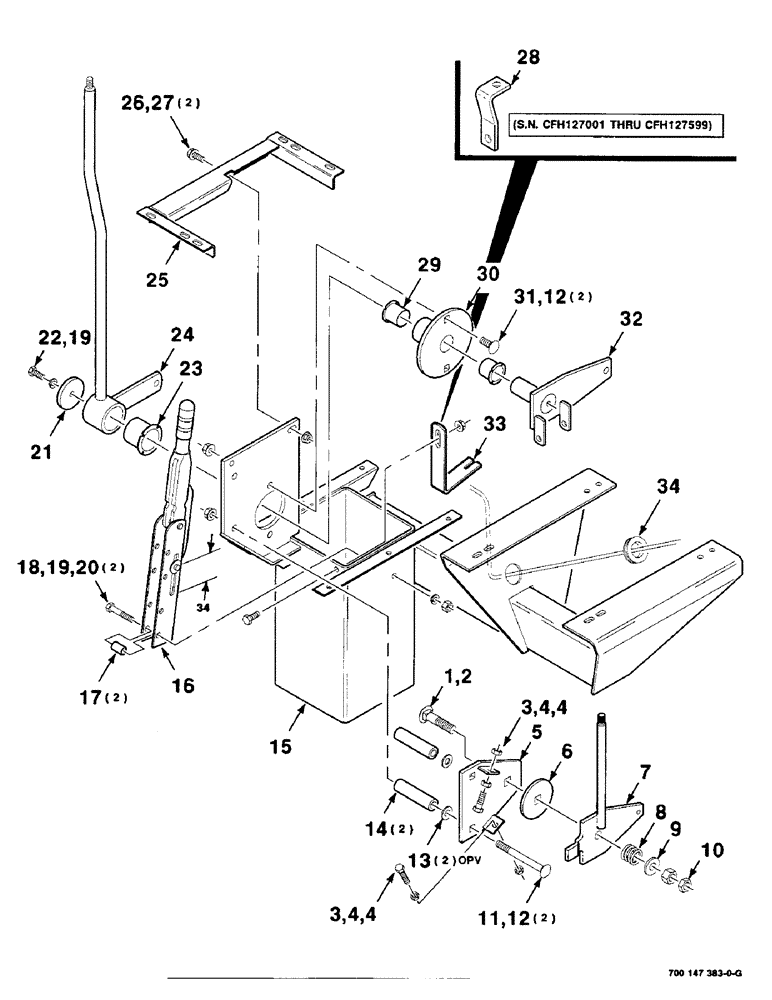

Запчасти Case IH 8825HP (07-32) - CONTROL ASSEMBLY, OPERATORS (09) - CHASSIS

1

433-836

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2 1/4", Gr 5

1/2-13 X 2-1/4 RHSNB

1шт.

2

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

3

700705617

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

5/16-18 X 1-1/4 FTC

2шт.

4

425-145

JAM NUT,Jam, 5/16"-18, G5

4шт.

5

700114951

SUPPORT

MOUNTING WA - lever

1шт.

6

700711026

DISC

- friction

1шт.

7

700111019

LEVER

WA

1шт.

8

58024

SPRING

- compression

1шт.

9

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 HARDENED PLAIN WASHER

1шт.

10

425-148

JAM NUT,Jam, 1/2"-13, G5

1шт.

11

433-664

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 4", Gr 5

3/8-16 X 4 RHSNB

2шт.

12

231-5146

FLANGE NUT,3/8"-16

4шт.

13

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

2шт.

14

700116062

SPACER

2шт.

15

700111038

HOUSING

MOUNTING WA - controls

1шт.

16

H506881

HANDLE

LEVER ASSEMBLY - parking brake

1шт.

17

6606966

SPACER

2шт.

18

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

2шт.

19

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

20

425-105

NUT,5/16"-18, G5

2шт.

21

6617344

WASHER

WASHER

1шт.

22

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

C Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

23

700705559

BUSHING

- nylon

1шт.

24

700111026

LEVER

WA

1шт.

25

700133904

FUNNEL

FRAME WA

1шт.

26

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

2шт.

27

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

2шт.

28

700111049

ANGLE

1шт.

29

277523R1

BUSHING

- nylon

1шт.

30

700111023

MOUNTING PLATE

MOUNTING WA

1шт.

31

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

2шт.

32

700115468

PIVOT

WA

1шт.

33

700115752

SUPPORT

- throttle

1шт.

34

248-2376

GROMMET,5/8" ID x 1 1/4" Groove Dia, Str Cut

Rubber 5/8" ID x 1 1/4" Groove Dia, Str Cut

1шт.
