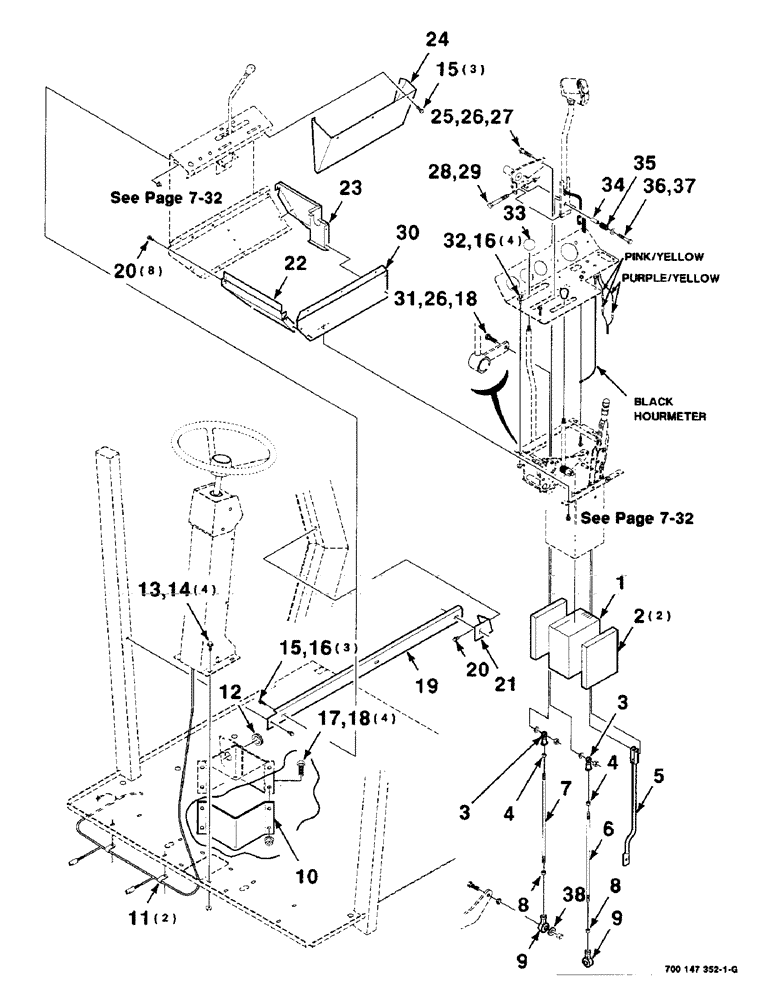

Запчасти Case IH 8825HP (07-30) - CONSOLE ASSEMBLY, OPERATORS, SERIAL NUMBER CFH127600 AND LATER (09) - CHASSIS

1

700717126

FOAM

- base, console

1шт.

2

700717125

FOAM

- base, console

2шт.

3

700705523

SPHERICAL BEARING,9.52 mm ID x 12.7 mm

BEARING - rod end, LH Thd

2шт.

4

129-323

SPECIAL NUT,3/8"-24, G5, LH

2шт.

5

700110982

ROD

WA - brake

1шт.

6

700111010

ROD

- ground speed

1шт.

7

700111012

ROD

1шт.

8

425-116

NUT,3/8" - 24, Gr 5

2шт.

9

700717187

END

BEARING - rod end

2шт.

10

700110018

CLAMP

1шт.

11

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

2шт.

12

248-21110

GROMMET,1" ID x 1 3/8" Groove Dia

1шт.

13

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

4шт.

14

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

4шт.

15

7883275

SCREW,Hex Washer, 1/4" - 20 x 3/4"

1/4-20 X 3/4 HWHMS

6шт.

16

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

7шт.

17

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

18

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

5шт.

19

700121018

CHANNEL

1шт.

20

187-1036

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1/2"

1/4-20 X 1/2 HWHTCTS

9шт.

21

700121017

BRACKET

ANGLE

1шт.

22

700111076

PANEL

- front

1шт.

23

700111075

PANEL

- rear

1шт.

24

700121029

COVER

1шт.

25

700111557

SCREW

3/8-16 X 1-1/2 C SPECIAL

1шт.

26

492-11038

LOCK WASHER,3/8"

2шт.

27

425-106

NUT,3/8"-16, Cl 5

1шт.

28

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

C Hex, 3/8"-16 x 2 3/4", G5

1шт.

29

231-4116

NUT,3/8"-16, GB

3/8-16 HTLN GR/B

1шт.

30

700111073

PANEL

- inside

1шт.

31

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

32

163-14

SCREW,Hex Wshr Hd, 1/4" - 20 x 1"

1/4-20 X 1 HWHMS

4шт.

33

721258

KNOB

1шт.

34

700111576

SPACER

1шт.

35

058131

SPRING

- compression

1шт.

36

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

1шт.

37

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

1шт.

38

495-21044

WASHER,3/8"

1шт.
