Запчасти Case IH 8825HP (07-26) - SEAT ASSEMBLY, 8825HP, 700713385 SEAT ASSEMBLY, CLOTH, COMPLETE (09) - CHASSIS

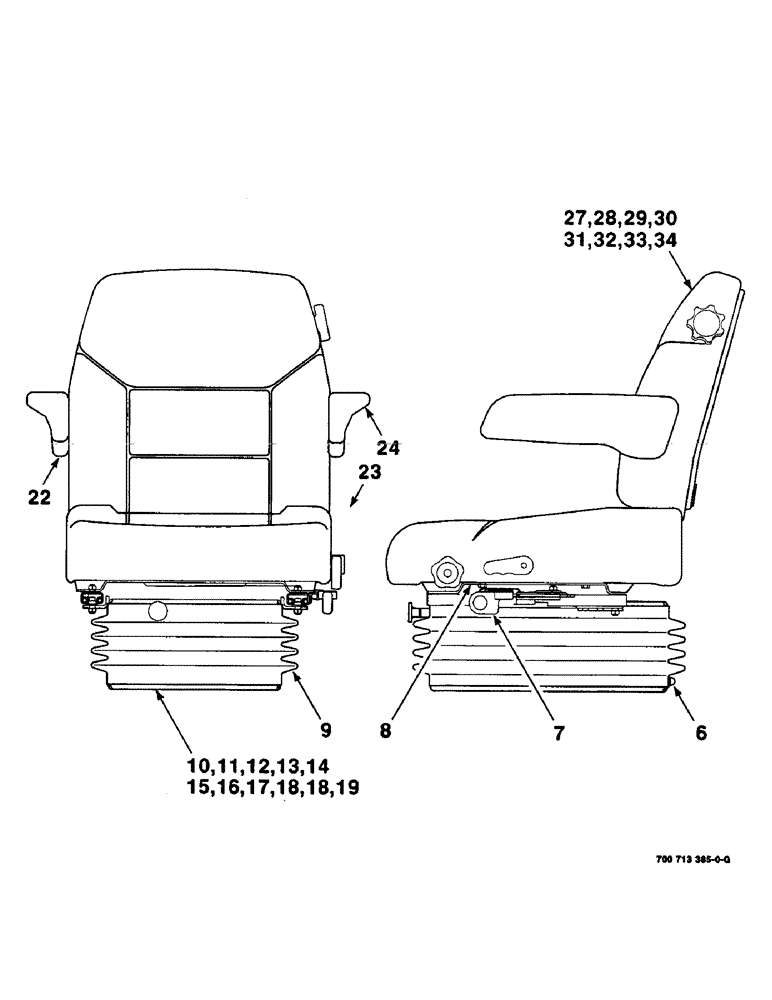

Схема запчастей Case IH 8825HP - (07-26) - SEAT ASSEMBLY, 8825HP, 700713385 SEAT ASSEMBLY, CLOTH, COMPLETE (09) - CHASSIS
14
9
18
33
7
12
28
29
34
17
8
19
6
24
18
23
13
16
31
22
32
27
30
15
11
10

Артикул

Название

Примечание

Количество

700713385

SEAT

ASSEMBLY - cloth, complete

1шт.

1

1975957C1

BRACKET

MOUNTING BRACKET - seat belt

1шт.

2

703769

SCREW

5/16-18 X 2-3/4 C

2шт.

3

414-716

BOLT,Hex, 7/16" - 20 x 1", Gr 5

1шт.

4

496-21047

WASHER

7/16 HARDENED PLAIN WASHER

2шт.

5

131-1119

LOCK NUT,7/16"-24, GA

7/16-20 HCLN

1шт.

6

132872A1

KIT

SERVICE KIT - boot button

1шт.

7

1344248C1

SLIDE

SERVICE KIT - single locking

1шт.

8

182991A1

LARGE PLATE

ADAPTER PLATE - seat, narrow

1шт.

9

1990647C2

KIT

BOOT - air suspension

1шт.

10

241196A1

SUSPENSION

AIR SUSPENSION ASSEMBLY - with isolator (Includes items 11 thru 19)

1шт.

11

1999947C4

COMPRESSOR

SERVICE KIT - wire harness, compressor

1шт.

12

1344250C2

KIT

SERVICE KIT - suspension shock absorber

1шт.

13

197793A1

SPRING

SERVICE PART - air spring

1шт.

14

1990645C1

LATCH

ASSEMBLY - isolator

1шт.

15

227546A1

KIT

SERVICE KIT - isolator shock absorber

1шт.

16

180594A3

KIT

BEARING SERVICE KIT - air suspension latch isolator

1шт.

17

1981852C3

SWITCH

SERVICE KIT - air valve

1шт.

18

180593A1

KIT

BUMPER

2шт.

19

700713652

SHAFT

- bearing

1шт.

20

1990548C4

KIT

SERVICE KIT - air line and fittings

1шт.

21

414-724

BOLT,Hex, 7/16" - 20 x 1-1/2", Gr 5

1шт.

22

700708810

ARMREST ASSY.

ARMREST AND PIN ASSEMBLY - right

1шт.

23

741033

SAFETY BELT

SEAT BELT

1шт.

24

1981818C1

ARMREST

AND PIN ASSEMBLY - left

1шт.

25

242306A2

SWITCH

- seat

1шт.

26

1345209C1

HARNESS

- seat switch

1шт.

27

243700A1

SPARE PART SET

SEAT ASSEMBLY - top, without armrests (Includes items 28 thru 34)

1шт.

28

1981816C2

PACKAGE,SERVICE

SERVICE KIT - back pad

1шт.

29

242321A1

CUSHION ASSY.

SEAT CUSHION ASSEMBLY

1шт.

30

1999691C1

PACKAGE,SERVICE

SERVICE KIT - seat top knob

1шт.

31

1999691C1

PACKAGE,SERVICE

KNOB - fore AFT

1шт.

32

1981820C2

PACKAGE, REPAIR

SERVICE KIT - backrest cover

1шт.

33

1999693C1

KIT

SERVICE KIT - back cover clip

1шт.

34

1999691C1

PACKAGE,SERVICE

KNOB - Lumbar

1шт.

35

A45054

BUMPER,Neoprene

S

3шт.

Выбрано товаров: 36
