Запчасти Case IH 8825HP (07-22) - HEATER HOSE ASSEMBLY (09) - CHASSIS

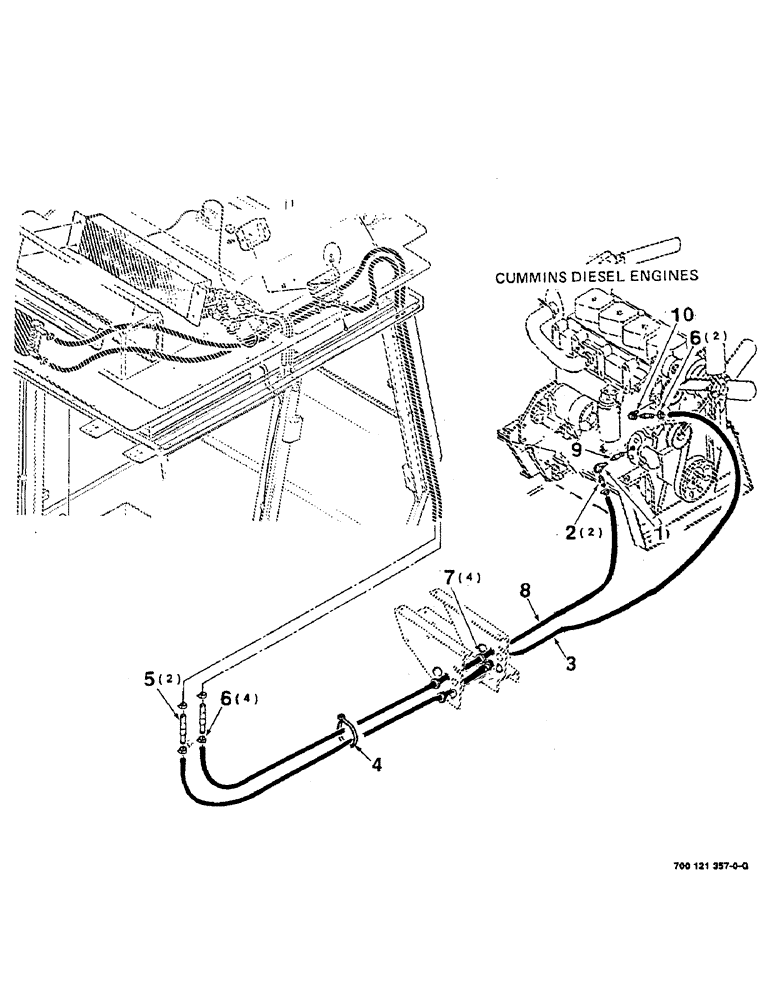

Схема запчастей Case IH 8825HP - (07-22) - HEATER HOSE ASSEMBLY (09) - CHASSIS
6
2
6
8
5
1
4
7
3
10

Артикул

Название

Примечание

Количество

1

137894

ELBOW,45 Degree, 1/2" NPT Street

1/2 X 45 DEGREE STREET ELL

1шт.

2

217-153

FITTING,5/8" Hose Barb x 1/2" Male NPTF

INSERT

2шт.

3

700122711

HEATER HOSE,0.63" ID x 76.77", SAE 30R3 Class D2

HOSE , Heater, Return 0.63" ID x 76.77", SAE 30R3 Class D2

1шт.

4

529070

CABLE TIE,368.3mm L

TIE - cable

1шт.

5

700710295

FITTING

SPLICER - hose

2шт.

6

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP, HOSE, #12, 0.69/1.25 Type F Worm

6шт.

7

248-21110

GROMMET,1" ID x 1 3/8" Groove Dia

- rubber

4шт.

8

700122712

HEATER HOSE,0.63" ID x 92.52", SAE 30R3 Class D2

HOSE , Heater, Pressure 0.63" ID x 92.52", SAE 30R3 Class D2

1шт.

9

221-185

PIPE,Nipple, 1/2" NPT x 1 1/8"

1/2 NIPPLE - close

1шт.

10

217-1054

ELBOW,1/2" - 14 NPTF Female

1/2 X 90 DEGREE STREET ELL

1шт.

Выбрано товаров: 10
