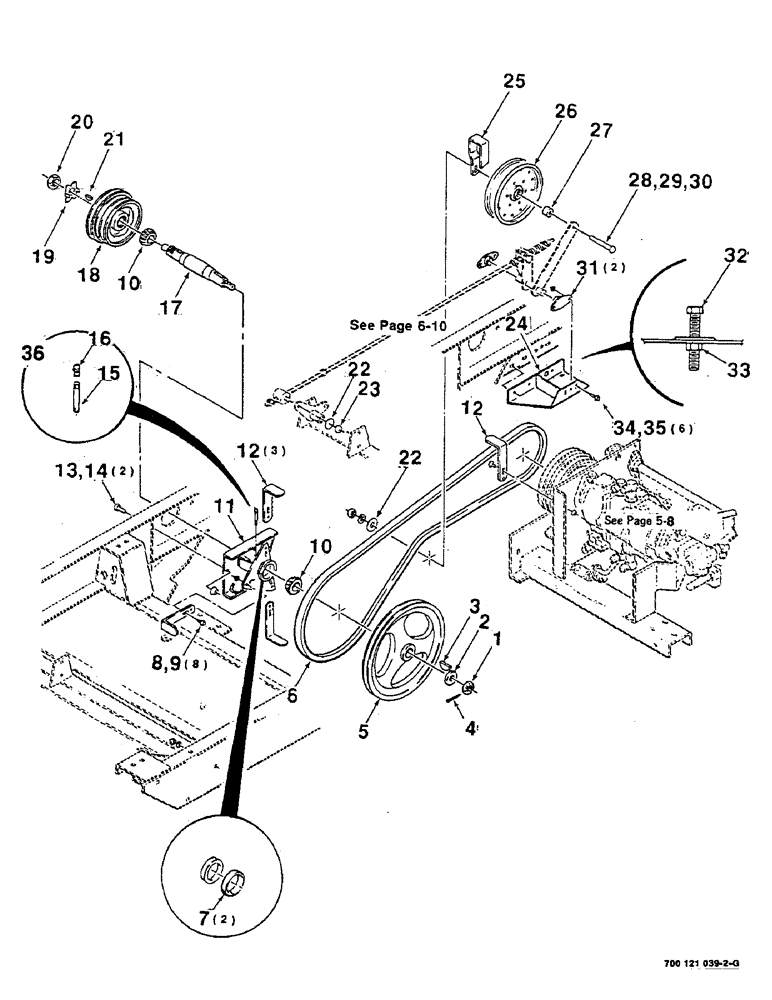

Запчасти Case IH 8825 (06-06) - HEADER DRIVE ASSEMBLY, CONTINUED (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
425-1312
SLOTTED NUT,3/4"-16, G5
3/4-16 SLOTTED HEX NUT
1шт.
2
497800
WASHER
1шт.
3
118000
WOODRUFF KEY,#27, 1/4" x 2 1/8", HT
1/4 X 2-1/8 WOODRUFF KEY
1шт.
4
432-1024
COTTER PIN,5/32" x 1 1/2"
5/32" x 1 1/2"
1шт.
5
700110944
PULLEY
SHEAVE
1шт.
6
7855331
V-BELT,22.33 mm W x 2813.00 mm L
1шт.
7
618024R1
BEARING CUP,65.113mm OD x 13.97mm W
2шт.
8
121-115
SERRATED BOLT,Hex, 5/16" - 18 x 3/4"
8шт.
9
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
NUT, Flg, USR, 5/16"-18
8шт.
10
713818
ROLLER BEARING,34.938 mm ID x 65.113 mm OD x 18.796 mm
BEARING - cone
2шт.
11
700122746
BAR LINING
HOUSING
1шт.
12
700110929
GUIDE
- belt
4шт.
13
413-824
BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5
2шт.
14
231-5148
FLANGE NUT,Flg, USR, 1/2"-13
2шт.
15
221-109
PIPE,Nipple, 1/8" NPT x 2"
NIPPLE
1шт.
16
219-60
LUBE NIPPLE,1/8" - 27 Female NPTF
ZERK - female, 1/8 NPT
1шт.
17
700116465
SHAFT
- header
1шт.
18
700130770
SHEAVE
- 4 groove
1шт.
19
700110754
LOCKING TAB
TAB - locking
1шт.
20
425-1520
JAM NUT,Jam, 1 1/4"-12, G5
1-1/4-12 HEX JAM NUT
1шт.
21
126-124
WOODRUFF KEY,#15, 1/4" x 1", HT
1шт.
22
705541
WASHER,0.53" ID x 1.06" OD x 0.14" Thk
1/2 HARDENED PLAIN WASHER
2шт.
23
231-5348
FLANGE NUT,Flg, 1/2"-13
1/2-13 HFTLN
1шт.
24
700110862
SUPPORT
CHANNEL
1шт.
25
700110935
GUIDE
- belt
1шт.
26
54510
FRONT IDLER
IDLER - flat
1шт.
27
159970
SPACER
1шт.
28
413-840
BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5
1/2-13 X 2-1/2 C
1шт.
29
425-108
NUT,1/2" - 13, Gr 5
NUT, , Hex 1/2"-13, G5
1шт.
30
80679
LOCK WASHER,1/20.507 CST ZND
WASHER, LOCK, 1/2"
1шт.
31
A63366
SPHERICAL BEARING,19mm ID
BEARING - flange
2шт.
32
7772858
BOLT,Hex, 5/16" x 1 3/4", Gr 5
5/16-18 X 1-3/4 FTC
1шт.
33
425-105
NUT,5/16"-18, G5
1шт.
34
409-7612
BOLT,3/8"-16 x 1.09" OAL
3/8-16 X 3/4 HWHMS
6шт.
35
231-5146
FLANGE NUT,3/8"-16
6шт.
36
77297
NIPPLE, LUBE
ZERK ASM
1шт.
Выбрано товаров: 36
