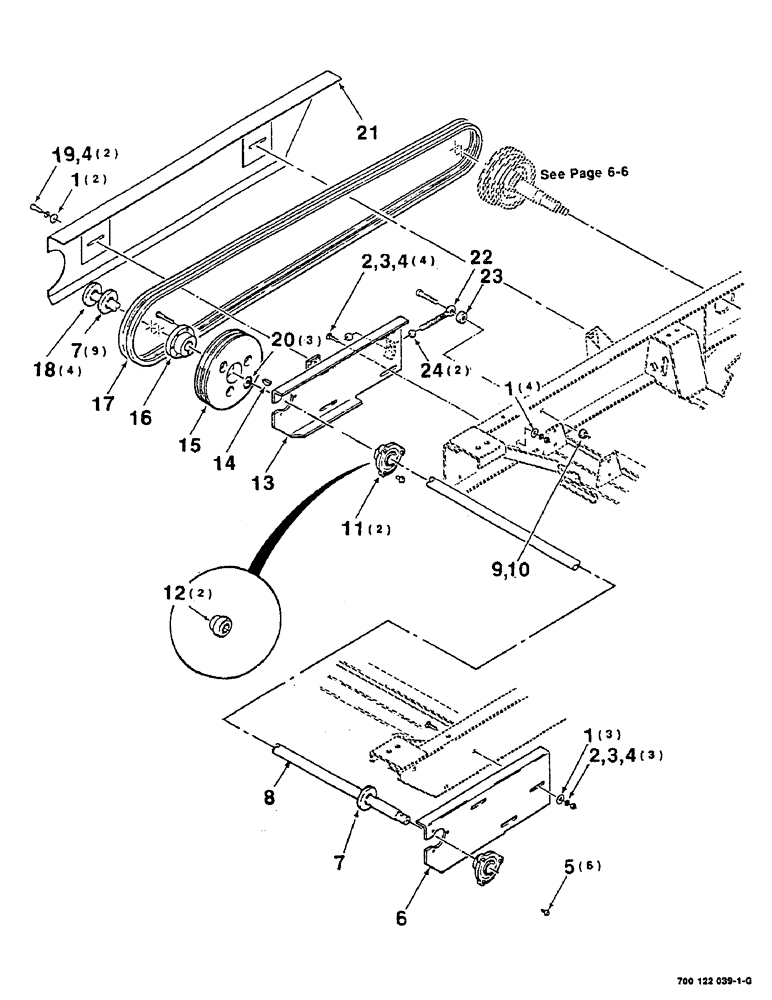

Запчасти Case IH 8825 (06-04) - HEADER DRIVE ASSEMBLY (06) - POWER TRAIN

1

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

9шт.

2

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

7шт.

3

425-106

NUT,3/8"-16, Cl 5

7шт.

4

492-11038

LOCK WASHER,3/8"

9шт.

5

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HFSS

6шт.

6

700121007

CHANNEL

- left

1шт.

7

52324

BUSHING

1-1/4 X 10 GAUGE NRMB

10шт.

8

700129135

SHAFT

1шт.

9

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

10

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

1шт.

11

700706305

BEARING ASSY,31.75 mm ID x 53.19 mm OD x 51.21 mm

BEARING

2шт.

12

710004

PTO SHAFT

2шт.

13

700121005

SUPPORT

MOUNTING DRIVE

1шт.

14

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

15

700126399

SHEAVE

1шт.

16

7747280

ASSEMBLY

TAPER BUSHING (Includes bolts)

1шт.

17

700714140

SET OF BELTS,3403.60 mm L

2 Matched, V-Belt 3403.60 mm L

1шт.

18

495-81205

WASHER,32.54mm ID x 50.8mm OD x 1.7mm Thk

1-1/4 X 18 GAUGE NRMB

4шт.

19

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

20

495-81205

WASHER,32.54mm ID x 50.8mm OD x 1.7mm Thk

1-1/4 X 14 GAUGE NRMB

3шт.

21

700127580

SHIELD

1шт.

22

766287

HOSE,1/2" - 13 x 5"

DRAWBOLT

1шт.

23

6500433

BUSHING

SPACER

1шт.

24

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.
