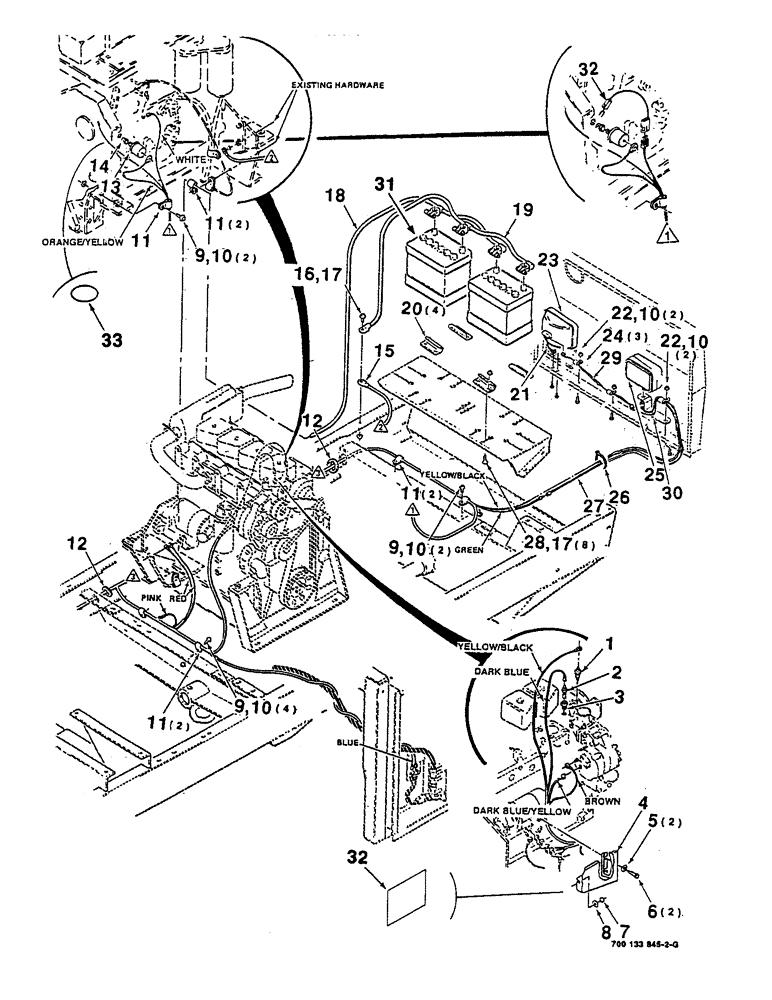

Запчасти Case IH 8825 (04-06) - ENGINE WIRING ASSEMBLY, REAR (04) - ELECTRICAL SYSTEMS

1

700708219

TEMPERATURE SENDER

SENDER - temperature

1шт.

2

700714587

SWITCH

- temperature

1шт.

3

221-88

REDUCER,Hex, 1/2" x 1/4" NPT

1/2 X 1/4 REDUCER BUSHING

1шт.

4

700117931

SHIELD

- starter (Includes decal)

1шт.

5

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

2шт.

6

7771843

SCREW

M12 X 1.75 X 16 C

2шт.

7

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

8

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 HARDENED PLAIN WASHER

1шт.

9

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

8шт.

10

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

10шт.

11

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

7шт.

12

248-21114

GROMMET,1 1/2" ID x 1 3/4" Groove Dia

2шт.

13

700708220

SWITCH

- pressure

1шт.

14

217-1032

ADAPTER,1/8" - 27 NPT x 1/8" - 27 NPT

BUSHING (S.N. CFH127101 thru CFH127201)

1шт.

700716238

ADAPTER

BUSHING (S.N. CFH127202 and later)

1шт.

15

722868

CABLE

WIRE - electrical

1шт.

16

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

1шт.

17

231-5146

FLANGE NUT,3/8"-16

9шт.

18

700705652

ELECTRIC CABLE

CABLE - battery, starter

1шт.

19

700705651

GROUND CABLE

CABLE - battery, ground

1шт.

20

6827695

CLAMP BRACKET

HOLDDOWN, battery

4шт.

21

700705124

WIRE

- electrical

1шт.

22

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

23

700705183

HEADLAMP

LIGHT

1шт.

24

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

3шт.

25

700714703

LIGHT

TAIL LIGHT

1шт.

26

869707C1

STRAP,368.3mm L

TIE - plastic

1шт.

27

700709474

WIRE HARNESS

HARNESS - wire (S.N. CFH127001 thru CFH127599)

1шт.

28

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

8шт.

29

700715648

ELECTRICAL WIRE

WIRE - electrical

1шт.

30

700133865

ANCHOR

MOUNT - tail light

1шт.

31

B24F72W

WET BATTERY

- 24F 600 Amp

2шт.

32

700718960

HARNESS

- wire (8825 only) (S.N. CFH127600 and later)

1шт.

33

700716061

O-RING

For Bushing (700716238)

1шт.

34

700715422

DECAL

- danger

1шт.
