(04-04) - SOLENOID AND MOUNTING ASSEMBLIES, SERIAL NUMBER CFH127600 AND LATER

Запчасти Case IH 8825 (04-04) - SOLENOID AND MOUNTING ASSEMBLIES, SERIAL NUMBER CFH127600 AND LATER (04) - ELECTRICAL SYSTEMS

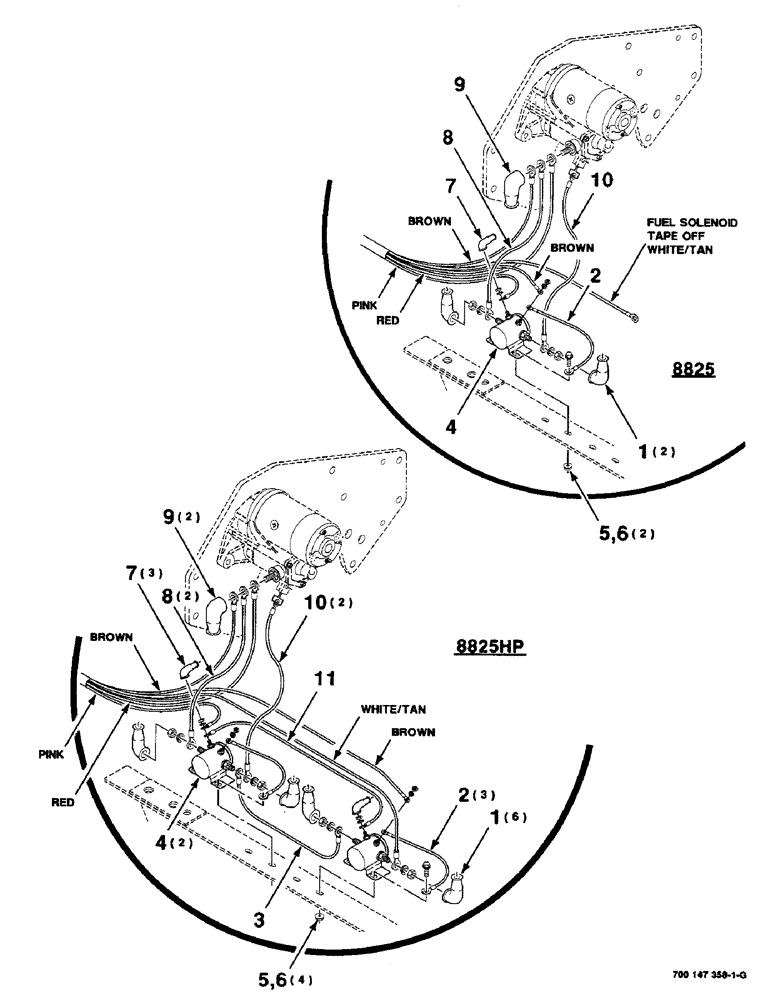

Схема запчастей Case IH 8825 - (04-04) - SOLENOID AND MOUNTING ASSEMBLIES, SERIAL NUMBER CFH127600 AND LATER (04) - ELECTRICAL SYSTEMS
7
11
1
3
6
9
4
1
9
8
8
2
10
4
6
5
7
5
10
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700707961

SHIELD

- terminal, electrical

8шт.

2

8722621

ELECTRICAL WIRE

WIRE - electrical

4шт.

3

700715406

ELECTRICAL WIRE

WIRE - electrical

1шт.

4

700715578

SOLENOID SWITCH

SOLENOID

3шт.

5

7883275

SCREW,Hex Washer, 1/4" - 20 x 3/4"

1/4-20 X 3/4 HWHMS

6шт.

6

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

6шт.

7

700707064

SHIELD

- terminal, electrical

4шт.

8

700707088

WIRE

- electrical

3шт.

9

700707065

SHIELD

- terminal, electrical

3шт.

10

700708568

ELECTRICAL WIRE

WIRE - electrical

3шт.

11

741272

ELECTRICAL WIRE

WIRE - electrical

1шт.
