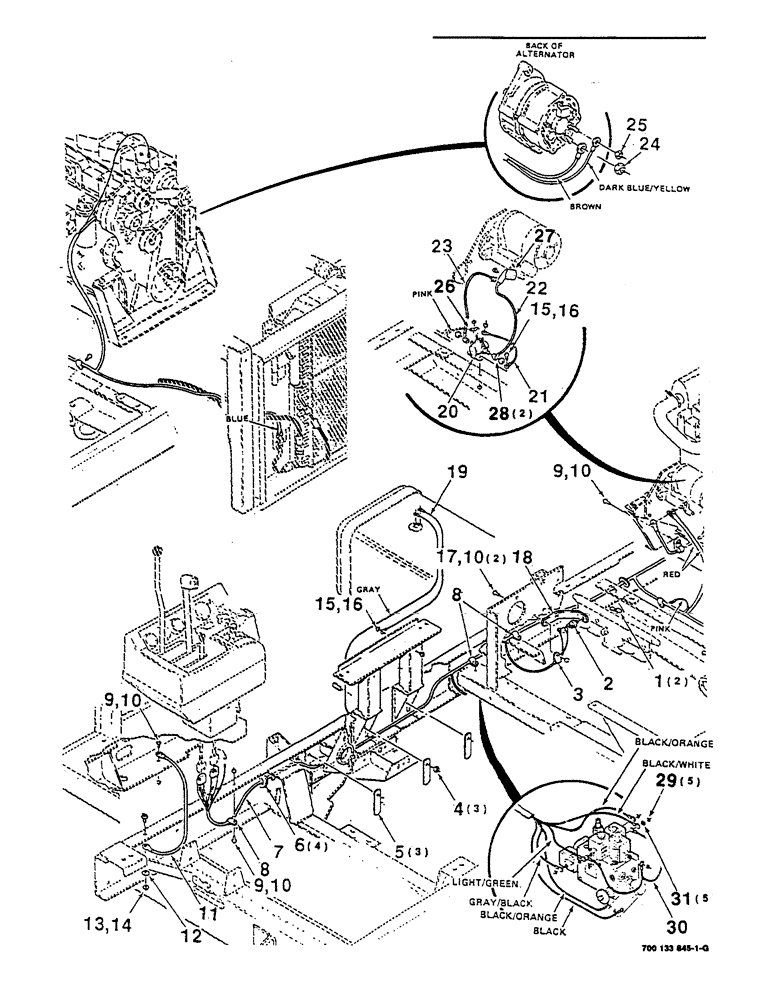

Запчасти Case IH 8825 (04-02) - ENGINE WIRING ASSEMBLY, FRONT (04) - ELECTRICAL SYSTEMS

1

41152

CLIP

2шт.

2

8025637

SWITCH

1шт.

3

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

1шт.

4

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

3шт.

5

700121358

STRAP

3шт.

6

248-21114

GROMMET,1 1/2" ID x 1 3/4" Groove Dia

4шт.

7

700708491

HARNESS

- wire (S.N. CFH127001 thru CFH127599)

1шт.

700717192

HARNESS

- wire (CFH127600 and later)

1шт.

8

756460

CLAMP

3шт.

9

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

3шт.

10

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

5шт.

11

722868

CABLE

WIRE - electrical

1шт.

12

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

1шт.

13

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

1шт.

14

231-5146

FLANGE NUT,3/8"-16

1шт.

15

7883275

SCREW,Hex Washer, 1/4" - 20 x 3/4"

1/4-20 X 3/4 HWHMS

2шт.

16

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

17

121-108

BOLT,Hex Flg, 5/16"-18 x 1 1/4", Serr

5/16-18 X 1 HWHMS

2шт.

18

700111843

ANGLE

- switch mounting

1шт.

19

700705659

WIRE HARNESS

WIRE - electrical

1шт.

20

8722639

SOLENOID SWITCH

SOLENOID (S.N. CFH127001 thru CFH127211)

1шт.

21

8722621

ELECTRICAL WIRE

WIRE - electrical

1шт.

22

700708568

ELECTRICAL WIRE

WIRE - electrical

1шт.

23

700707088

WIRE

- electrical

1шт.

24

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

25

825-1405

NUT,M5, Cl 8

1шт.

26

700707064

SHIELD

- term, electrical

1шт.

27

700707065

SHIELD

- term, electrical

1шт.

28

700707961

SHIELD

- term, electrical

2шт.

29

225-14210

NUT,#10-32

5шт.

30

700705693

WIRE HARNESS

WIRING - harness

1шт.

31

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

5шт.
