Запчасти Case IH 8825 (03-04) - FUEL TANK AND LINE ASSEMBLIES, 8825, SERIAL NUMBER CFH127600 AND LATER (03) - FUEL SYSTEM

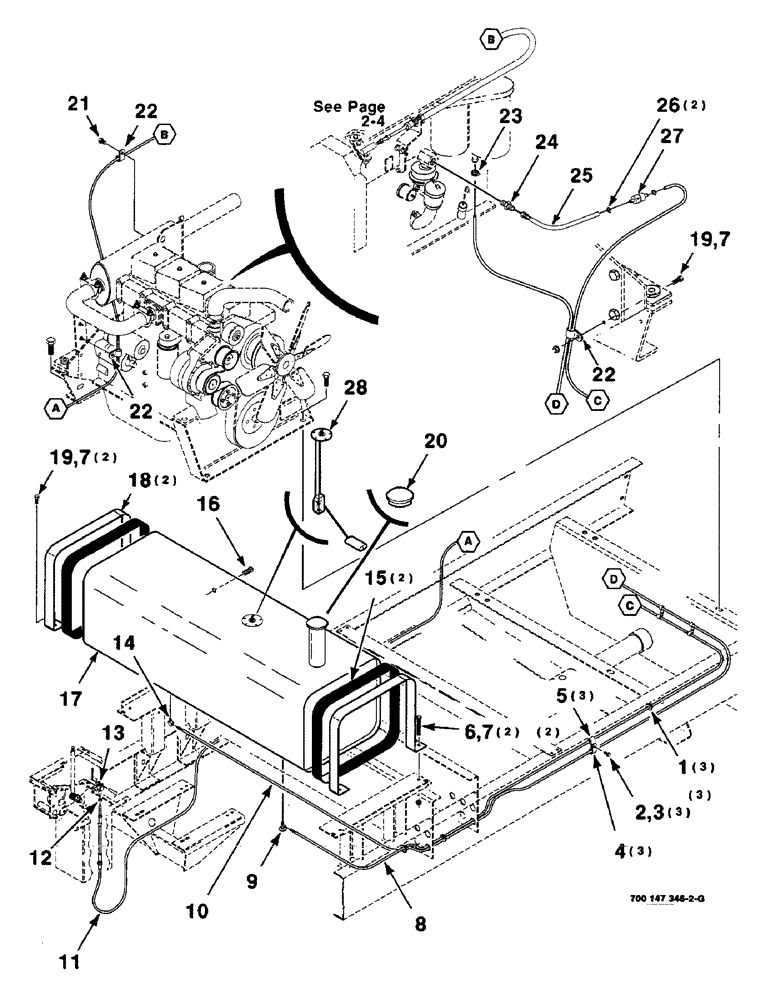

Схема запчастей Case IH 8825 - (03-04) - FUEL TANK AND LINE ASSEMBLIES, 8825, SERIAL NUMBER CFH127600 AND LATER (03) - FUEL SYSTEM
15
7
5
4
19
3
20
22
21
9
12
2
28
7
11
27
8
26
25
14
18
19
17
1
24
16
13
10
22
6
23
7
22

Артикул

Название

Примечание

Количество

1

248-21114

GROMMET,1 1/2" ID x 1 3/4" Groove Dia

3шт.

2

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

3шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

3шт.

4

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

3шт.

5

515-23238

CLAMP,15/16", Insul, 3/8" Bolt

3шт.

6

113-210

BOLT,Hex, 3/8" - 16 x 3", Gr 5, Full Thd

2шт.

7

231-5146

FLANGE NUT,3/8"-16

5шт.

8

700717141

FUEL HOSE,0.50" ID x 122.05", SAE 30R2, SAE J30, SAE J516, SAE J343

0.50" ID x 122.05", SAE 30R2, SAE J30, SAE J516, SAE J343

1шт.

9

700715390

VALVE

- shutoff

1шт.

10

700708199

LINE

HOSE - fuel line

1шт.

11

700708549

CABLE

CONTROL - throttle

1шт.

12

225-14210

NUT,#10-32

1шт.

13

356174C91

FORK

CLEVIS

1шт.

14

217-20

ELBOW,90 Degree, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

Street 90º, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

1шт.

15

700111015

LINER

- felt

2шт.

16

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

1/8-27 PIPE PLUG

1шт.

17

700705627

RESERVOIR, HYDRAULIC

TANK - fuel

1шт.

18

700111119

SECURING STRAP

STRAP - fuel tank

2шт.

19

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

20

700708089

CAP

- fuel tank

1шт.

21

7771843

SCREW

M12 X 1.75 X 16 C

1шт.

22

S95446

CLAMP,1 5/16", Insul, 1/2" Bolt

3шт.

23

7721020

HOSE CLAMP

CLAMP

1шт.

24

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

FITTING - Str

1шт.

25

700717139

FUEL HOSE,0.50" ID x 7.87", SAE 30R2 Type 1, SAE J30, SAE J343

0.50" ID x 7.87", SAE 30R2 Type 1, SAE J30, SAE J343

1шт.

26

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

CLAMP, HOSE, #06, .44/.78 Type F Worm

2шт.

27

194199A1

FUEL FILTER

FILTER - fuel

1шт.

28

700706468

SENDER UNIT

SENDER - fuel, level

1шт.

Выбрано товаров: 28
