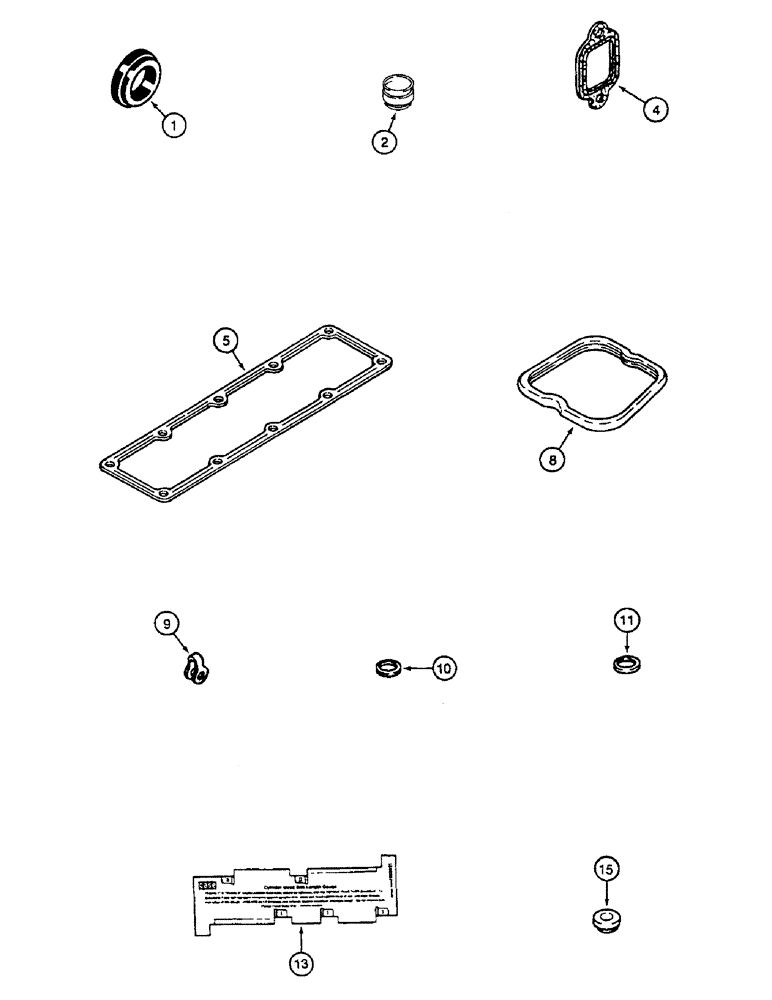

Запчасти Case IH 8825 (10-50) - GASKET KIT, VALVE GRIND, 4-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

A77914

SEAL PACKAGE

KIT - gasket, valve grind, Includes: Ref. 1 - 15

1шт.

When just the valve grind gasket kit is used, also order the required cylinder head gasket, item 2, page 2-21.

1шт.

1

J923331

GASKET

- thermostat housing

1шт.

2

J901097

SEAL

valve, intake, identified by color black with orange band

4шт.

4

J905443

MANIFOLD GASKET

- exhaust manifold

4шт.

5

J938153

MANIFOLD GASKET,0.8mm Thk

- intake manifold

1шт.

8

J930906

GASKET

SEAL - rocker arm cover

4шт.

9

J903380

SEAL

connector, fuel drain manifold tube

4шт.

10

J906659

SEAL

injector nozzle, 7 mm injector tip

4шт.

11

J909356

SEAL,Square, 1.68mm Thk x 15.6mm ID, -16

O-RING - sealing, Serial Range: body-nut

4шт.

13

J823921

GAUGE

cylinder head, bolt length

1шт.

15

J928406

ISOLATOR

noise, rocker arm cover

4шт.
