(09-10) - SERVO ASSEMBLY CONTROL, 700710787 SERVO ASSEMBLY, CONTROL COMPLETE

Запчасти Case IH 8825 (09-10) - SERVO ASSEMBLY CONTROL, 700710787 SERVO ASSEMBLY, CONTROL COMPLETE (09) - CHASSIS

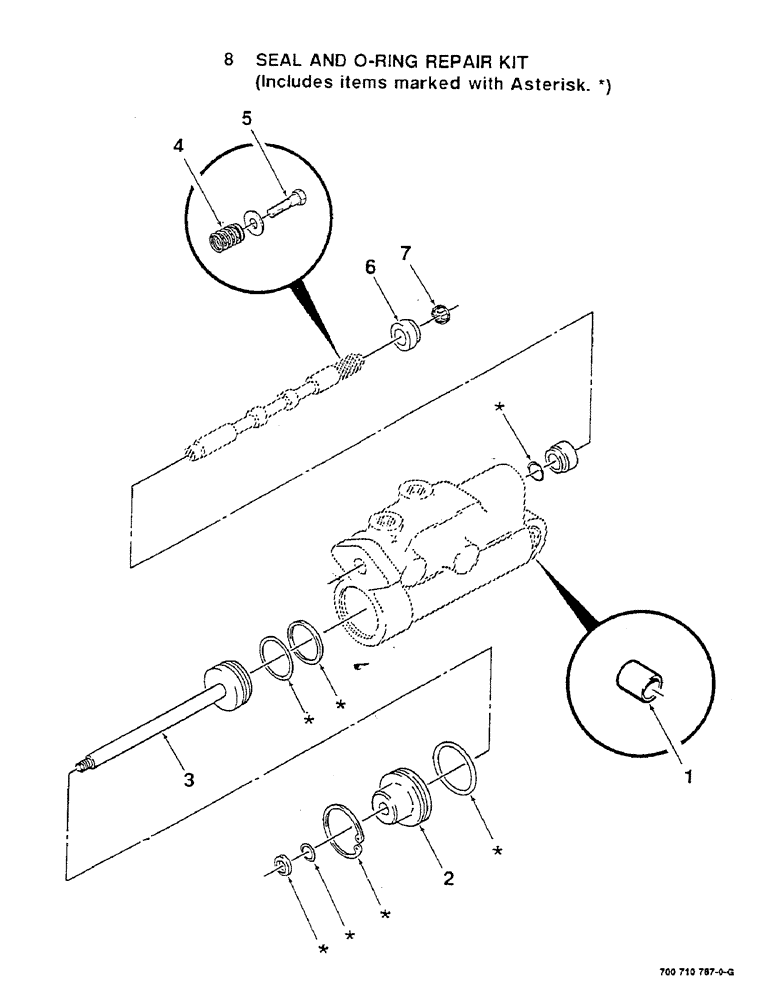

Схема запчастей Case IH 8825 - (09-10) - SERVO ASSEMBLY CONTROL, 700710787 SERVO ASSEMBLY, CONTROL COMPLETE (09) - CHASSIS
1
5
2
8
4
3
7
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

700710787

SERVO-CONTROL

SERVO ASSEMBLY - control complete

1шт.

1

700712103

GROOVED BUSHING

PIVOT BUSHING

1шт.

2

700711029

BEARING

1шт.

3

700711030

PISTON

AND ROD

1шт.

4

700712104

SPRING

1шт.

5

674491R1

SCREW

SPOOL SCREW

1шт.

6

H375667

CAP

1шт.

7

8730517

BUTTON

- insert

1шт.

8

700711031

SEAL KIT

SEAL AND O-RING REPAIR KIT, Includes items in art marked with Asterisk

2шт.
