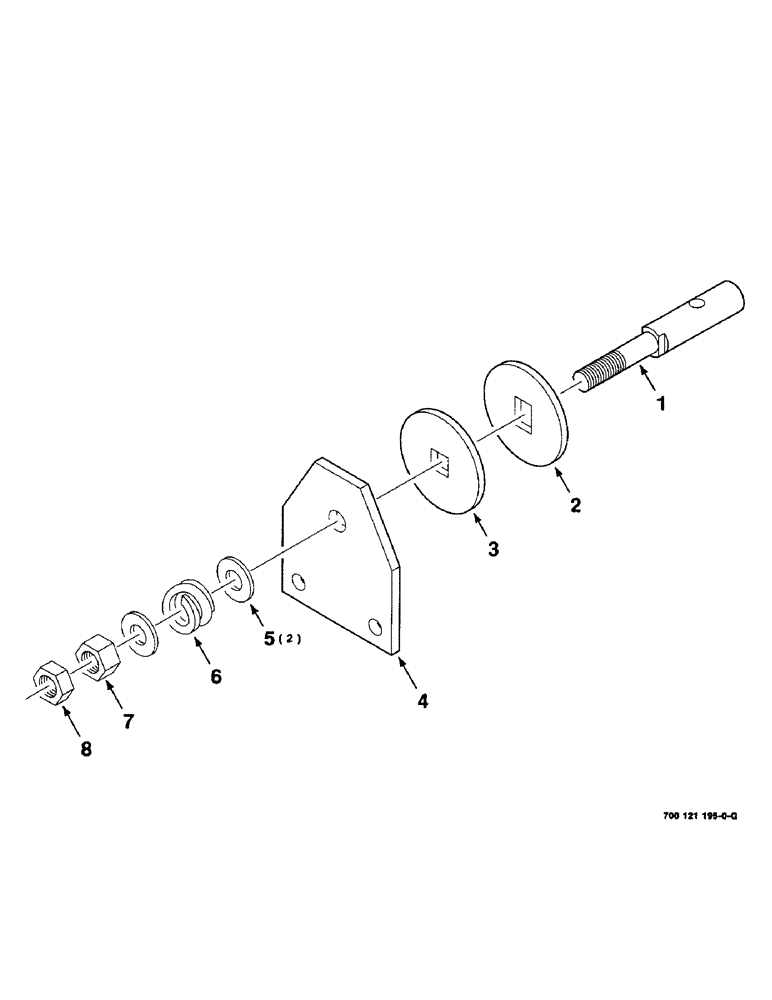

Запчасти Case IH 8825 (07-44) - TENSIONER ASSEMBLY (09) - CHASSIS

1

700121198

SHAFT

1шт.

2

700121197

WASHER

1шт.

3

700711026

DISC

- friction

1шт.

4

700121196

LARGE PLATE

PLATE - mounting

1шт.

5

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 HARDENED PLAIN WASHER

2шт.

6

58024

SPRING

- compression

1шт.

7

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

8

425-148

JAM NUT,Jam, 1/2"-13, G5

1шт.
