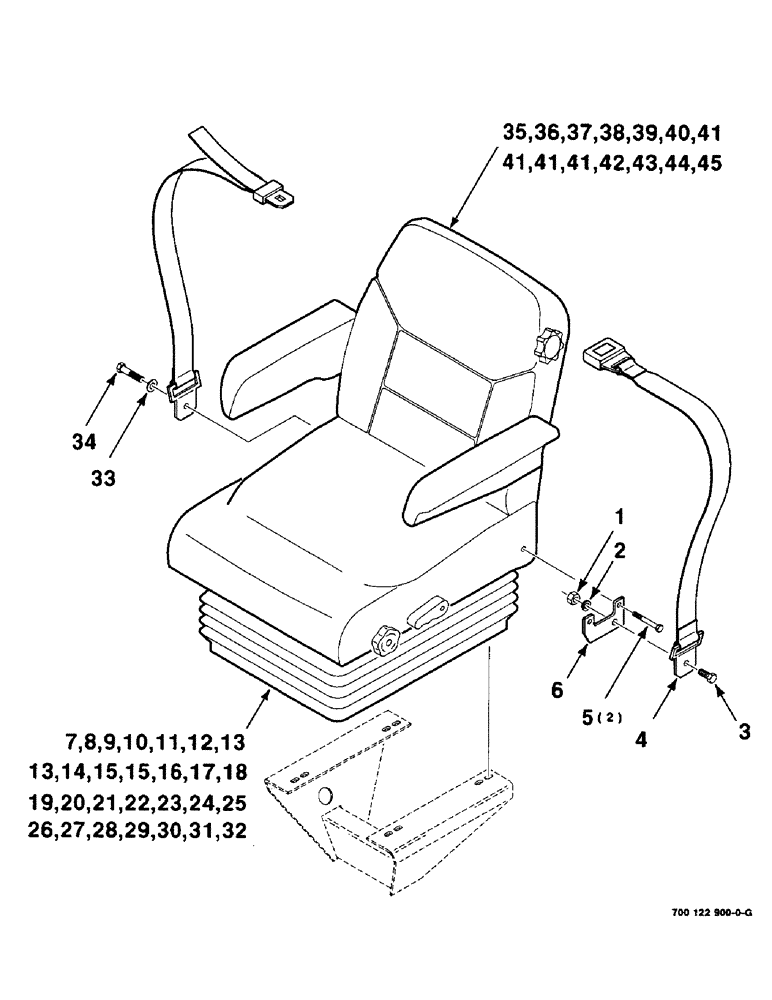

Запчасти Case IH 8825 (07-24) - SEAT ASSEMBLY, 8825, 700122900 SEAT BELT ASSEMBLY, COMPLETE (09) - CHASSIS

700122900

SEAT

WITH SEAT BELTS - complete

1шт.

1

425-117

NUT,7/16"-20, G5

1шт.

2

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

3

414-716

BOLT,Hex, 7/16" - 20 x 1", Gr 5

1шт.

4

741033

SAFETY BELT

SEAT BELT ASSEMBLY

1шт.

5

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

2шт.

6

1975957C1

BRACKET

- seatbelt, left

1шт.

7

241190A1

PACKAGE

SUSPENSION (Includes items 8 thru 33)

1шт.

8

1990647C2

KIT

BOOT SUSPENSION

1шт.

9

132872A1

KIT

- boot, button service

1шт.

10

1344249C1

KIT

KIT - roller/tube brg service

1шт.

11

A45501

BUSHING,0.504" ID x 0.87" OD x 1.417"

BEARING

1шт.

12

123968A2

PACKAGE

KIT - extension spring

1шт.

13

1981793C1

BUMPER

2шт.

14

A49529

SHAFT

- bearing

1шт.

15

700712450

PIN

3/8 X 1.56 PIN - special

2шт.

16

123967A1

PACKAGE

CAM

1шт.

17

123967A1

PACKAGE

CAM FOLLOWER

1шт.

18

1999901C1

KIT

SPRING - height adjustment

1шт.

19

119000A1

SHAFT

LATCH

1шт.

20

F13537

THRUST BEARING

1шт.

21

123969A1

SEAT ACCESSORY

Kit - Service, Knob weight adj.

1шт.

22

1987116C2

PACKAGE

KIT - replacement, weight Adj.

1шт.

23

700711537

WASHER

- plastic

1шт.

24

1987116C2

PACKAGE

THRUST RACE

2шт.

25

138-155

LOCK PIN,5/16" x 1 1/4", Slotted

PIN, 5/16" x 1 1/4", Slotted

1шт.

26

38-31212

PIN,3/16" x 3/4", Coiled

1шт.

27

138-73

LOCK PIN,5/32" x 3/4", Slotted

PIN, 5/32" x 3/4", Slotted

1шт.

28

123967A1

PACKAGE

CAM FOLLOWER

1шт.

29

1344250C2

KIT

- shock service

1шт.

30

700712454

SPACER

4шт.

31

1999901C1

KIT

- spring & weight Adj.-Service

1шт.

32

124149A2

HANDLE

KIT - service, weight Adj. knob

1шт.

33

496-21047

WASHER

7/16 HARDENED PLAIN WASHER

1шт.

34

414-732

BOLT,Hex, 7/16" - 20 x 2", Gr 5

7/16-20 X 2 C

1шт.

35

243700A1

SPARE PART SET

SEAT W/BACKREST (Includes items 37 thru 46)

1шт.

36

243701A1

CUSHION, SEAT

SEAT CUSHION KIT

1шт.

37

1981820C2

PACKAGE, REPAIR

COVER - kit backrest

1шт.

38

1981816C2

PACKAGE,SERVICE

PAD KIT - backrest

1шт.

39

242321A1

CUSHION ASSY.

SEAT CUSHION - cloth, narrow

1шт.

40

1343826C2

SHAFT ASSY.

CAM AND SHAFT

1шт.

41

38-31016

PIN,5/32" x 1", Coiled

4шт.

42

1999691C1

PACKAGE,SERVICE

KNOB - seat tilt

1шт.

43

1999691C1

PACKAGE,SERVICE

KIT - service back tilt

1шт.

44

1999691C1

PACKAGE,SERVICE

KNOT - Lumbar

1шт.

45

1999693C1

KIT

- christmas tree clip, bracket

1шт.

46

700719053

CUSHION

ASM

1шт.

47

700719055

CUSHION

BACKREST

1шт.

48

182991A1

LARGE PLATE

PLATE - adapter, seat (Not shown)

1шт.

49

1344248C1

SLIDE

W/HANDLE (Not shown)

1шт.

50

700709441

SLIDE

(Not shown)

1шт.

51

700719057

KIT

- knob and levers

1шт.
