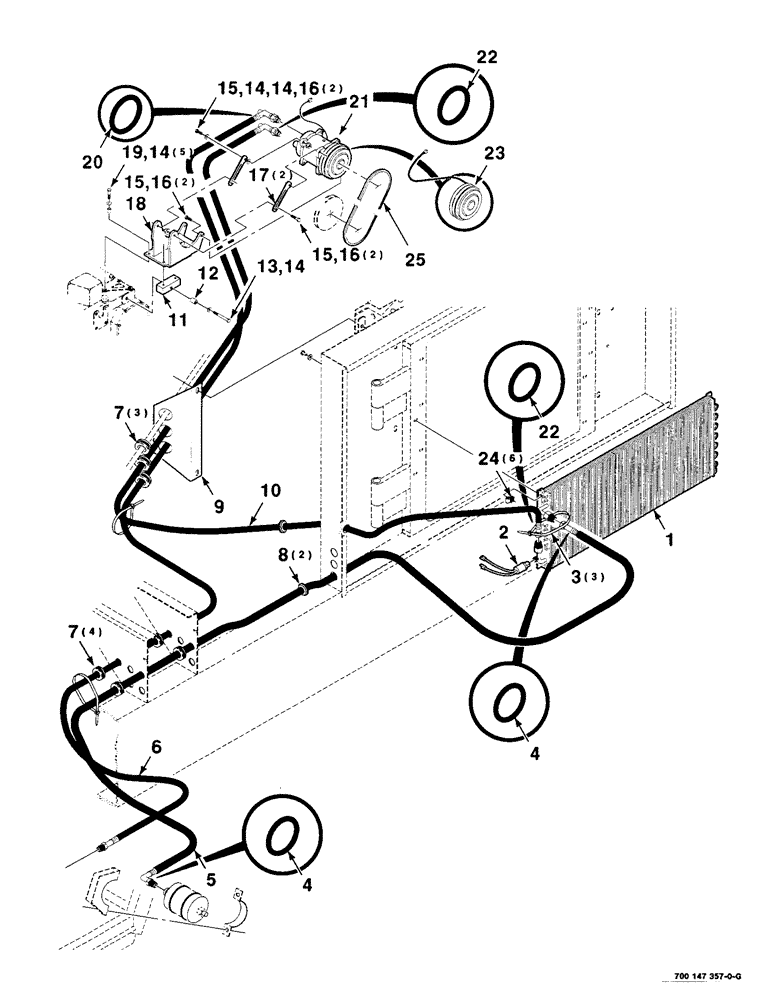

Запчасти Case IH 8825 (07-18) - CONDENSOR-COMPRESSOR ASSEMBLY, SERIAL NUMBER CFH127600 AND LATER (09) - CHASSIS

1

700712701

CONDENSER

CONDENSOR

1шт.

2

700713314

SWITCH

- high pressure

1шт.

3

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

3шт.

4

700712717

O-RING

2шт.

5

700712707

HOSE

ASSEMBLY (Includes item 4)

1шт.

6

700713319

HOSE

ASSEMBLY (Includes item 20)

1шт.

7

248-21110

GROMMET,1" ID x 1 3/8" Groove Dia

7шт.

8

8027179

GROMMET

2шт.

9

700149592

SUPPORT

- hose

1шт.

10

700713288

HOSE

ASSEMBLY (Includes item 22)

1шт.

11

700133962

BLOCK

SUPPORT - compressor

1шт.

12

6176002

SPACER

1шт.

13

700715074

BOLT

M10 X 1.5 X 80 C 10.9 BF

1шт.

15

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

6шт.

16

700711876

LOCK NUT

M10 X 1.5 HFTLN

6шт.

17

700147401

STRAP

- adjustment

2шт.

18

700133957

SUPPORT

WA - compressor

1шт.

19

700715073

BOLT

M10 X 1.5 X 40 C 10.9 BF

5шт.

20

31-1809

O-RING

1шт.

21

1999755C2

COMPRESSOR

1шт.

21

86993462R

REMAN-COMPRESSOR

8825, 8825HP both SERIAL NUMBER CFH127600 AND LATER; Reman For New P/N 1999755C2

1шт.

21

86993462C

CORE-COMPRESSOR

Return Part Number

1шт.

21

48017123R

REMAN-A/C COMP KIT

Reman A/C Compressor Kit

1шт.

21

48017123C

REMAN-A/C COMP KIT

Return Part Number

1шт.

21

1999755C3R

REMAN-A/C COMPRESSOR

Inc.- 8 Mounting Holes, 2 Groove Pulley, For Use w/HFC134A Refrigerant

1шт.

21

1999755C3C

CORE-COMPRESSOR

Return Part Number

1шт.

22

700712718

O-RING

2шт.

23

135324A1

CLUTCH

ASSEMBLY - compressor

1шт.

24

74807

NUT

1/4-20 SPEED NUT

6шт.

25

855528

V-BELT,0.50" W x 51.00" L

1шт.

14

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

10шт.
