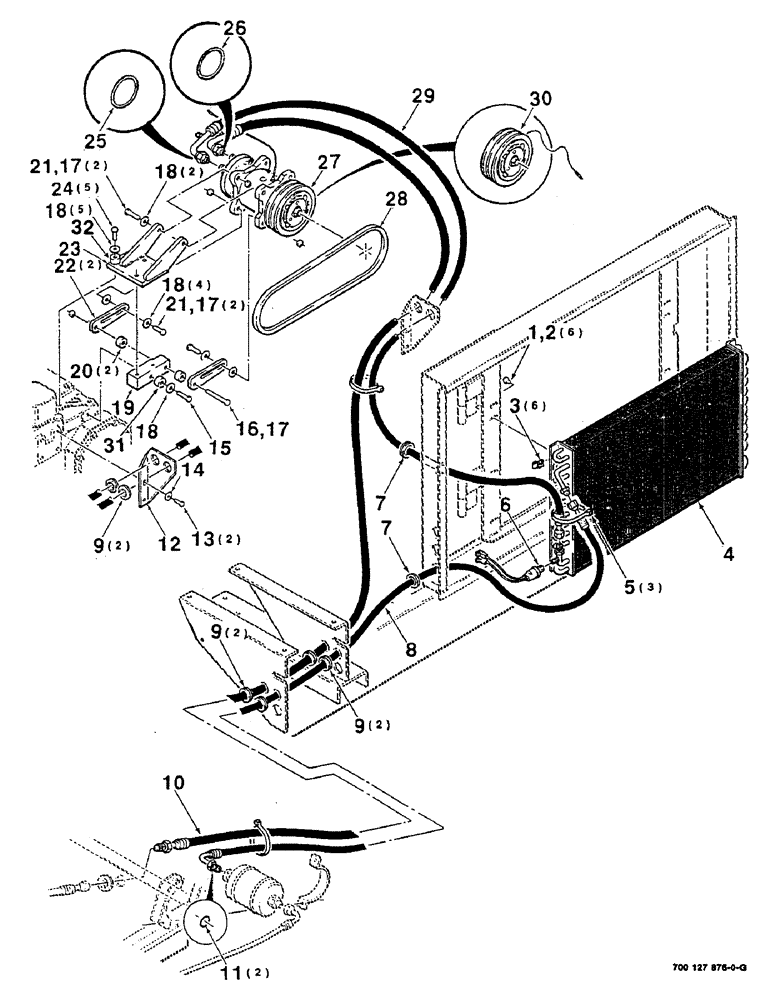

Запчасти Case IH 8825 (07-16) - CONDENSOR-COMPRESSOR ASSEMBLY, SERIAL NUMBER CFH127001 THRU CFH127599 (09) - CHASSIS

1

700707343

SCREW

1/4-20 X 5/8 C

6шт.

2

70900816

WASHER

1/4 HARDENED PLAIN WASHER

6шт.

3

074807

1/4-20 SPEED NUT

6шт.

4

700712701

CONDENSER

CONDENSOR

1шт.

5

722470

MOUNTING CLIP

TIE - nylon

3шт.

6

700713314

SWITCH

- pressure

1шт.

7

8027179

GROMMET

- hose

2шт.

8

700712707

HOSE

- assembly (Includes item 11)

1шт.

9

8827172

GROMMET

6шт.

10

700713319

HOSE

- assembly (Includes item 26)

1шт.

11

700712717

O-RING

2шт.

12

700117926

SUPPORT

- mounting, hose

1шт.

13

700708358

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

M8 X 1.25 X 16 C

2шт.

14

1703321

WASHER,M8 x 16 x 1.6

M8 P

1шт.

15

700715074

BOLT

M10 X 1.5 X 80 C 10.9

1шт.

16

700708764

BOLT,Hex, M10 x 1.5 x 95mm, Cl 8.8

M10 X 1.5 X 95 C

1шт.

17

832-41310

NUT,M10 x 1.5, Cl 10

NUT, LOCK, M10 x 1.5, Cl 10

5шт.

18

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

M10 P

12шт.

19

700119650

SUPPORT

- compressor

1шт.

20

6606594

BUSHING

2шт.

21

7702319

BOLT

M10 X 1.5 X 35 C

4шт.

22

700119652

STRAP

- adjustment

2шт.

23

700119647

MOUNTING PARTS

SUPPORT - compressor

1шт.

24

700715073

BOLT

M10 X 1.5 X 40 C 10.9

5шт.

25

700712718

O-RING

1шт.

26

700712719

O-RING

1шт.

27

700713317

COMPRESSOR

(Includes item 30)

1шт.

86993462R

REMAN-COMPRESSOR

8825, 8825HP both SERIAL NUMBER CFH127001 THRU CFH127599; Reman For New P/N 700713317

1шт.

86993462C

CORE-COMPRESSOR

Return Number

1шт.

48017123R

REMAN-A/C COMP KIT

Reman A/C Compressor Kit

1шт.

48017123C

REMAN-A/C COMP KIT

Return Number

1шт.

700713317C

CORE-COMPRESSOR

Return Number

1шт.

28

700708217

V-BELT,1169.70 mm L

1шт.

29

700713288

HOSE

ASSEMBLY (Includes item 25)

1шт.

30

700713455

CLUTCH

ASSEMBLY - compressor

1шт.

31

6176002

SPACER

1шт.

32

6856512

SPACER

1шт.
