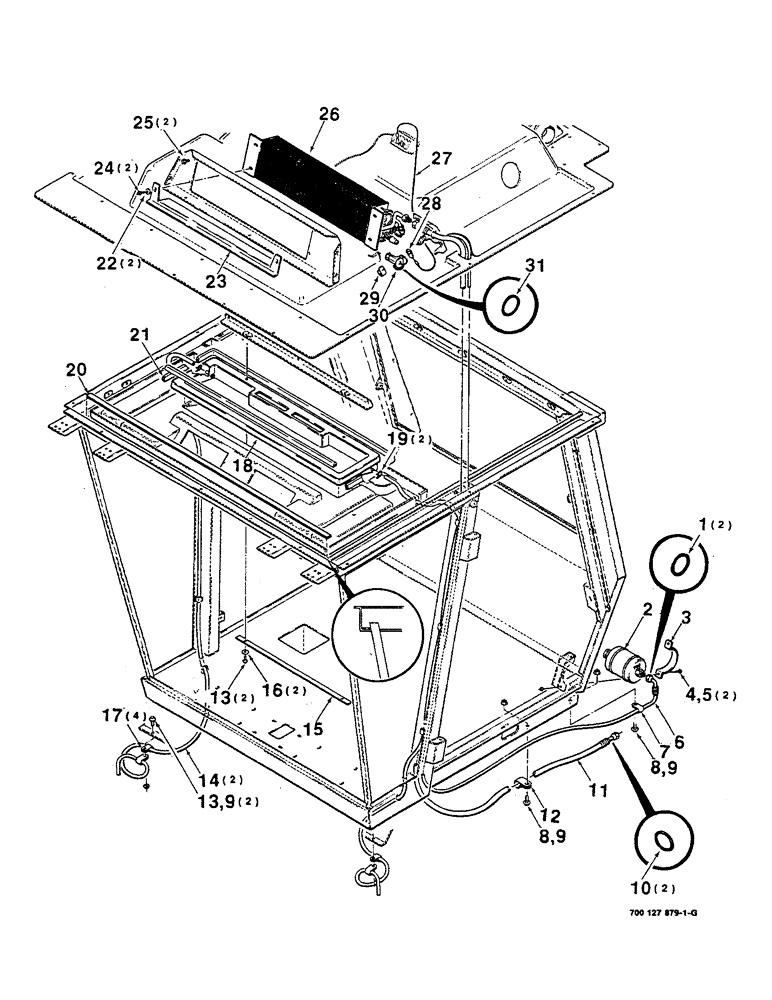

Запчасти Case IH 8825 (07-14) - AIR CONDITIONER EVAPORATOR AND DRYER ASSEMBLY (09) - CHASSIS

1

700712717

O-RING

2шт.

2

700705099

RECEIVER-DRYER

RECEIVER - dryer

1шт.

3

6804587

CLAMP

- dryer

1шт.

4

163-14

SCREW,Hex Wshr Hd, 1/4" - 20 x 1"

1/4-20 X 1 HWHMS

2шт.

5

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

6

700712706

HOSE

ASSEMBLY (Includes item 1)

1шт.

7

756460

CLAMP

1шт.

8

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

2шт.

9

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

4шт.

10

31-1809

O-RING

2шт.

11

700712716

HOSE

ASSEMBLY (Includes item 10)

1шт.

12

515-23254

CLAMP,1", Insul, 3/8" Bolt

1шт.

13

121-108

BOLT,Hex Flg, 5/16"-18 x 1 1/4", Serr

5/16-18 X 1 HWHMS

4шт.

14

700110137

HOSE,0.50" ID x 156.10",

Drain 0.50" ID x 156.10"

2шт.

15

700115437

STRAP

1шт.

16

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

2шт.

17

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

Line 5/8", Insul, 3/8" Bolt

4шт.

18

700119893

PAN

- drain

1шт.

19

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP, HOSE, #12, 0.69/1.25 Type F Worm

2шт.

20

6805055

SEAL

(12 Foot bulk)

1шт.

21

700705092

SEAL

(12 Foot bulk)

1шт.

22

496-11028

WASHER,9/32" x 5/8" x .065, HDN

1/4 HARDENED PLAIN WASHER

2шт.

23

700120672

PAN

- drain, front

1шт.

24

7883275

SCREW,Hex Washer, 1/4" - 20 x 3/4"

1/4-20 X 3/4 HWHMS

2шт.

25

121-3

SERRATED BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

26

700712700

HEATER ASSY.

CORE - evaporator

1шт.

27

700706889

WIRE

- electrical

1шт.

28

700706904

PRESSURE SWITCH

SWITCH - low pressure

1шт.

29

8020398

CLAMP

- spring

1шт.

30

700711760

VALVE

- expansion (Includes item 31)

1шт.

31

700712771

O-RING

1шт.
