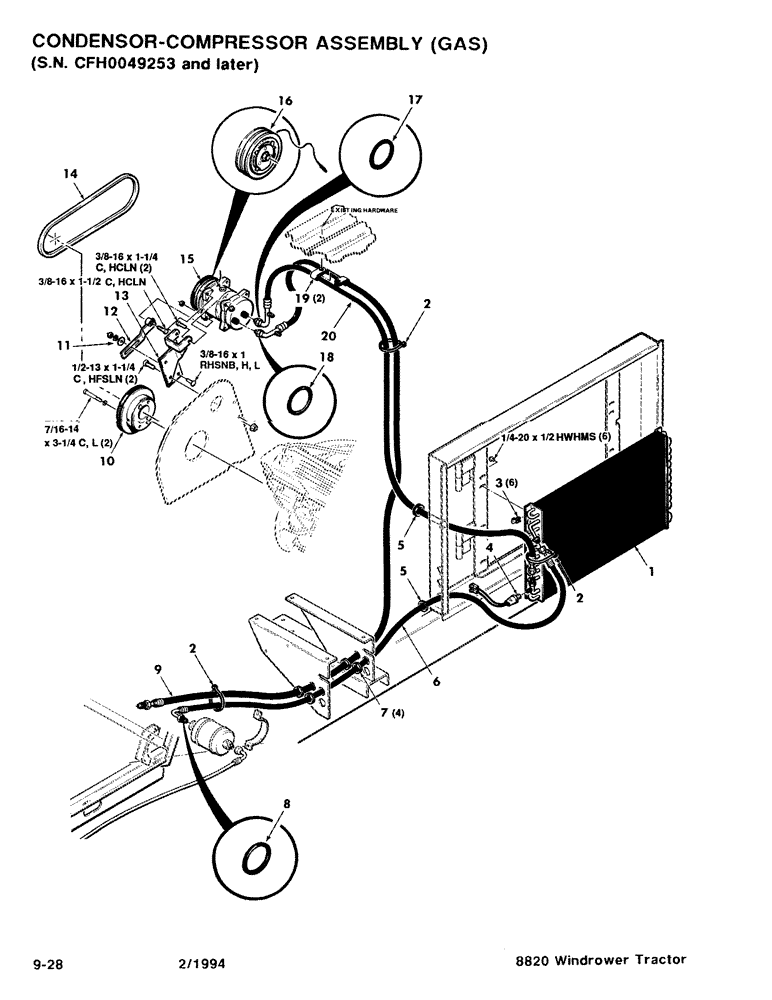

Запчасти Case IH 8820 (9-28) - CONDENSOR-COMPRESSOR ASSEMBLY, GAS, SERIAL NUMBER CFH0049253 AND LATER (09) - CHASSIS/ATTACHMENTS

1

700712701

CONDENSER

Condensor

1шт.

2

722470

MOUNTING CLIP

Tie - Cable

3шт.

3

74807

NUT

1/4-20 Speed Nut

6шт.

4

7722929

SWITCH

- Pressure

1шт.

5

8027179

GROMMET

2шт.

6

700712707

HOSE

Assembly (Includes Item 8)

1шт.

7

8827172

GROMMET

4шт.

8

700712717

O-RING

1шт.

9

700712714

HOSE

Assembly (Includes Item 17)

1шт.

10

6606644

SHEAVE

1шт.

11

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

3/8 Hardened Plain Washer

1шт.

12

6606578

STRAP

- Mounting

1шт.

13

6606602

BRACKET

Mount - Compressor

1шт.

14

56408

V-BELT,1221.74 mm L

1221.74 mm L

1шт.

15

700712705

COMPRESSOR

1шт.

15

1977959C1R

REMAN-A/C COMPRESSOR

Reman For New PN 700712705

1шт.

15

1977959C1C

CORE-A/C COMPRESSOR

Return Number

1шт.

16

700709771

CLUTCH

Assembly

1шт.

17

700712719

O-RING

1шт.

18

700712718

O-RING

2шт.

19

756486

CLAMP

2шт.

18

700712712

HOSE

Assembly (Includes Item 18)

1шт.

702035

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5, Full Thd

3/8-16 x 1-1/4 C

2шт.

703603

SCREW

3/8-16 x 1-1/2 C

1шт.

7701188

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-1/4 C

2шт.

7703846

SCREW

7/16-20 x 3-1/4 C

2шт.

700047

BOLT

3/8-16 x 1 RHSNB

1шт.

7883267

BOLT,Hex, 1/4" - 20 x 1/2", Gr 120M

1/4-20 x 1/2 HWHMS

6шт.

704023

NUT,3/8"-16, G5

3/8-16 H

1шт.

704635

NUT

3/8-16 HCLN

3шт.

704254

NUT,Flg, USR, 1/2"-13

1/2-13 HFSLN

2шт.

705038

CONTROL VALVE

3/8"

1шт.

700702206

LOCK WASHER

7/16 L

2шт.
