Запчасти Case IH 8820 (9-24) - AIR CONDITIONER EVAPORATOR AND DRYER ASSEMBLY, SERIAL NUMBER CHF0049253 AND LATER (09) - CHASSIS/ATTACHMENTS

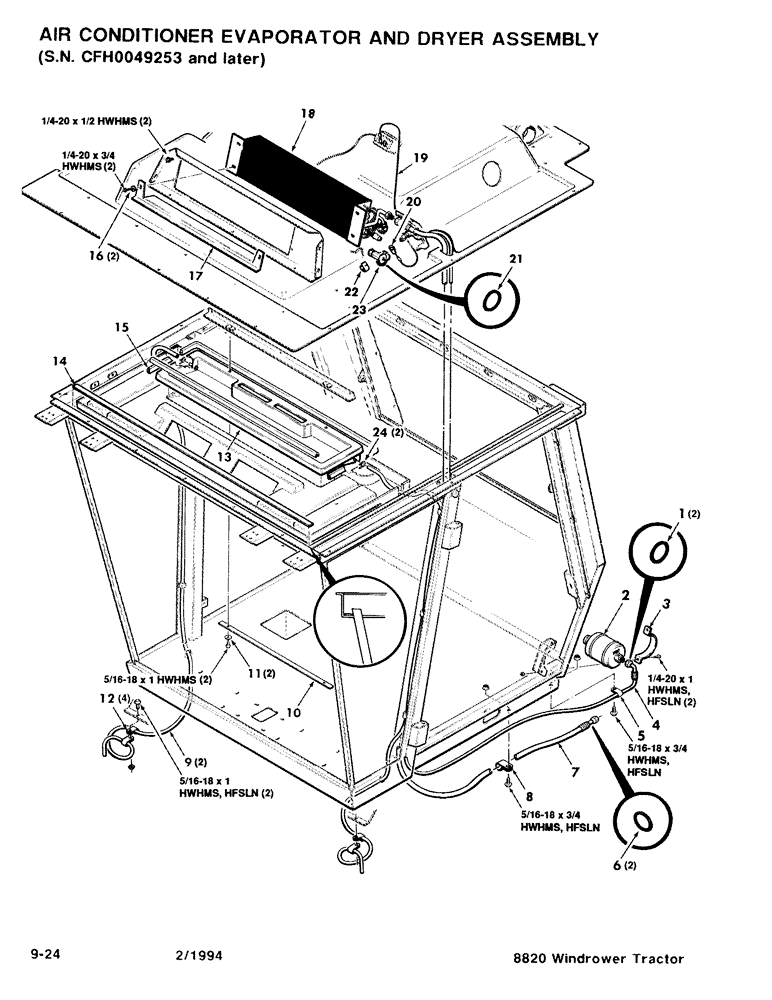

Схема запчастей Case IH 8820 - (9-24) - AIR CONDITIONER EVAPORATOR AND DRYER ASSEMBLY, SERIAL NUMBER CHF0049253 AND LATER (09) - CHASSIS/ATTACHMENTS
14
18
5
11
7
16
13
21
24
17
15
22
6
23
1
4
19
9
10
12
8
20
3
2

Артикул

Название

Примечание

Количество

1

700712717

O-RING

2шт.

2

700705099

RECEIVER-DRYER

Receiver- Dryer

1шт.

3

6804587

CLAMP

- Dryer

1шт.

4

700712706

HOSE

Assembly (Includes Item 1)

1шт.

5

756460

CLAMP

1шт.

6

700712719

O-RING

2шт.

7

700712716

HOSE

Assembly (Includes Item 6)

1шт.

8

7898737

CLAMP

1шт.

9

700110137

HOSE,0.50" ID x 156.10",

Drain 0.50" ID x 156.10"

2шт.

10

700115437

STRAP

1шт.

11

705525

WASHER

5/16 Hardened Plain Washer

2шт.

12

755744

CLAMP

- Line

4шт.

13

700119893

PAN

- Drain

1шт.

14

6805055

SEAL

(Bulk 12 Ft. Length)

1шт.

15

700110139

SEAL

Seal (Bulk 12 Ft. Length)

1шт.

16

705517

WASHER

1/4 Hardened Plain Washer

4шт.

17

700120672

PAN

- Drain, Front

1шт.

18

700712700

HEATER ASSY.

Core - Evaporator

1шт.

19

700706889

WIRE

- Electrical

1шт.

20

700706904

PRESSURE SWITCH

Switch - Low Pressure

1шт.

21

700712771

O-RING

1шт.

22

8020398

CLAMP

- Spring

1шт.

23

700712704

VALVE

- Expansion (Includes Item 21)

1шт.

24

700710487

CLAMP

2шт.

7883267

BOLT,Hex, 1/4" - 20 x 1/2", Gr 120M

1/4-20 x 1/2 HWHMS

2шт.

7883275

SCREW,Hex Washer, 1/4" - 20 x 3/4"

1/4-20 x 3/4 HWHMS

2шт.

7883283

SCREW,Hex Washer, 1/4" - 20 x 1"

1/4-20 x 1 HWHMS

2шт.

7883325

BOLT,Hex, 5/16" - 18 x 3/4", Gr 120M

5/16-18 x 3/4 HWHMS

2шт.

7883333

BOLT,Hex, 5/16" - 18 x 1", Gr 120M

5/16-18 x 1 HWHMS

4шт.

704221

NUT

1/4-20 HFSLN

2шт.

704239

FRONT AXLE

5/16-18 HFSLN

4шт.

Выбрано товаров: 31
