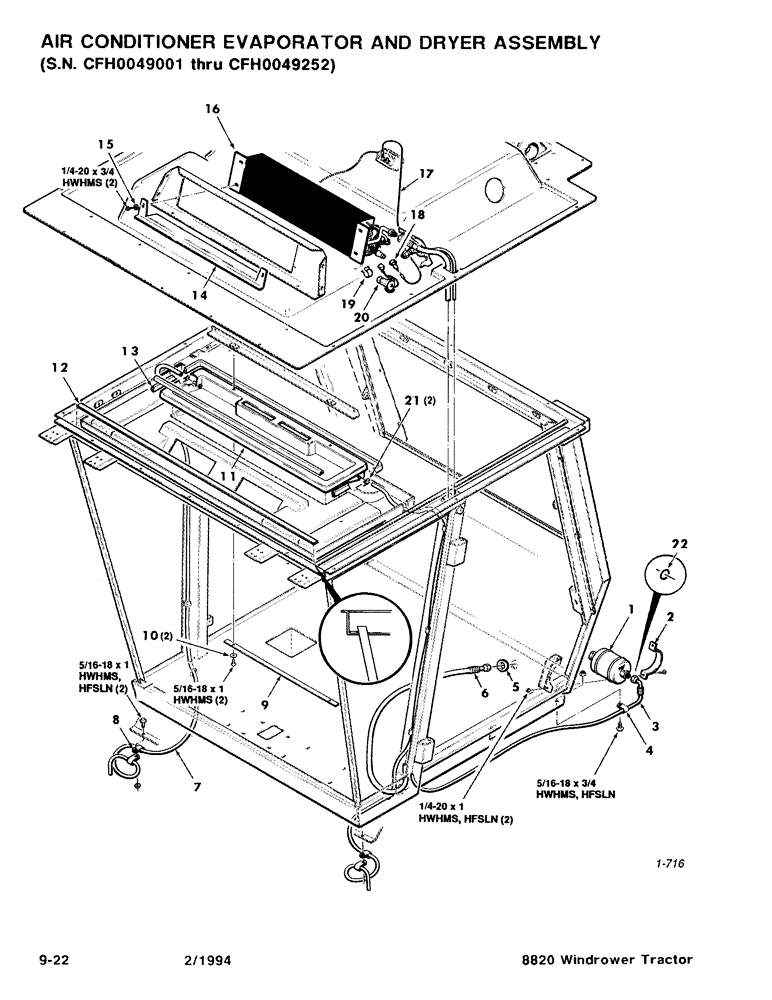

Запчасти Case IH 8820 (9-22) - AIR CONDITIONER EVAPORATOR AND DRYER ASSEMBLY, SERIAL NUMBER CFH0049001 THRU CHF0049252 (09) - CHASSIS/ATTACHMENTS

1

700705099

RECEIVER-DRYER

Receiver - Dryer

1шт.

2

6804587

CLAMP

- Dryer

1шт.

3

700705094

FLEXIBLE HOSE

Hose Assembly (Includes Item 22)

1шт.

4

756460

CLAMP

1шт.

5

827758

GROMMET

1шт.

6

700705098

FLEXIBLE HOSE

Hose

1шт.

7

700110137

HOSE,0.50" ID x 156.10",

Drain 0.50" ID x 156.10"

2шт.

8

755744

CLAMP

- Hose

4шт.

9

700115437

STRAP

1шт.

10

705525

WASHER

5/16 Hardened Plain Washer

2шт.

11

700119893

PAN

- Drain

1шт.

12

6805055

SEAL

(Bulk 12-Ft. Length)

1шт.

13

700110139

SEAL

Seal (Bulk 12 Ft. Length)

1шт.

14

700120672

PAN

- Drain, Front

1шт.

15

705517

WASHER

1/4 Hardened Plain Washer

2шт.

16

700706905

EVAPORATOR

Core - Evaporator

1шт.

17

700706889

WIRE

- Electrical

1шт.

18

700706904

PRESSURE SWITCH

Switch - Low Pressure

1шт.

19

8020398

CLAMP

- Spring

1шт.

20

7022304

VALVE

- Expansion

1шт.

21

700710487

CLAMP

- Wire

2шт.

22

7744063

O-RING

1шт.

7883267

BOLT,Hex, 1/4" - 20 x 1/2", Gr 120M

1/4-20 x 1/2 HWHMS

4шт.

7883283

SCREW,Hex Washer, 1/4" - 20 x 1"

1/4-20 x 1 HWHMS

2шт.

7883325

BOLT,Hex, 5/16" - 18 x 3/4", Gr 120M

5/16-18 x 3/4 HWHMS

1шт.

7883333

BOLT,Hex, 5/16" - 18 x 1", Gr 120M

5/16-18 x 1 HWHMS

4шт.
