Запчасти Case IH 8820 (9-12) - CAB FRAME ASSEMBLY (09) - CHASSIS/ATTACHMENTS

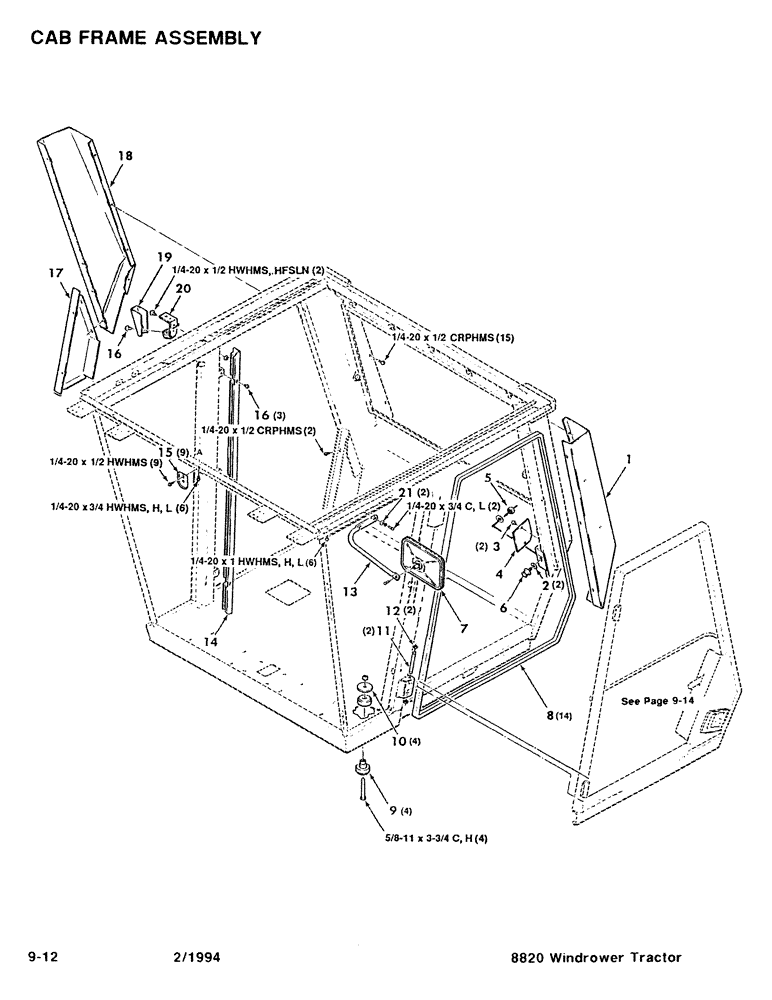

Схема запчастей Case IH 8820 - (9-12) - CAB FRAME ASSEMBLY (09) - CHASSIS/ATTACHMENTS
5
4
18
9
3
8
2
7
16
15
21
16
20
17
14
10
6
13
19
1

Артикул

Название

Примечание

Количество

1

700110102

SHIELD

- Rear, Left

1шт.

2

705731

WASHER,7/16", SAE

7/16 Narrow Plain Washer

2шт.

3

772525

WASHER

5/16-18 x 1/2 HWHTCTS

2шт.

4

700110105

COVER PLATE

Plate - Cover

1шт.

5

704080

NUT,7/16"-14, G5

7/16-14 H

1шт.

6

700704801

BOLT,Striker, 7/16" - 14 x 1.715"

Striker Bolt

1шт.

7

700708969

REAR VIEW MIRROR

Mirror - Rear View

1шт.

8

700709973

DOOR SEAL

Seal - Door Bulk - 15 Foot

14шт.

9

700704796

RUBBER MOUNTING

Mount - Rubber

4шт.

10

235820

WASHER

4шт.

11

700110095

PIN

- Hinge

2шт.

12

700704795

CIRCLIP

E-Ring

4шт.

13

700117840

SUPPORT

Mounting - Mirror

1шт.

14

700110109

SHIELD

- Post, Right

1шт.

15

700122540

CLIP

- Grass Retainer

9шт.

16

701607

BRACKET

1/4-20 x 1/2 HWHTCTS

4шт.

17

700110107

PANEL

- Lower, Right

1шт.

18

700110099

SHIELD

- Rear, Right

1шт.

19

700110151

MOUNTING PLATE

Cover - Mounting, Antenna

1шт.

20

700110150

MOUNTING PLATE

Mounting - Antenna

1шт.

21

700709601

WASHER,1/4"

1/4 Wide Plain Washer

2шт.

7703457

HYD CONNECTOR,Hex, 1/4" - 20 x 3/4", Gr 5

1/4-20 X 3/4 C

2шт.

70924136

SCREW

5/8-11 X 3-3/4 C

4шт.

7883267

BOLT,Hex, 1/4" - 20 x 1/2", Gr 120M

1/4-20 X 1/2 HWHMS

11шт.

7883275

SCREW,Hex Washer, 1/4" - 20 x 3/4"

1/4-20 X 3/4 HWHMS

8шт.

7883283

SCREW,Hex Washer, 1/4" - 20 x 1"

1/4-20 X 1 HWHMS

6шт.

700705158

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

1/4-20 x 1/2 CRPHMS

17шт.

704007

NUT,1/4"-20, G5

1/4-20 H

14шт.

704130

NUT,5/8"-11, G5

5/8-11 H

4шт.

523282

SERRATED NUT,Flg, USR, 1/4"-20

1/4-20 HFSLN

2шт.

705012

LOCK WASHER

1/4"

16шт.

Выбрано товаров: 31
