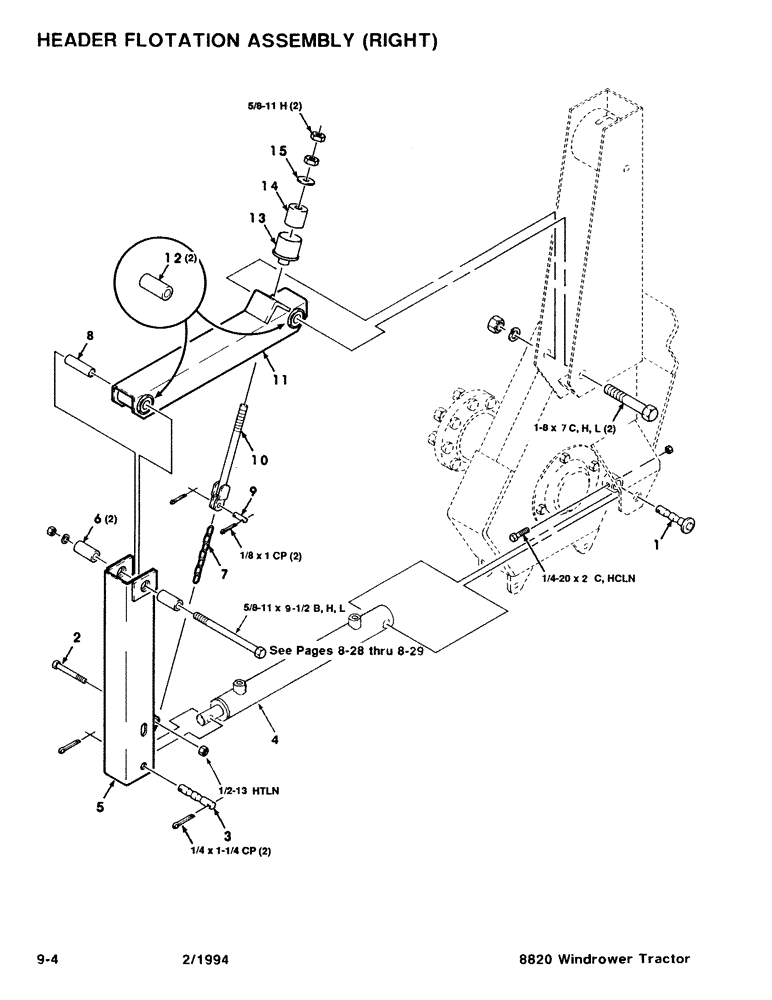

Запчасти Case IH 8820 (9-04) - HEADER FLOTATION ASSEMBLY, RIGHT (09) - CHASSIS/ATTACHMENTS

1

700116427

PIN

1шт.

2

700705669

BOLT,Hex, 1/2" - 13 x 4", Gr 8

1/2-13 x 4 C GR8 NP

1шт.

3

700116438

PIN,19.05mm OD x 122mm L

- Cylinder, Front

1шт.

4

700709806

HYDRAULIC CYLINDER

Cylinder - Hydraulic, Flotation (2-1/2 IN) (S.N. CFH0049001 thru 0049277)

1шт.

700712926

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 406.4mm Stroke

- Hydraulic, Flotation (2-1/4 IN) (S.N. CFH0049278 and Later)

1шт.

5

700116447

SUPPORT

Channel

1шт.

6

6619282

BUSHING,17.6mm ID x 31.8mm OD x 66mm L

2шт.

7

700116453

CHAIN

- Machine

1шт.

8

700116991

SPACER

1шт.

9

700118485

PIN

1шт.

10

700116363

ROD

- Lever, Adjustment

1шт.

11

700116441

SUPPORT

Channel

1шт.

12

700707405

RUBBER BUSHING

Bushing - Rubber

2шт.

13

700116435

STOP

Tube

1шт.

14

700708565

SPACER

Ring - Rubber

1шт.

15

6251169

WASHER

1шт.

7701485

BOLT,Hex, 1/4" - 20 x 2", Gr 5

1/4-20 X 2 C

1шт.

7773484

BOLT,Hex, 5/8" - 11 x 9 1/2", Gr 5

5/8-11 X 9-1/2 B

1шт.

7883234

BOLT

1-8 X 7 C

1шт.

704130

NUT,5/8"-11, G5

5/8-11 H

3шт.

70912908

NUT

1-8 H

1шт.

704783

SHIM,.020" Thk

1/4-20 HCLN GR/B

1шт.

704858

LOCK NUT

1/2-13 HTLN GR/B

1шт.

705061

PLUG

5/8"

1шт.

705137

LOCK WASHER,1"

1шт.
