Запчасти Case IH 8820 (8-29) - HYDRAULIC CYLINDER ASSEMBLY, FLOTATION, SERIAL NUMBER CFH0049278 AND LATER (08) - HYDRAULICS

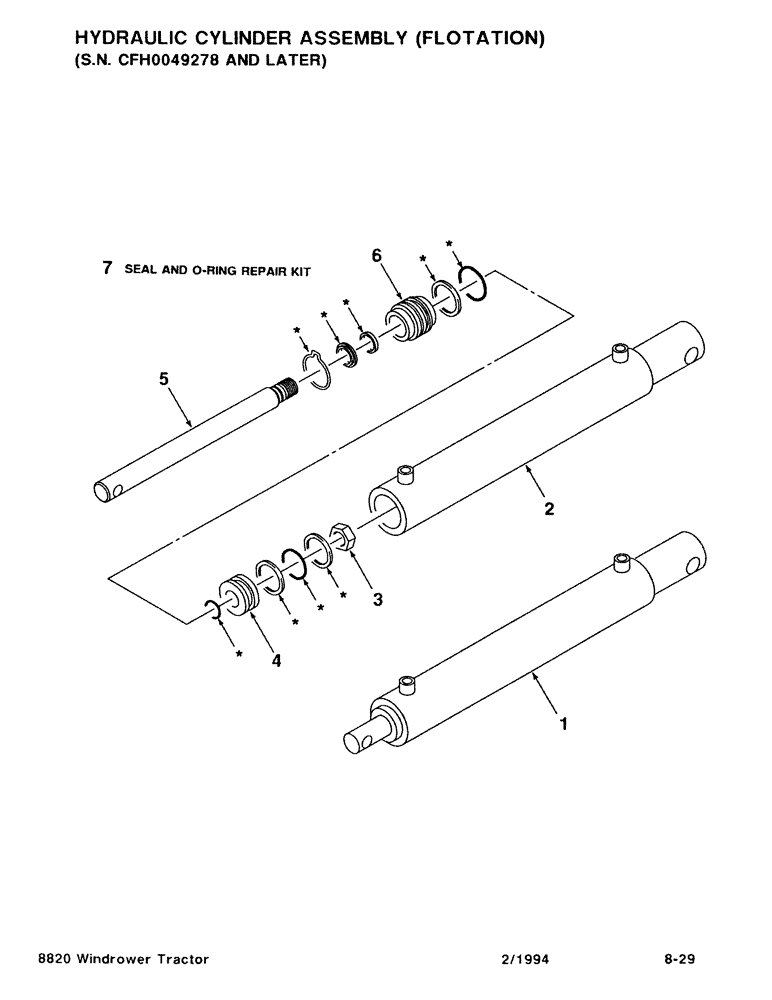

Схема запчастей Case IH 8820 - (8-29) - HYDRAULIC CYLINDER ASSEMBLY, FLOTATION, SERIAL NUMBER CFH0049278 AND LATER (08) - HYDRAULICS
1
5
2
3
6
7
4

Артикул

Название

Примечание

Количество

1

700712926

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 406.4mm Stroke

- Hydraulic, Complete 2.75 IN ID x 16 IN Stroke

1шт.

2

700712929

BODY

Barrel

1шт.

3

774315

NUT

7/8-14 Locknut

1шт.

4

700710829

PISTON

1шт.

5

700712945

ROD

1шт.

6

700712942

GUIDE

1шт.

7

700712930

SEAL

and O-Ring Repair Kit Includes: Ref. marked with asterisks on the art.

1шт.

Выбрано товаров: 7
