Запчасти Case IH 8820 (8-28) - HYDRAULIC CYLINDER ASSEMBLY, FLOTATION, SERIAL NUMBER CFH0049001 THRU 0049277 (08) - HYDRAULICS

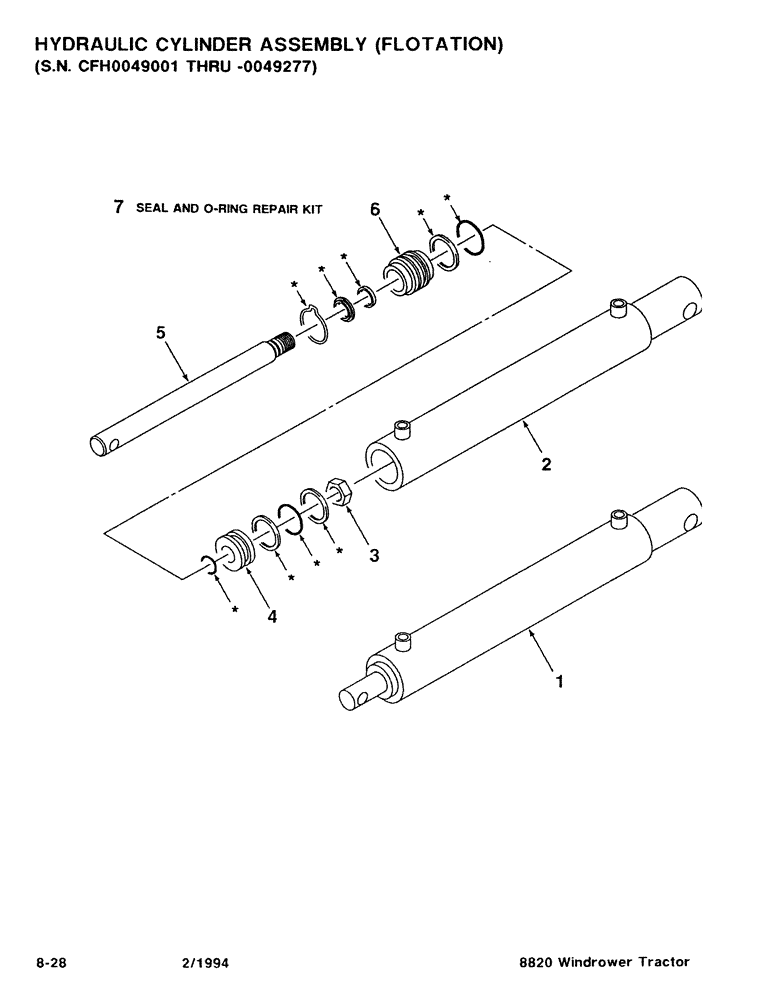

Схема запчастей Case IH 8820 - (8-28) - HYDRAULIC CYLINDER ASSEMBLY, FLOTATION, SERIAL NUMBER CFH0049001 THRU 0049277 (08) - HYDRAULICS
6
1
7
5
3
2
4

Артикул

Название

Примечание

Количество

1

700709806

HYDRAULIC CYLINDER

Cylinder, - Hydraulic, Complete 2.5 IN ID X 16 IN Stroke

1шт.

2

700710423

TUBE ASSY.

Barrel

1шт.

3

774315

NUT

7/8-14 Locknut

1шт.

4

700710421

PISTON

1шт.

5

700710422

PISTON ROD

Rod

1шт.

6

700710425

GUIDE

1шт.

7

700710424

SEAL KIT

Seal and O-Ring Repair Kit Includes: Ref. marked with asterisks on the art.

1шт.

Выбрано товаров: 7
