Запчасти Case IH 8820 (8-26) - TRANSMISSION VANE PUMP ASSEMBLY, HYDROSTATIC (08) - HYDRAULICS

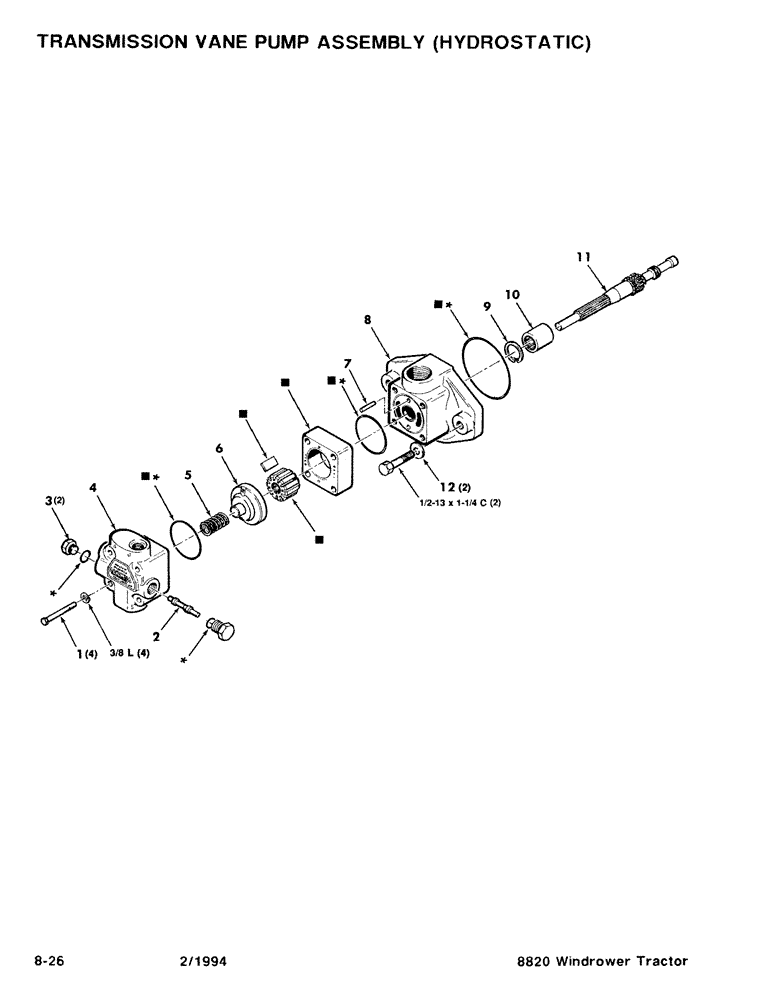

Схема запчастей Case IH 8820 - (8-26) - TRANSMISSION VANE PUMP ASSEMBLY, HYDROSTATIC (08) - HYDRAULICS
12
4
5
6
*
8
*
10
*
7
3
11
*
1
9
*
2

Артикул

Название

Примечание

Количество

8733651

PUMP

Vane Pump - Hydrostatic, Complete

1шт.

1

7071921

BOLT,Hex, 3/8" - 16 x 3 3/4", Gr 8

3/8-16 x 3-3/4 C Grade 8

4шт.

2

8730319

PISTON

- Shuttle

1шт.

3

736223

PLUG

2шт.

4

8730293

COVER

1шт.

5

7033764

SPRING

1шт.

6

7033756

PLATE

- Pressure

1шт.

7

7039167

PIN

- Dowel

2шт.

8

8730335

BODY

1шт.

9

8730285

COVER

Retaining Ring

1шт.

10

8730525

COUPLING

1шт.

11

8730343

SHAFT

- Pump, not included with 8733651

1шт.

12

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 Hardened Plain Washer

2шт.

771543

FUEL INJECTION PUMP,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-1/4 C

2шт.

705038

CONTROL VALVE

3/8"

4шт.

8730277

KIT

Cartridge Kit (Includes items marked with a Square in art.)

1шт.

700705452

SEAL KIT

Includes: Ref. marked with asterisks on the art.

1шт.

Выбрано товаров: 17
