Запчасти Case IH 8820 (8-22) - TRANSMISSION MOTOR ASSEMBLY, HYDROSTATIC (08) - HYDRAULICS

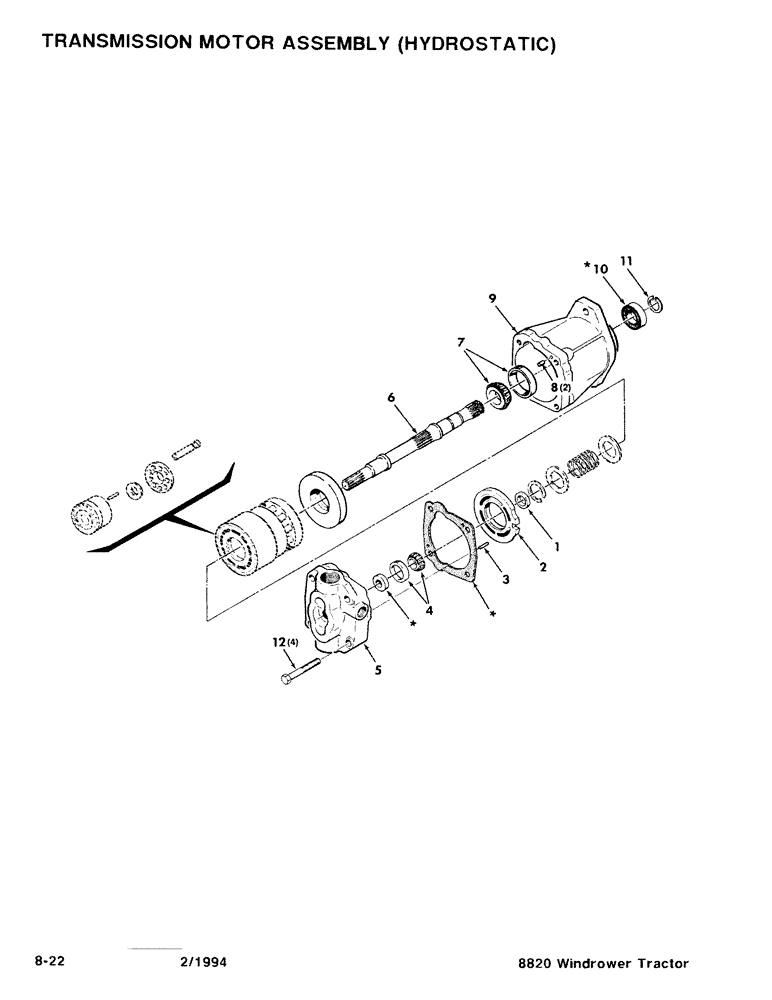

Схема запчастей Case IH 8820 - (8-22) - TRANSMISSION MOTOR ASSEMBLY, HYDROSTATIC (08) - HYDRAULICS
*
11
12
8
6
3
1
7
*
9
5
4
2
*10

Артикул

Название

Примечание

Количество

8842874

HYDROSTATIC MOTOR

Complete

1шт.

1

8730145

KIT

Spacer - Bearing, Kit

1шт.

2

8730426

PLATE

- Wafer

1шт.

3

8730178

PIN

Roll Pin

1шт.

4

8730046

BEARING SET

Bearing Set

1шт.

5

8730418

VALVE

Block - Valve

1шт.

6

8730459

SHAFT

1шт.

If looking for retaining ring that fits on splined end see Figure 8-8 Ref.3 P/N 730127

1шт.

7

8730053

BEARING SET

Bearing Set

1шт.

8

8730467

PIN

Dowel Pin

2шт.

9

8730475

HOUSING

1шт.

10

700705451

SEAL

Seal - Shaft

1шт.

11

740712

OIL SEAL

Retaining Ring

1шт.

12

8732620

CYLINDER

Stud

4шт.

700705529

SEAL KIT

Seal Repair Kit Includes: Ref. marked with asterisks on the art.

1шт.

Выбрано товаров: 15
