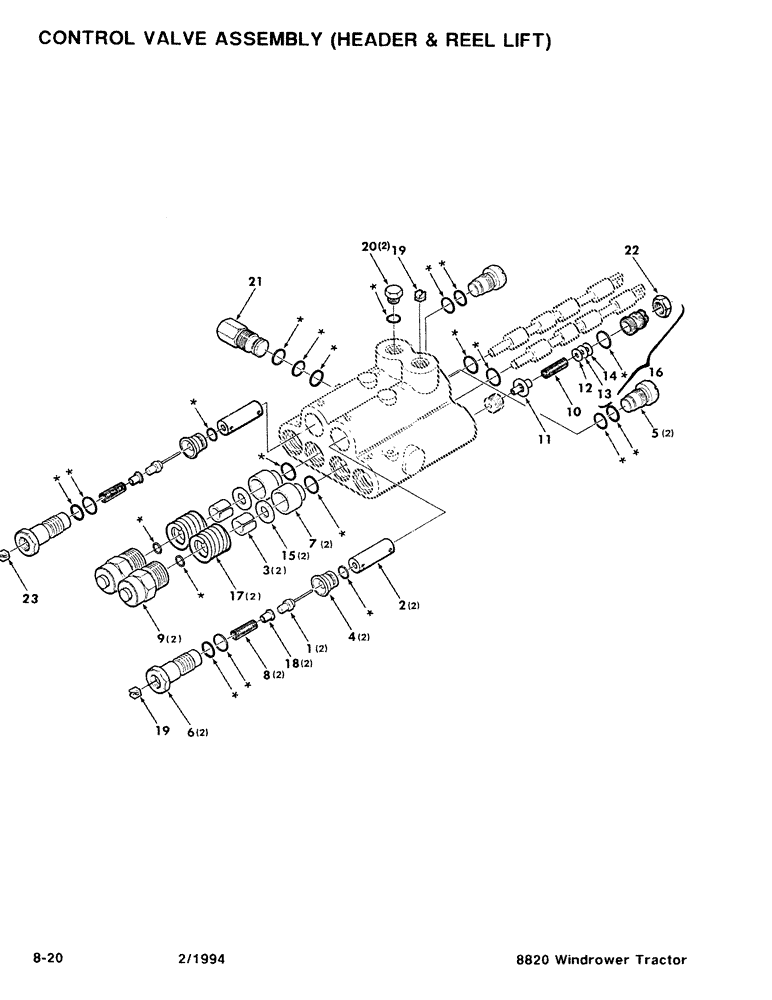

Запчасти Case IH 8820 (8-20) - CONTROL VALVE ASSEMBLY, HEADER & REEL LIFT (08) - HYDRAULICS

700707512

CONTROL VALVE

Complete

1шт.

1

737437

VALVE POPPET

Poppet

2шт.

2

700708287

PISTON

Plunger

2шт.

3

700708288

SPACER

2шт.

4

H636951

SEAT

2шт.

5

2700247

PLUG

Assembly

2шт.

6

700708290

WIRE CONNECTOR

Plug Assembly

2шт.

If looking for retaining ring that fits on splined end see Figure 8-8 Ref.3 P/N 730127

1шт.

7

738369

BUSHING

2шт.

8

700708291

SPRING

2шт.

9

700708292

CAP

Assembly

2шт.

10

700708293

SPRING

1шт.

11

731679

VALVE POPPET

Poppet

1шт.

12

730820

SHIM

.010 Thick

1шт.

13

732651

SHIM

.015 Thick

1шт.

14

737031

SHIM

.039 Thick

1шт.

15

700708294

WASHER

Washer

2шт.

16

700708295

BUTTON

Plug Assembly

1шт.

17

700708298

SPRING

2шт.

18

700708299

INSERT

Eyelet

2шт.

19

7037815

ORIFICE

.081

2шт.

20

7746456

PLUG

Assembly

2шт.

21

2700249

PLUG

Assembly

1шт.

22

700708296

NUT

1шт.

23

700710778

ORIFICE

1шт.

700708300

SEAL KIT

Seal Repair Kit Includes: Ref. marked with asterisks on the art.

1шт.
