Запчасти Case IH 8820 (8-18) - HYDRAULIC PUMP ASSEMBLY, VARIABLE (08) - HYDRAULICS

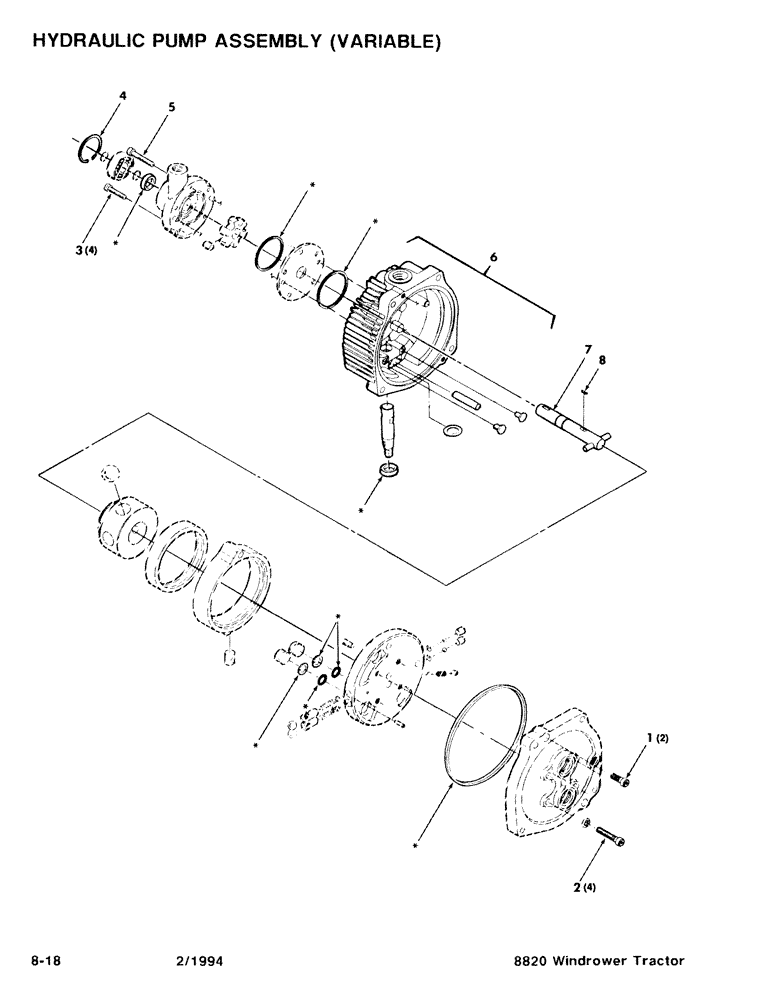

Схема запчастей Case IH 8820 - (8-18) - HYDRAULIC PUMP ASSEMBLY, VARIABLE (08) - HYDRAULICS
8
*
*
*
3
*
7
1
5
4
*
6
*
*
2

Артикул

Название

Примечание

Количество

700709792

HYDRAULIC PUMP

Pump - Variable, Complete

1шт.

700709792R

REMAN-HYD PUMP

8820

1шт.

700709792C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

7702236

SCREW

5/16-18 x 3/4 HSHCS

2шт.

2

7773245

BOLT,5/16" - 18 x 1", Full Thd

5/16-18 x 1 HSHCS

4шт.

3

71019

HEX SOC SCREW,5/16"-18 x 1 1/4"

5/16-18 x 1-1/4 HSHCS Grade 8

4шт.

4

700710690

LOCKING RING

Ring - Retaining

1шт.

5

7701667

HEX SOC SCREW,5/16" - 18 x 1 3/4"

5/16-18 x 1-3/4 HSHCS

1шт.

6

700710625

COVER

(with Control Shaft)

1шт.

7

700710701

SHAFT

- Input

1шт.

8

700710700

PIN

- Drive

1шт.

700710692

SEAL KIT

Seal and O-Ring Repair Kit Includes: Ref. marked with asterisks on the art.

1шт.

Выбрано товаров: 12
