Запчасти Case IH 8820 (8-16) - HEADER DRIVE PUMP ASSEMBLY (08) - HYDRAULICS

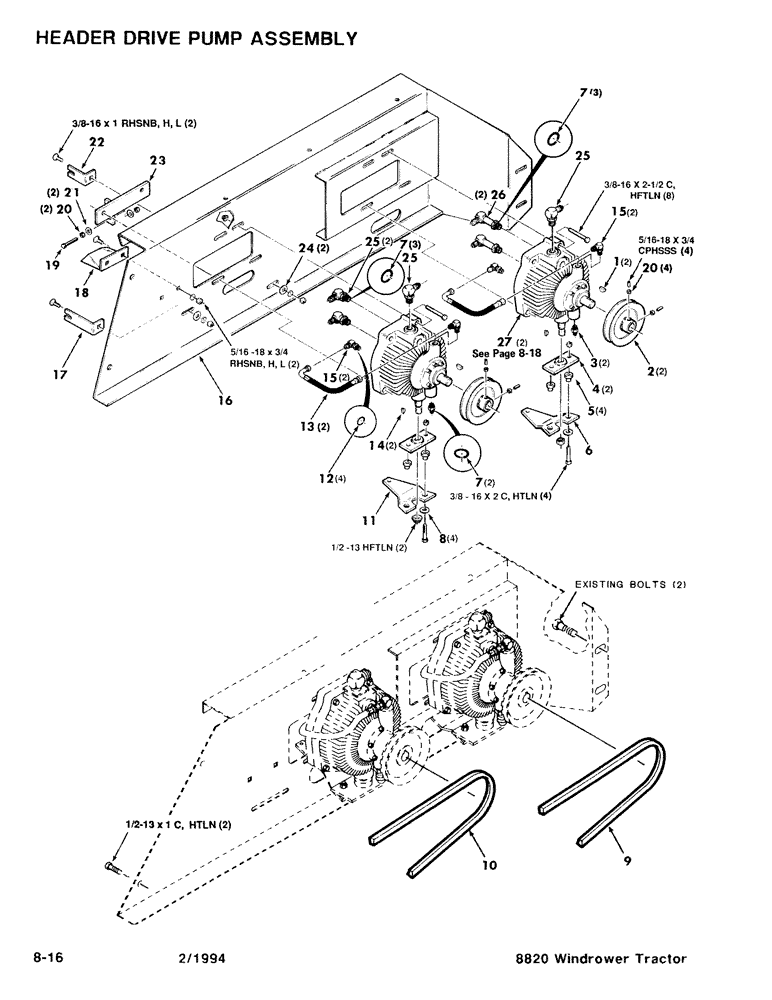

Схема запчастей Case IH 8820 - (8-16) - HEADER DRIVE PUMP ASSEMBLY (08) - HYDRAULICS
2
7
20
24
22
8
10
14
25
21
23
25
11
12
15
9
25
17
18
15
7
26
6
1
27
20
3
16
4
13
19
7
5

Артикул

Название

Примечание

Количество

1

61317

KEY

3/16 x 3/4 Woodruff Key

2шт.

2

7053929

SHEAVE

V-Sheave

2шт.

3

7046527

COUPLING, BREAK AWAY

Connector (Includes Item 7)

2шт.

4

700121128

BAR

- Control

2шт.

5

700701287

BUSHING

- Mounting

4шт.

6

700121115

SUPPORT

Arm - Pump, Control

1шт.

7

738450

O-RING

8шт.

8

700111084

WASHER

- Special

4шт.

9

55111

BELT

V-Belt

1шт.

10

857938

V-BELT,0.63" W x 46.50" L

1шт.

11

700121114

ARM

- Pump, Control

1шт.

12

738468

O-RING

4шт.

13

700709791

RIGID TUBE

Hose - Hyudraulic

2шт.

14

761726

KEY

1/8 x 5/8 Woodruff Key

2шт.

15

7746555

ELBOW

90deg. Elbow (Includes Item 12)

4шт.

16

700121105

SUPPORT

Channel - Support, Pump

1шт.

17

700121112

SUPPORT

- Cable, Reel Drive

1шт.

18

700121113

SUPPORT

- Guide

1шт.

19

7773930

BOLT

5/16-18 x 2 FTC

1шт.

20

704478

GEAR

5/16-18 Hex Jam Nut

6шт.

21

705525

WASHER

5/16 Hardened Plain Washer

2шт.

22

700121110

SUPPORT

- Cable

1шт.

23

700121100

STOP

- Cable

1шт.

24

705533

WASHER

3/8 Hardened Plain Washer

2шт.

25

7046147

ELBOW

90deg. Elbow (Includes Item 7)

4шт.

26

700701939

ELBOW

90deg. Elbow - Long (Includes Item 7)

2шт.

27

700709792

HYDRAULIC PUMP

Pump - Variable

2шт.

700709792R

REMAN-HYD PUMP

8820

2шт.

700709792C

CORE-HYDRAULIC PUMP

Return Number

1шт.

7701634

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3/8-16 x 2 C

2шт.

7701899

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

3/8-16 x 2-1/2 C

8шт.

703959

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

1/2-13 x 1 C

2шт.

7700065

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

5/16-18 x 3/4 RHSNB

4шт.

700047

BOLT

3/8-16 x 1 RHSNB

2шт.

69377

SET SCREW,Hex Soc, 5/16"-18 x 3/4"

5/16-18 x 3/4 CPHSSS

2шт.

704023

NUT,3/8"-16, G5

3/8-16 H

4шт.

7704141

EXTENSION

3/8-16 HTLN

4шт.

704858

LOCK NUT

1/2-13 HTLN

2шт.

704734

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN

8шт.

704742

ROD

1/2-13 HFTLN

2шт.

705038

CONTROL VALVE

3/8"

1шт.

Выбрано товаров: 41
