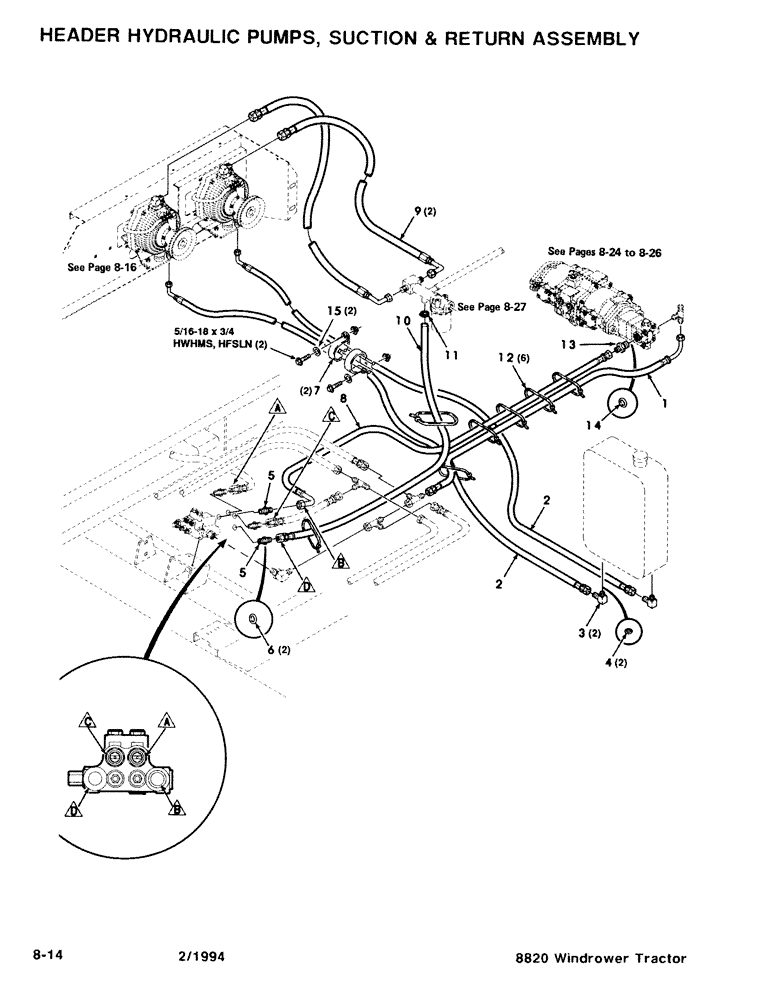

Запчасти Case IH 8820 (8-14) - HEADER HYDRAULIC PUMPS, SUCTION & RETURN ASSEMBLY (08) - HYDRAULICS

1

700707525

FLEXIBLE HOSE

Hose - Hydraulic

1шт.

2

700709802

RIGID TUBE

Hose - Hydraulic

2шт.

3

746768

ELBOW

90deg. Elbow (Includes Item 4)

2шт.

4

738484

O-RING

2шт.

5

846337

ROD, CONNECTING

Connector (Includes Item 6)

2шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

7

7041015

CLAMP

- Hose

2шт.

8

700701917

FLEXIBLE HOSE

Hose - Hydraulic

1шт.

9

700709803

RIGID TUBE

Hose - Hydraulic

2шт.

10

700707530

FLEXIBLE HOSE

Hose - Hydraulic

1шт.

11

7022411

HOSE CLAMP

Clamp - Hose

1шт.

12

7021728

STRAP

Tie - Cable

6шт.

13

7846660

CONNECTION

Adapter (Includes Item 14)

1шт.

14

738468

O-RING

1шт.

15

705525

WASHER

5/16 Hardened Plain Washer

2шт.

7703499

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16-18 x 3/4 C

1шт.

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

5/16-18 HFSLN

2шт.
