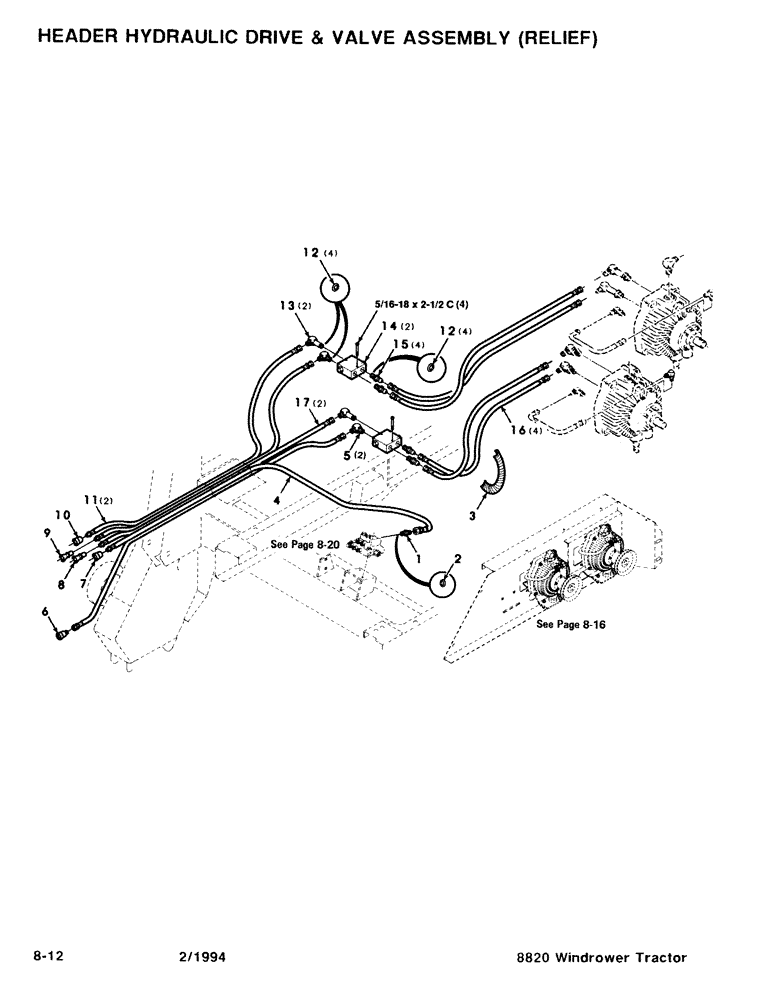

Запчасти Case IH 8820 (8-12) - HEADER HYDRAULIC DRIVE & VALVE ASSEMBLY, RELIEF (08) - HYDRAULICS

1

846634

COUPLING, BREAK AWAY

Connector (includes Item 2)

1шт.

2

738468

O-RING

1шт.

3

700105144

GROMMET

- Trim

1шт.

4

700707518

FLEXIBLE HOSE

Hose - Hydraulic

1шт.

5

7046147

ELBOW

90deg. Elbow (Includes Item 12)

2шт.

6

H436396

COUPLING

Coupler - Female, 1/2 Quick Disconnect

1шт.

7

700707515

QUICK MALE COUPLING

Coupler, 1/4

1шт.

8

7746688

COUPLING

Nipple, 1/2 Quick Disconnect

1шт.

9

700709821

HYD CONNECTOR

Nipple - Male, 1/2

1шт.

10

700709820

QUICK MALE COUPLING

Coupler - Female, 1/2

1шт.

11

700709801

RIGID TUBE

Hose - Hydraulic

2шт.

12

738450

O-RING

8шт.

13

700701393

DRIVEN SPROCKET

90deg. Elbow - Long (Includes Item 12)

2шт.

14

700709812

HYDRAULIC VALVE

Valve - Relief

2шт.

15

51200289

FITTING

Connector (Includes Item 12)

4шт.

16

700709800

HYDRAULIC HOSE,16.00 mm ID x 1465.00 mm, SAE 100R1

16.00 mm ID x 1465.00 mm, SAE 100R1

4шт.

17

700709799

HYDRAULIC HOSE,16.00 mm ID x 1325.00 mm, SAE 100R1

16.00 mm ID x 1325.00 mm, SAE 100R1

2шт.

7703945

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

5/16-18 x 2-1/2 C

4шт.
