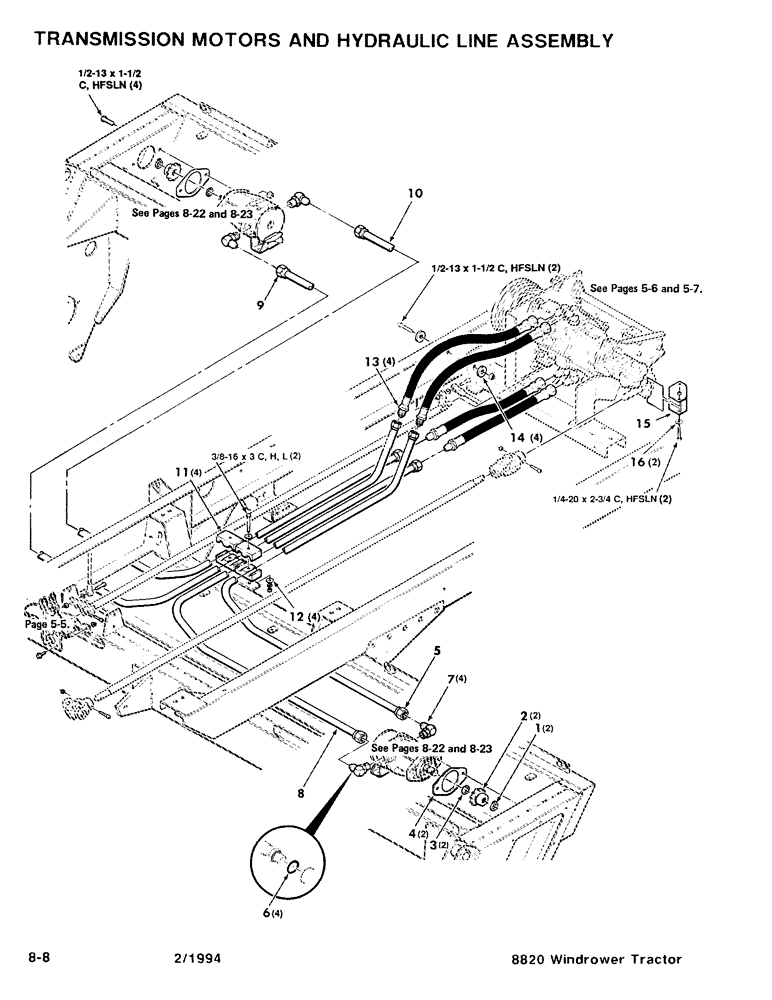

Запчасти Case IH 8820 (8-08) - TRANSMISSION MOTORS AND HYDRAULIC LINE ASSEMBLY (08) - HYDRAULICS

1

52969

SHAFT

Snap Ring - External

2шт.

2

700710209

SPROCKET

- 10-Tooth

2шт.

3

730127

CIRCLIP

Retaining Ring

2шт.

4

744144

GASKET

2шт.

5

700705511

TUBE

Line - Hydraulic, Left, Rear

1шт.

6

738476

O-RING

4шт.

7

7746068

ELBOW

90deg. Elbow with O-Ring

4шт.

8

700705513

TUBE

Line - Hydraulic, Left, Front

1шт.

9

700705512

TUBE

Line - Hydraulic, Right, Front

1шт.

10

700705514

RIGID TUBE

Line - Hydraulic, Right, Rear

1шт.

11

8029167

LINE

Block - Line, Hydraulic

4шт.

12

705533

WASHER

3/8 Hardened Plain Washer

4шт.

13

7073174

HOSE

- Hydraulic

4шт.

14

700120270

WASHER

- Special

4шт.

15

700111142

SHIELD

1шт.

16

705517

WASHER

1/4 Hardened Plain Washer

2шт.

7773856

BOLT,Hex, 1/4" - 20 x 2 3/4", Gr 5

1/4-20 x 2-3/4 C

2шт.

7703515

BOLT,Hex, 3/8" - 16 x 3", Gr 5

3/8-16 x 3 C

1шт.

701235

BOLT,1/2" - 13 x 1 1/2", Gr 5

1/2-13 x 1-1/2 C

6шт.

523282

SERRATED NUT,Flg, USR, 1/4"-20

1/4-20 HFSLN

2шт.

704254

NUT,Flg, USR, 1/2"-13

1/2-13 HFSLN

6шт.

704734

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN

2шт.
