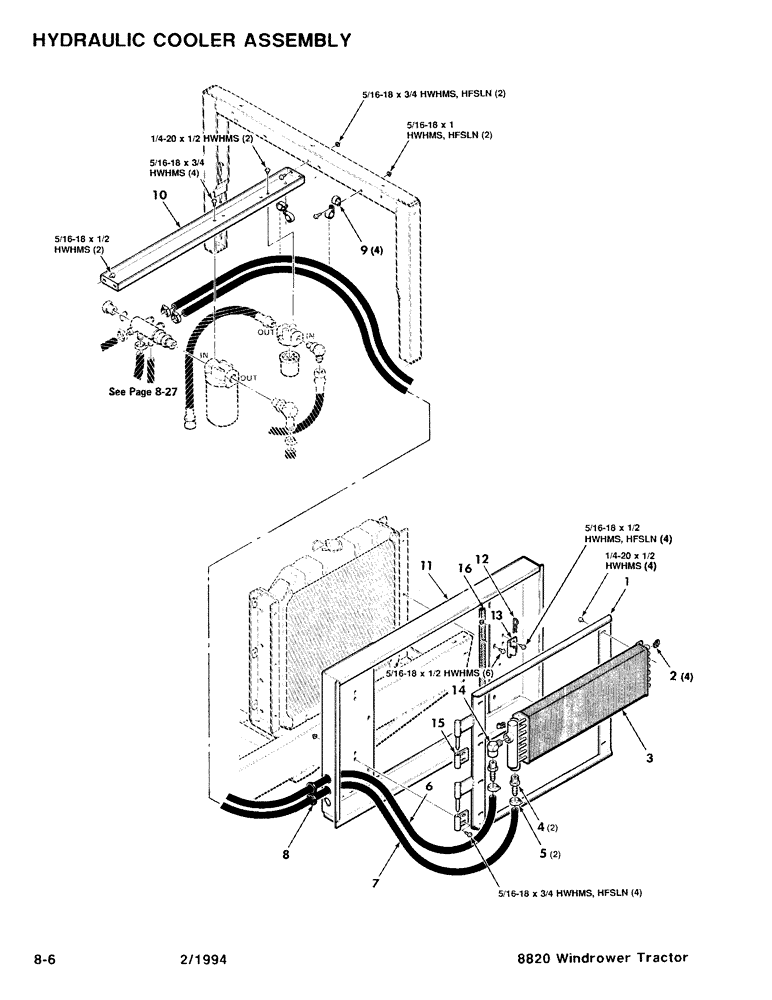

Запчасти Case IH 8820 (8-06) - HYDRAULIC COOLER ASSEMBLY (08) - HYDRAULICS

1

700111172

FRAME

- Primary, Cooler

1шт.

2

74807

NUT

1/4-20 Speed Nut

4шт.

3

700705538

OIL COOLER

Cooler - Oil, Hydraulic

1шт.

4

846899

INSERT

- Male

2шт.

5

7022411

HOSE CLAMP

Clamp - Hose

4шт.

6

700705544

FLEXIBLE HOSE

Hose - Hydraulic

1шт.

7

700705543

FLEXIBLE HOSE

Hose - Hydraulic

1шт.

8

8027179

GROMMET

2шт.

9

756486

CLAMP

- Hose

4шт.

10

700111164

SUPPORT

- Filter

1шт.

11

700111165

PANEL

1шт.

12

62349

LOCK WASHER

.149 Hairpin Cotter

1шт.

13

700111171

SUPPORT

1шт.

14

7846298

ELBOW

3/4 NPTF x 90deg. Elbow

1шт.

15

6805402

HINGE

2шт.

16

700110139

SEAL

Seal - Weather Strip (10 Foot Bulk)

1шт.

7883267

BOLT,Hex, 1/4" - 20 x 1/2", Gr 120M

1/4-20 x 1/2 HWHMS

6шт.

7883317

SCREW,Hex Washer, 5/16" - 18 x 1/2"

5/16-18 x 1/2 HWHMS

10шт.

7883325

BOLT,Hex, 5/16" - 18 x 3/4", Gr 120M

5/16-18 x 3/4 HWHMS

10шт.

7883333

BOLT,Hex, 5/16" - 18 x 1", Gr 120M

5/16-18 x 1 HWHMS

2шт.

704239

FRONT AXLE

5/16-18 HFSLN

12шт.
