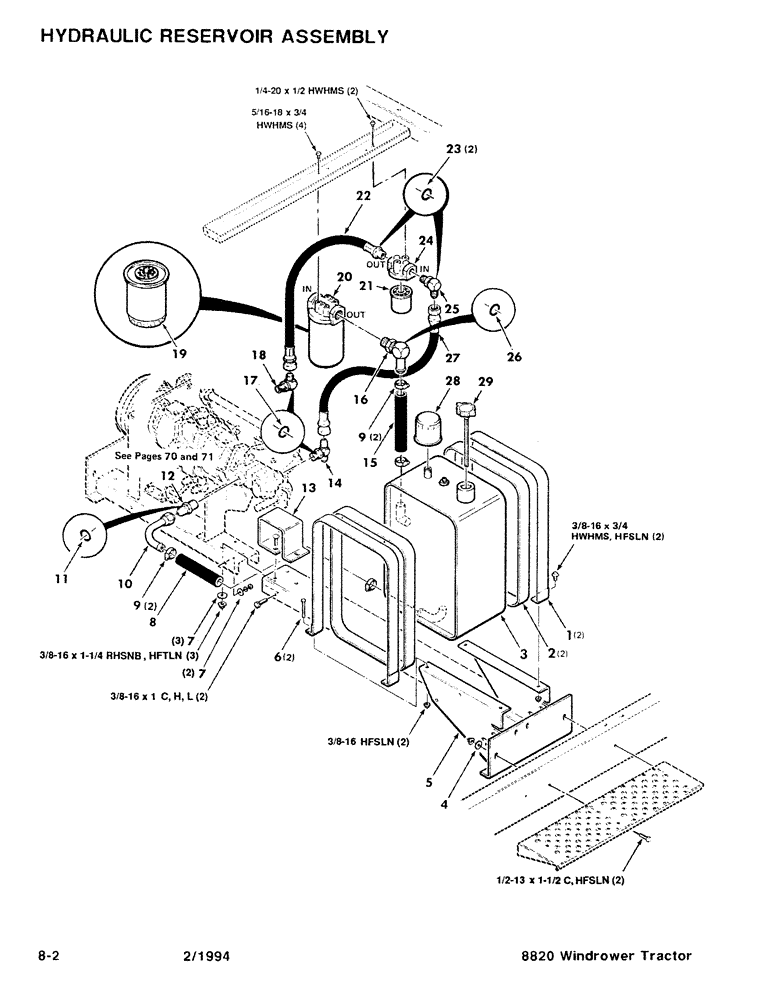

Запчасти Case IH 8820 (8-02) - HYDRAULIC RESERVOIR ASSEMBLY (08) - HYDRAULICS

1

6602445

STRAP

- Reservoir

2шт.

2

8044463

LINING

Liner - Strap

2шт.

3

700705539

RESERVOIR, HYDRAULIC

Tank - Cooler

1шт.

4

700120270

WASHER

- Special

2шт.

5

700110893

SUPPORT

- Tank

1шт.

6

703595

HYDRAULIC SYSTEM,Hex, 3/8" - 16 x 3", Gr 5, Full Thd

3/8-16 x 3 FTC

2шт.

7

705533

WASHER

3/8 Hardened Plain Washer

5шт.

8

8843039

HOSE

-Hydraulic

1шт.

9

721712

CLIP

Clamp - Hose

4шт.

10

8843443

LINE

- Hydraulic

1шт.

11

738476

O-RING

1шт.

12

7746050

ADAPTER

Connector (Includes Item 11)

1шт.

13

700113675

SHIELD

- Retainer

1шт.

14

7046980

TEE

(Includes Item 17)

1шт.

15

7796543

HOSE

- Hydraulic

1шт.

16

8046955

FITTING

90deg. Barbed Insert (Includes Item 26)

1шт.

17

738450

O-RING

2шт.

18

7046147

ELBOW

90deg. Elbow (Includes Item 17)

1шт.

19

7738743

FILTER

Element Kit

1шт.

20

8042574

FILTER ASSY

Filter (Includes Item 19)

1шт.

21

8040461

FILTER

1шт.

22

8843146

HOSE

- Hydraulic

1шт.

23

738484

O-RING

2шт.

24

8843260

FILTER

Head - Filter

1шт.

25

746768

ELBOW

90deg. Elbow ( Includes Item 23)

1шт.

26

7037807

O-RING,20-1, 90 Duro, 1.475" ID x .116" Thk

1шт.

27

8843054

HOSE

- Hydraulic

1шт.

28

7825516

FILTER

1шт.

29

8798456

FILLER CAP

Cap - Filter

1шт.

703249

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 C

2шт.

701235

BOLT,1/2" - 13 x 1 1/2", Gr 5

1/2-13 x 1-1/2 C

2шт.

700054

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 RHSNB

3шт.

7883267

BOLT,Hex, 1/4" - 20 x 1/2", Gr 120M

1/4-20 x 1/2 HWHMS

2шт.

7883325

BOLT,Hex, 5/16" - 18 x 3/4", Gr 120M

5/16-18 x 3/4 HWHMS

4шт.

7883374

SCREW,Hex Washer, 3/8" - 16 x 3/4"

3/8-16 x 3/4 HWHMS

2шт.

704023

NUT,3/8"-16, G5

3/8-16 H

2шт.

704247

NUT

3/8-16 HFSLN

4шт.

704254

NUT,Flg, USR, 1/2"-13

1/2-13 HFSLN

2шт.

704734

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN

3шт.

705038

CONTROL VALVE

3/8"

2шт.
