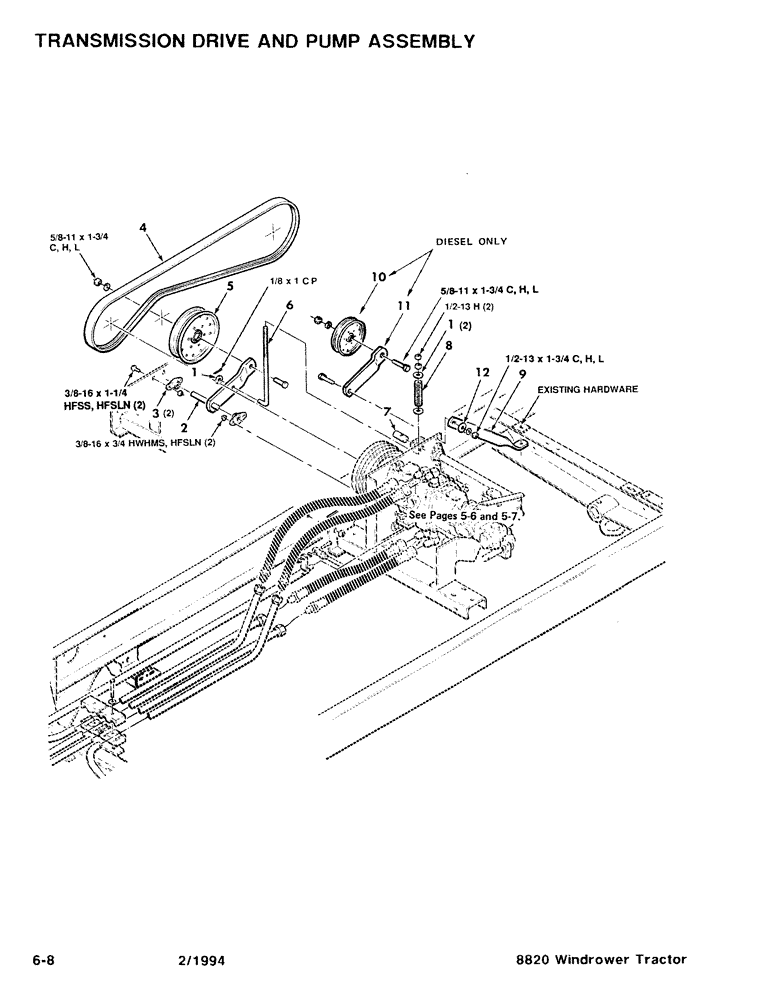

Запчасти Case IH 8820 (6-08) - TRANSMISSION DRIVE AND PUMP ASSEMBLY (06) - POWER TRAIN

1

705624

TAPPET

1/2 Narrow Plain Washer

3шт.

2

700110949

ARM

- Idler

1шт.

3

714592

BUSHING

Flange Bearing

2шт.

4

7855349

V-BELT,0.63" W x 104.50" L, 2 Ribs

1шт.

5

853044

FRONT IDLER

Idler - Flat

1шт.

6

700110952

LINK

- Adjustable

1шт.

7

6605588

PIVOT

1шт.

8

858019

SPRING

- Compression

1шт.

9

700111553

SUPPORT

Brace

1шт.

10

853473

PULLEY

Flat Idler (Diesel Only)

1шт.

11

700117826

ARM

- Idler (Diesel Only)

1шт.

12

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 Hardened Plain Washer

1шт.

703983

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2-13 x 1-3/4 C

1шт.

703793

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 5, Full Thd

5/8-11 x 1-3/4 C

1шт.

7883374

SCREW,Hex Washer, 3/8" - 16 x 3/4"

3/8-16 x 3/4 HWHMS

2шт.

7883408

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8

3/8-16 x 1-1/4 HFS

2шт.

704130

NUT,5/8"-11, G5

5/8-11 H

1шт.

704247

NUT

3/8-16 HFSLN

4шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

705061

PLUG

5/8"

2шт.
