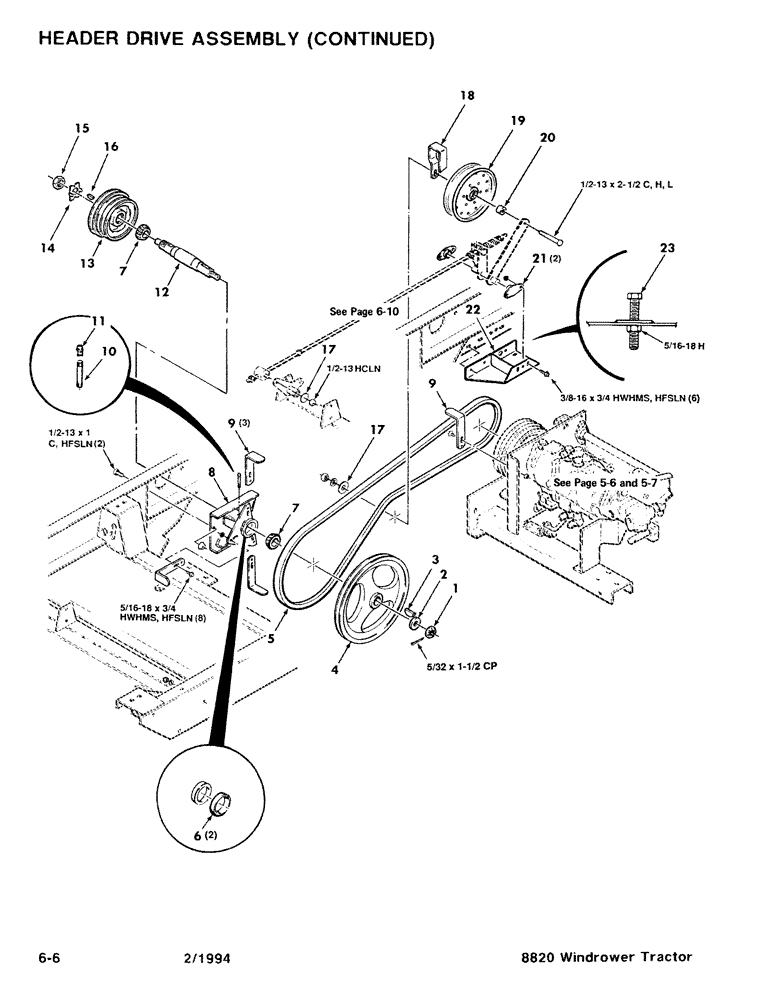

Запчасти Case IH 8820 (6-06) - HEADER DRIVE ASSEMBLY (CONTINUED) (06) - POWER TRAIN

1

7704208

SLOTTED NUT

3/4-16 Slotted Hex Nut

1шт.

2

497800

WASHER

1шт.

3

700707139

KEY

1/4 x 2-1/8 Woodruff Key

1шт.

4

700110944

PULLEY

Sheave

1шт.

5

7855331

V-BELT,22.33 mm W x 2813.00 mm L

1шт.

6

710459

CUP

Bearing Cup

2шт.

7

713818

ROLLER BEARING,34.938 mm ID x 65.113 mm OD x 18.796 mm

Bearing - Cone

2шт.

8

700122746

BAR LINING

Housing

1шт.

9

700110929

GUIDE

- Belt

4шт.

10

7792922

PIPE

Nipple

1шт.

11

700711232

FITTING

Zerk - Female, 1/8 NPT

1шт.

12

700116465

SHAFT

- Header

1шт.

13

700121003

PULLEY

Sheave - 4-Groove

1шт.

14

700110754

LOCKING TAB

Tab - Locking

1шт.

15

425-1520

JAM NUT,Jam, 1 1/4"-12, G5

1-1/4-12 Hex Jam Nut

1шт.

16

61283

WOODRUFF KEY,#15, 1/4" x 1"

1/4 x 1 Woodruff Key

1шт.

17

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 Hardened Plain Washer

2шт.

18

700110935

GUIDE

- Belt

1шт.

19

54510

FRONT IDLER

Idler - Flat

1шт.

20

159970

SPACER

1шт.

21

714592

BUSHING

Bearing - Flange

2шт.

22

700110862

SUPPORT

Channel

1шт.

23

7772858

BOLT,Hex, 5/16" x 1 3/4", Gr 5

5/16-18 x 1-3/4 FTC

1шт.

703249

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1/2-13 x 1 C

2шт.

701235

BOLT,1/2" - 13 x 1 1/2", Gr 5

1/2-13 x 1-1/2 C

2шт.

7703531

BOLT,Hex, 5/16" - 18 x 1 3/4", Gr 5

1/2-13 x 2-1/2 C

1шт.

7883325

BOLT,Hex, 5/16" - 18 x 3/4", Gr 120M

5/16-18 x 3/4 HWHMS

8шт.

7883374

SCREW,Hex Washer, 3/8" - 16 x 3/4"

3/8-16 x 3/4 HWHMS

6шт.

704015

NUT,5/16"-18, G5

5/16-18 H

1шт.

86516876

COVER

1/2-13 H

1шт.

704288

LOCK NUT

1/2-13 HCLN

1шт.

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

5/16-18 HFSLN

8шт.

704247

NUT

3/8-16 HFSLN

6шт.

704254

NUT,Flg, USR, 1/2"-13

1/2-13 HFSLN

2шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.
