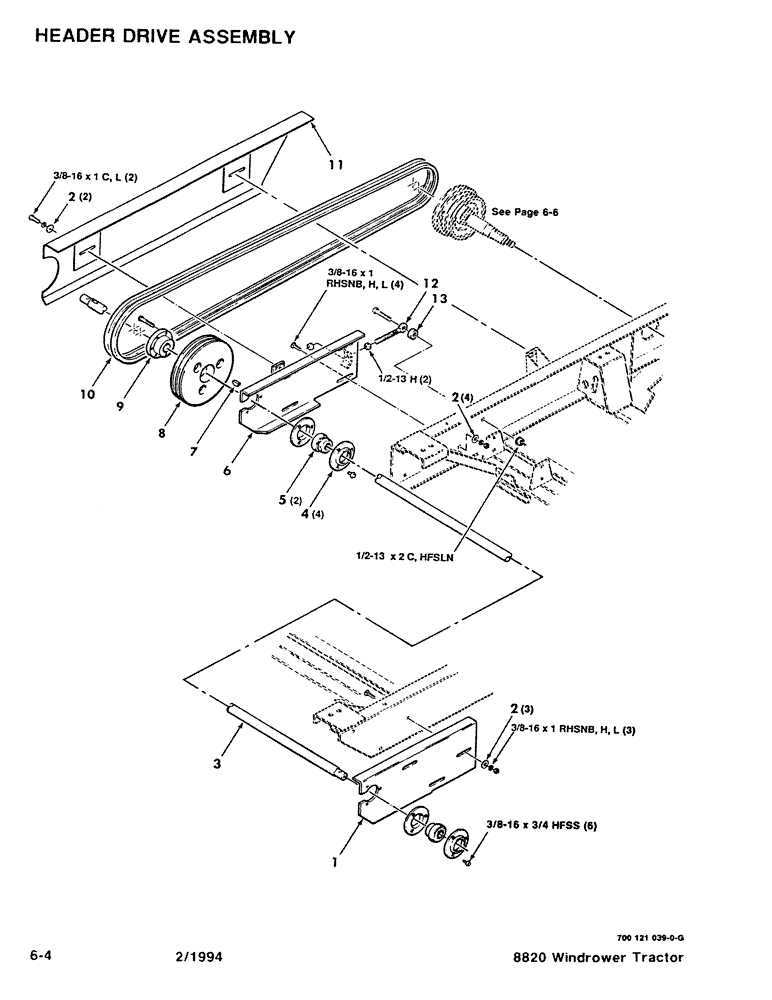

Запчасти Case IH 8820 (6-04) - HEADER DRIVE ASSEMBLY (06) - POWER TRAIN

1

700121007

CHANNEL

- Left

1шт.

2

705533

WASHER

3/8 Hardened Plain Washer

9шт.

3

700121002

SHAFT

1шт.

4

825620C1

RETAINER

- Bearing

4шт.

5

485259R91

BEARING ASSY,1.2505" ID x 72 mm OD x 1.4844"

- Spherical

2шт.

6

700121005

SUPPORT

Mounting - Drive

1шт.

7

61283

WOODRUFF KEY,#15, 1/4" x 1"

1/4 x 1 Woodruff Key

1шт.

8

700126399

SHEAVE

1шт.

9

7747280

ASSEMBLY

Taper Bushing (Includes Bolts)

1шт.

10

700708836

SET OF BELTS,3429.00 mm L

2 Matched, V-Belt 3429.00 mm L

1шт.

11

700127580

SHIELD

1шт.

12

51200284

BOLT (MACHINE)

Drawbolt

1шт.

13

6500433

BUSHING

Spacer

1шт.

703249

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 C

2шт.

7701675

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1/2-13 x 2 C

1шт.

700047

BOLT

3/8-16 x 1 RHSNB

7шт.

7703432

BOLT,Hex, Serr, 3/8" - 16 x 3/4"

3/8-16 x 3/4 HFSS

6шт.

704023

NUT,3/8"-16, G5

3/8-16 H

7шт.

704031

NUT

1/2-13 H

2шт.

704254

NUT,Flg, USR, 1/2"-13

1/2-13 HFSLN

1шт.

492-11038

LOCK WASHER,3/8"

3/8"

9шт.
