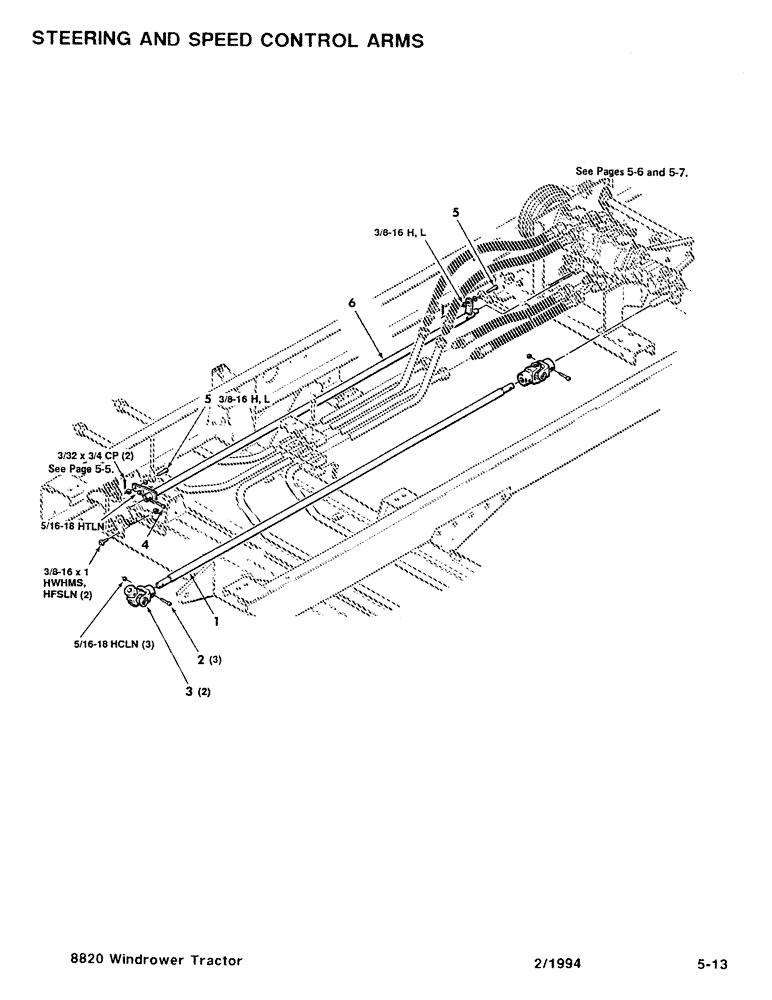

Запчасти Case IH 8820 (5-13) - STEERING AND SPEED CONTROL ARMS (05) - STEERING

1

700111125

RIGID TUBE,2144 mm Length

Pipe - Steering

1шт.

2

515-23317

CLAMP,31.75mm ID, 10.3mm Bolt Hole, P Type

5/16-18 x 1-1/2 HSHCS

3шт.

3

700705553

UNIVERSAL JOINT

U-Joint Assembly

2шт.

4

71019

HEX SOC SCREW,5/16"-18 x 1 1/4"

5/16-18 x 1-1/4 HSHCS

1шт.

700111557

SCREW

- Special

2шт.

6

700111006

ROD

- Control, Speed

1шт.

7883382

BOLT,Hex, 3/8" - 16 x 1", Gr 120M

3/8-16 x 1 HWHMS

2шт.

231-4115

NUT,5/16"-18, GB

NUT, LOCK, 5/16"-18, GB

1шт.

230-4215

NUT,5/16"-18, GA

5/16-18 HCLN

3шт.

704023

NUT,3/8"-16, G5

3/8-16 H

1шт.

704247

NUT

3/8-16 HFSLN

2шт.

705038

CONTROL VALVE

3/8"

1шт.
