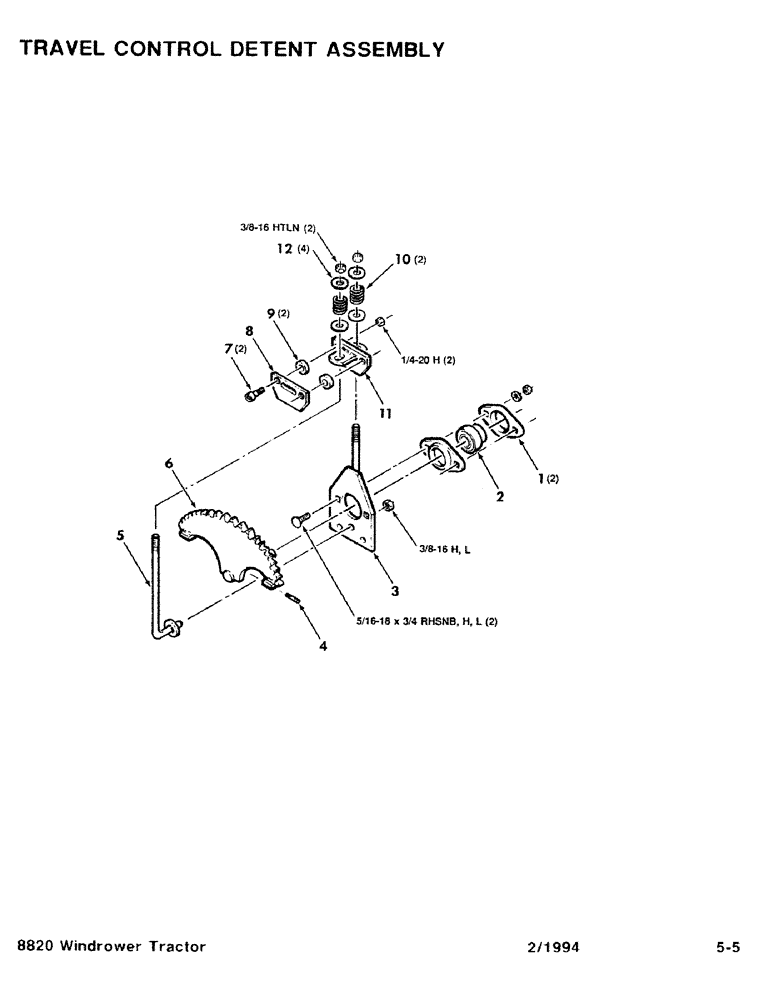

Запчасти Case IH 8820 (5-05) - TRAVEL CONTROL DETENT ASSEMBLY (05) - STEERING

1

469924R1

FLANGE

- Bearing

2шт.

2

711762

SPHERICAL BEARING,19.05 mm ID x 47 mm OD x 30.96 mm

Bearing - Spherical

1шт.

3

700115596

PLATE

- Link

1шт.

4

63370

PIN,5/32" x 1", Slotted

1шт.

5

700111529

ROD

- Link

1шт.

6

700111151

SPROCKET

- Quadrant

1шт.

7

773820

BOLT,Shoulder, 1/4" - 20 x 5/16"

5/16-18 x 3/8 HSHSS

2шт.

8

700115602

BAR PLATE

Plate - Cam

1шт.

9

700706189

BALL BEARING,8mm ID x 22mm OD x 7mm W

Bearing

2шт.

10

7758105

SPRING

- Compression

2шт.

11

700115599

BRACKET

Strap - Cam

1шт.

12

705533

WASHER

3/8 Hardened Plain Washer

4шт.

700013

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

5/16-18 x 3/4 RHSNB

2шт.

7704141

EXTENSION

3/8-16 HTLN

2шт.

704007

NUT,1/4"-20, G5

1/4-20 H

2шт.

704015

NUT,5/16"-18, G5

5/16-18 H

2шт.

704023

NUT,3/8"-16, G5

3/8-16 H

1шт.

705038

CONTROL VALVE

3/8"

1шт.
