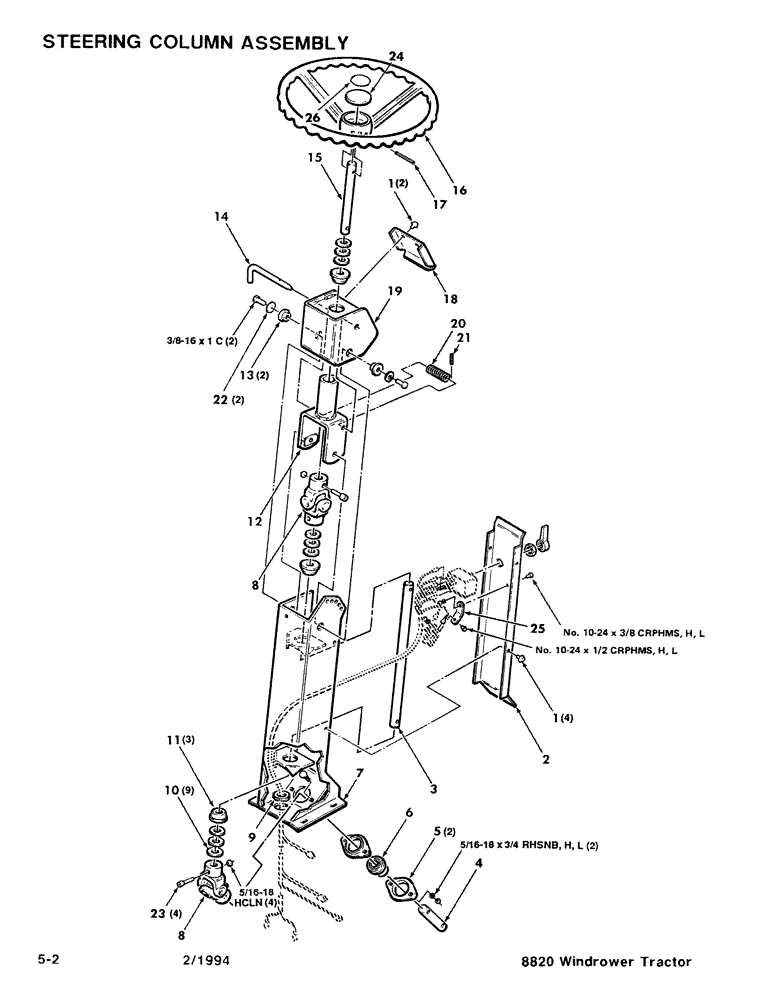

Запчасти Case IH 8820 (5-02) - STEERING COLUMN ASSEMBLY (05) - STEERING

1

701607

BRACKET

1/4-20 x 1/2 HWHTCTS

6шт.

2

700111066

COVER

- Column

1шт.

3

700111071

SHAFT

- Vertical

1шт.

4

700111072

SHAFT

- Short

1шт.

5

711952

LINE

- Bearing

2шт.

6

711762

SPHERICAL BEARING,19.05 mm ID x 47 mm OD x 30.96 mm

Bearing - Spherical

1шт.

7

700111056

CHANNEL

- Post

1шт.

8

700705553

UNIVERSAL JOINT

U-Joint - Single

2шт.

9

8827172

GROMMET

1шт.

10

52183

BUSHING

3/4 x 19 Gauge Machinery Bushing

9шт.

11

700705557

BUSHING

3шт.

12

700111064

YOKE

- Steering

1шт.

13

700705555

BUSHING

2шт.

14

700111068

ROD

Pin - Rod

1шт.

15

700111067

SHAFT

- Primary

1шт.

16

7845050

WHEEL (STEERING)

Steering Wheel

1шт.

17

63149

LOCK PIN,1/4" x 2 1/2", Slotted

Pin, 1/4" x 2 1/2", Slotted

1шт.

18

700111069

COVER

1шт.

19

700111060

HOUSING

- Cover

1шт.

20

7758139

SPRING

- Compression

1шт.

21

438-11016

LOCK PIN,5/32" x 1", Slotted

1шт.

22

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

3/8 Hardened Plain Washer

2шт.

23

515-23317

CLAMP,31.75mm ID, 10.3mm Bolt Hole, P Type

5/16-18 x 1-1/2 HSHCS

4шт.

24

775825

PLASTIC

Lens - Blank

1шт.

25

700704952

DECAL

1шт.

26

700111196

MOUNTING PLATE

Mounting - Buzzer

1шт.

27

700708114

DECAL

Lens - Decal

1шт.

703249

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 C

2шт.

700013

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

5/16-18 x 3/4 RHSNB

2шт.

700704837

SCREW,Cross Pan Hd, #10-24 x 3/8"

No. 10-24 x 3/8 CRPHMS

1шт.

700700628

SCREW,Cross Pan Hd, #10-24 x 1/2"

No. 10-24 x 1/2 CRPHMS

1шт.

704619

SUPPORT

5/16-18 HCLN

5шт.

704072

NUT

No. 10-24 H

2шт.

704015

NUT,5/16"-18, G5

5/16-18 H

2шт.

705004

LOCK WASHER

No. 10 L

2шт.

705020

LOCK WASHER

5/16"

2шт.
