(4-18) - CONTROL PANEL ASSEMBLY, ELECTRICAL

Запчасти Case IH 8820 (4-18) - CONTROL PANEL ASSEMBLY, ELECTRICAL (04) - ELECTRICAL SYSTEMS

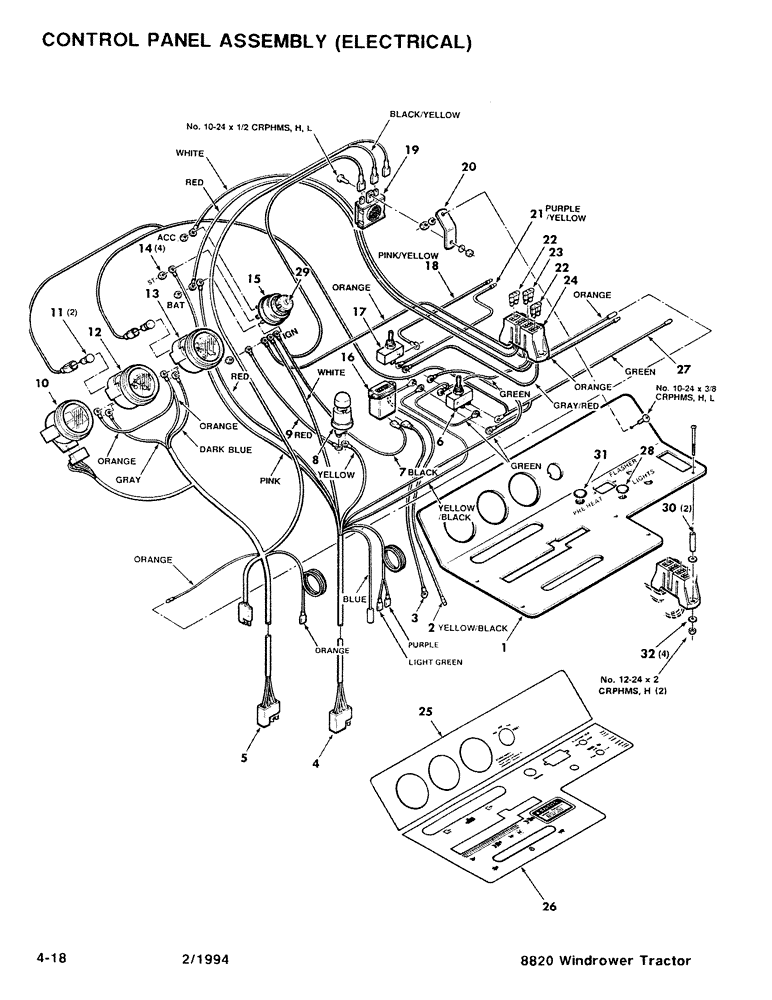

Схема запчастей Case IH 8820 - (4-18) - CONTROL PANEL ASSEMBLY, ELECTRICAL (04) - ELECTRICAL SYSTEMS
16
22
30
24
25
21
17
13
23
6
3
9
11
1
5
12
2
7
27
26
31
15
8
14
32
18
28
22
19
4
29
10
20
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700116672

CONSOLE

Panel - Console

1шт.

2

700705658

WIRE HARNESS

Wire - Electrical

1шт.

3

700705661

WIRE HARNESS

Wire - Electrical

1шт.

4

700705666

WIRE HARNESS

Harness - Wiring

1шт.

5

700705664

WIRE HARNESS

Harness - Wiring

1шт.

6

700706897

SWITCH

1шт.

7

700705662

WIRE HARNESS

Wire - Electrical

1шт.

8

722132

SWITCH

1шт.

9

7724289

ELECTRICAL WIRE

Wire - Electrical (Diesel Only)

1шт.

10

700705644

LEVEL GAUGE CONTROL

Gauge - Indicator Light

1шт.

11

700707066

BULB

Lamp

2шт.

12

8022022

FUEL GAUGE

Gauge - Fuel

1шт.

13

700705645

LEVEL GAUGE

Gauge - Temp (Diesel Only)

1шт.

700712185

GAUGE

- Temp (Gas Only)

1шт.

14

704445

NUT

No. 10-32 H

4шт.

15

7041205

SWITCH

- Starter

1шт.

16

700705648

HOURMETER

Hour Meter

1шт.

17

700706896

SWITCH

1шт.

18

700706886

WIRE

- Electric

1шт.

19

700705642

BUZZER

1шт.

20

700111196

MOUNTING PLATE

Mounting - Buzzer

1шт.

21

700706885

WIRE

- Electrical

1шт.

22

700705774

FUSE

2шт.

23

700705776

FUSE

1шт.

24

700710348

FUSE HOLDER

Fuse Box - Harness

1шт.

25

700707785

DECAL

- Panel, Console

1шт.

26

700707561

DECAL

- Panel, Console

1шт.

27

700706888

WIRE HARNESS

Harness - Wiring

1шт.

28

720235

BUTTON

- Snap In

1шт.

29

7020043

KEY

- Ignition

1шт.

30

700710698

PIN

5/16 x 1-1/4 SSP

2шт.

31

7745052

BUSHING

Button - Snap-in

1шт.

32

705699

WASHER,#12

No. 12 Plain Washer

4шт.

700700628

SCREW,Cross Pan Hd, #10-24 x 1/2"

No. 10-24 x 1/2 CRPHMS

1шт.

700704837

SCREW,Cross Pan Hd, #10-24 x 3/8"

No. 10-24 x 3/8 CRPHMS

1шт.

700710346

SCREW

No. 12-24 x 2 CRPHMS

2шт.

NLS

NO LONGER SERVICED

No. 10-24 H

2шт.

7774888

NUT

No. 12-24 H

2шт.

705004

LOCK WASHER

No. 10 L

2шт.
