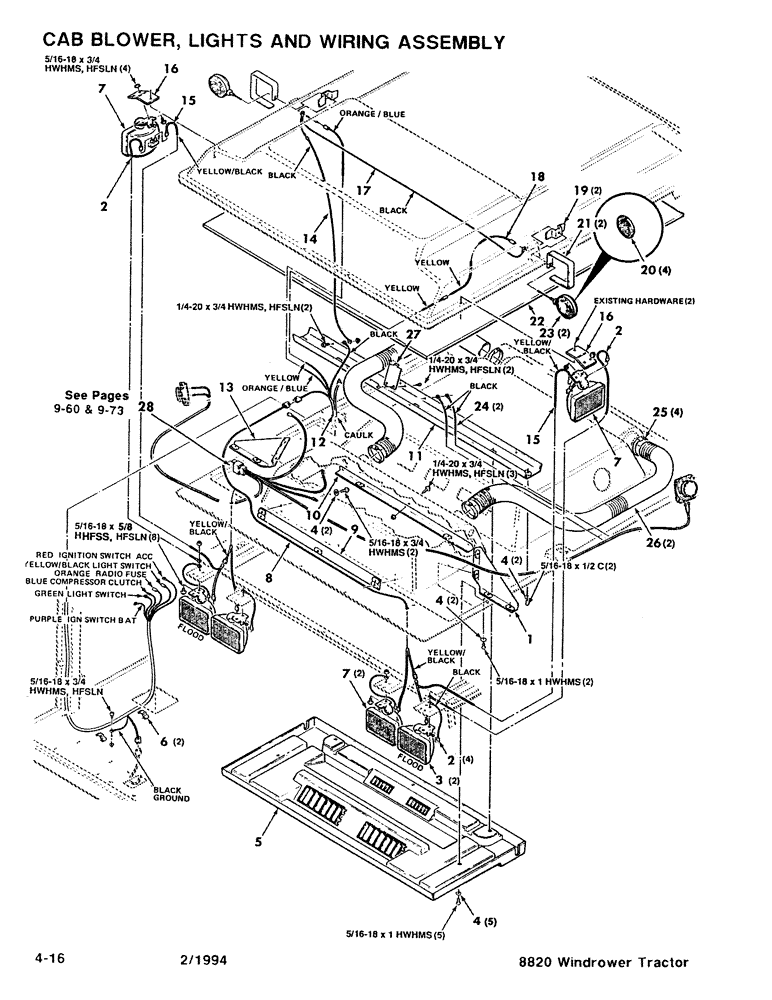

Запчасти Case IH 8820 (4-16) - CAB BLOWER, LIGHTS AND WIRING ASSEMBLY (04) - ELECTRICAL SYSTEMS

1

700110129

SUPPORT

- Left

1шт.

2

700705124

WIRE

- Electrical

6шт.

3

700705183

HEADLAMP

Headlight - Flood

2шт.

4

700709602

WASHER,5/16"

5/16 Wide Plain Washer

11шт.

5

700121359

COVER

1шт.

6

7745193

CLIP

2шт.

7

700705184

WORK LAMP

Headlight

4шт.

8

700706890

WIRE HARNESS

Harness - Wiring

1шт.

9

700110127

STRAP

1шт.

10

700115093

SUPPORT

Angle - Support

1шт.

11

700110145

SUPPORT

Channel - Support

1шт.

12

700706891

WIRE HARNESS

Harness - Wiring

1шт.

13

700110132

SUPPORT

- Right

1шт.

14

700705123

WIRE

- Electrical

1шт.

15

700707560

WIRE HARNESS

Wire - Electrical

2шт.

16

700116669

PLATE

- Light Mounting

2шт.

17

700705143

WIRE

- Electircal

1шт.

18

700705121

WIRE

- Electrical

1шт.

19

700117856

REINFORCEMENT

- Light

2шт.

20

700711749

LENS

- Flasher

4шт.

21

700110126

SHIELD

- Flasher Light

2шт.

22

700705148

ROOF LINING

Cover - Foam

1шт.

23

700708036

SIDE LAMP ASSY

Light - Flasher

2шт.

24

700705125

WIRE

- Electrical

2шт.

25

7720063

CLAMP

4шт.

26

700705136

HOSE

- Air Ducting

2шт.

27

700110124

SUPPORT

- Radio (S.N. CFH0049001 thru -0049523)

1шт.

700124527

SUPPORT

- Radio (S.N. CFH0049524 and Later)

1шт.

28

700705711

WIRE HARNESS

Harness - Radio (S.N. CFH0049001 thru -0049523)

1шт.

700712487

HARNESS

- Radio (S.N. CFH0049524 and Later)

1шт.

773184

PISTON,Hex, 5/16" - 18 x 1/2", Gr 5

5/16-18 x 1/2 C

2шт.

7883275

SCREW,Hex Washer, 1/4" - 20 x 3/4"

1/4-20 x 3/4 HWHMS

7шт.

7703440

BOLT,Hex Flange, 5/16" - 18 x 5/8"

5/16-198 x 5/8 HFSS

8шт.

7883325

BOLT,Hex, 5/16" - 18 x 3/4", Gr 120M

5/16-18 x 3/4 HWHMS

7шт.

7883333

BOLT,Hex, 5/16" - 18 x 1", Gr 120M

5/16-18 x 1 HWHMS

7шт.

704221

NUT

1/4-20 HFSLN

7шт.

704239

FRONT AXLE

5/16-18 HFSLN

13шт.
