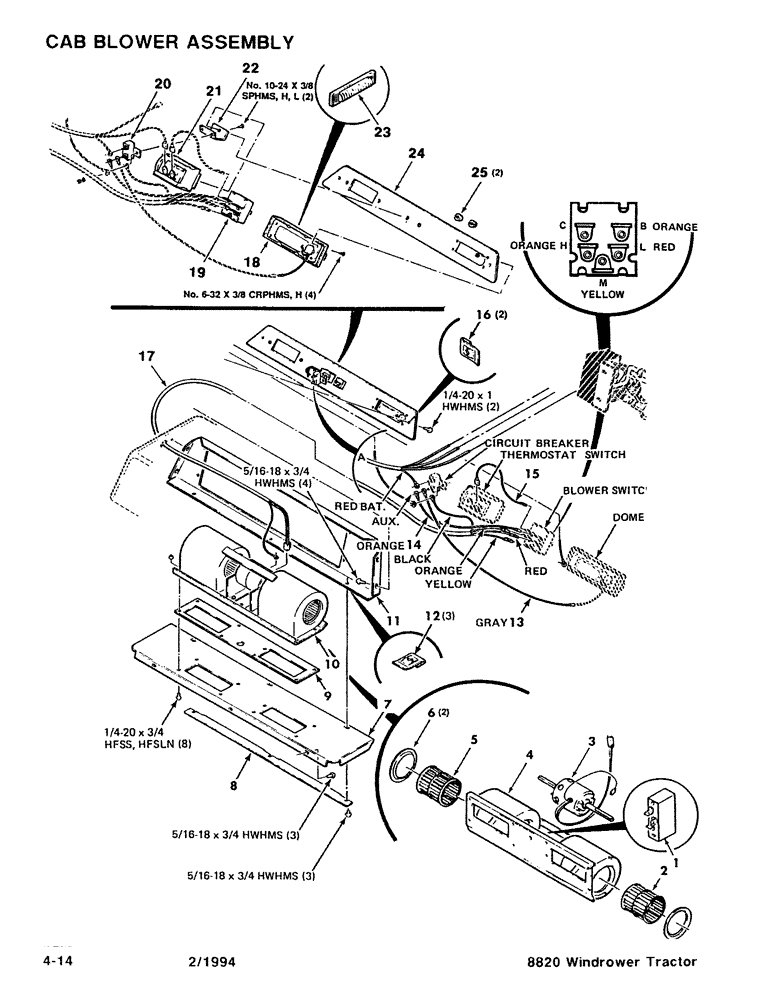

Запчасти Case IH 8820 (4-14) - CAB BLOWER ASSEMBLY (04) - ELECTRICAL SYSTEMS

1

700710564

RESISTOR

1шт.

2

7025869

BLOWER

Wheel - Left

1шт.

3

700710562

ELECTRIC MOTOR

Motor - Blower

1шт.

190333A1R

REMAN-ELECTRIC MOTOR,12V

8820, Reman For New P/N's 700710562 & 190333A1,

1шт.

190333A1C

CORE-ELECTRIC MOTOR,12V

Return Number

1шт.

4

8022543

HOUSING

- Blower

1шт.

5

7025877

BLOWER,Fan

Blower Wheel - Right

1шт.

6

700710563

RING

- Inlet

2шт.

7

700110136

COVER

- Blower

1шт.

8

700115094

RETAINER

1шт.

9

8020273

SEAL

- Blower

1шт.

10

700710548

FAN

Blower Assembly

1шт.

11

700110135

BULKHEAD

- Evaporator

1шт.

12

131-637

SPRING NUT,Ret, J, 5/16"-18

5/16-18 Speed Nut

3шт.

13

700705122

WIRE

- Electrical

1шт.

14

700705126

WIRE

- Electrical

1шт.

15

8799462

ELECTRICAL WIRE

Wire - Electrical

1шт.

16

700705135

NUT

1/4-20 Speed Nut

2шт.

17

700710547

WIRE HARNESS

Harness - Wire

1шт.

18

8020562

LAMP

Domelight

1шт.

19

7021785

SWITCH

- Blower

1шт.

20

7025653

CIRCUIT-BREAKER

Breaker - Circuit

1шт.

21

8022337

SWITCH

- Thermostat

1шт.

22

700110144

MOUNTING PLATE

Mount - Circuit

1шт.

23

CAS8022816

HUB CAP

Bezel and Lens

1шт.

24

700100149

Panel - Conditioner Control W/Decal

1шт.

25

7722622

KNOB

- Control

2шт.

700704132

SCREW,Cross Pan Hd, #6-32 x 3/8"

No. 6-32 x 3/8 CRPHMS

4шт.

700701065

SCREW,Slotted Pan Hd, #10-24 x 3/8"

No. 10-24 x 3/8 SPHMS

2шт.

7771355

BOLT,Hex Flange, 1/4" - 20 x 3/4"

1/4-20 x 3/4 HFSS

8шт.

7703440

BOLT,Hex Flange, 5/16" - 18 x 5/8"

5/16-18 x 5/8 HFSS

1шт.

7883283

SCREW,Hex Washer, 1/4" - 20 x 1"

1/4-20 x 1 HWHMS

2шт.

7883325

BOLT,Hex, 5/16" - 18 x 3/4", Gr 120M

5/16-18 x 3/4 HWHMS

9шт.

704551

NUT

No. 6-32 H

4шт.

704072

NUT

No. 10-24 H

2шт.

705004

LOCK WASHER

No. 10 L

2шт.
