Запчасти Case IH 8820 (4-10) - ENGINE WIRING ASSEMBLY, REAR, DIESEL (04) - ELECTRICAL SYSTEMS

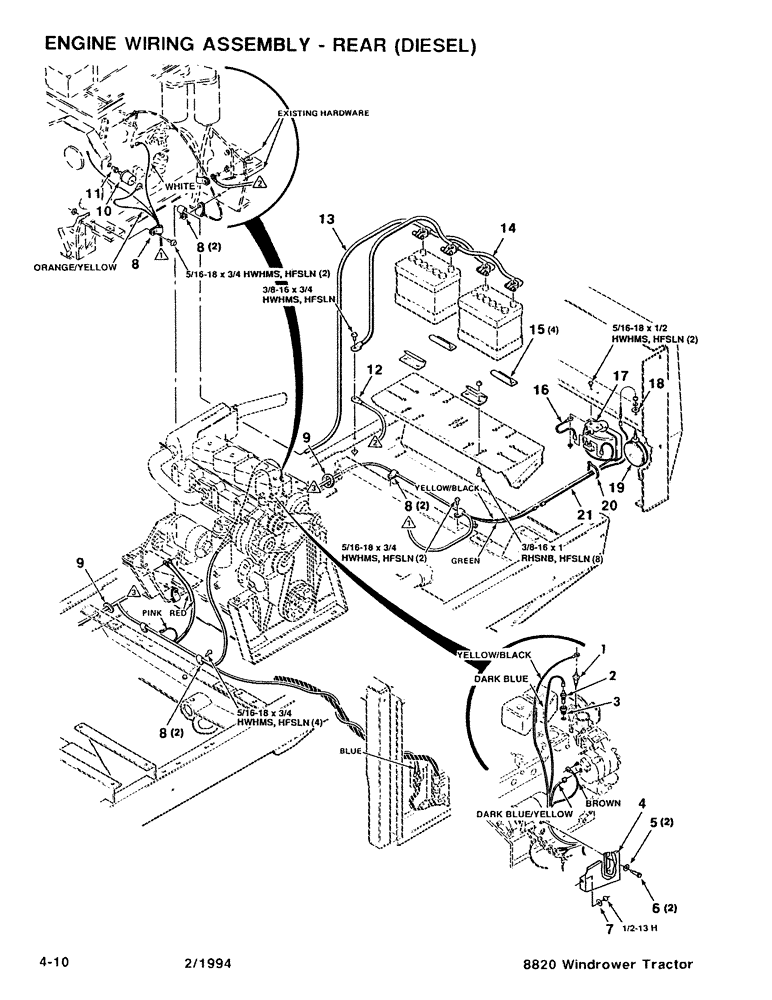

Схема запчастей Case IH 8820 - (4-10) - ENGINE WIRING ASSEMBLY, REAR, DIESEL (04) - ELECTRICAL SYSTEMS
8
1
14
1
6
8
7
19
21
20
9
16
12
5
8
18
9
17
15
10
13
8
2
4
2
11
3

Артикул

Название

Примечание

Количество

1

700708219

TEMPERATURE SENDER

Switch-Temperature

1шт.

2

700712184

SWITCH

Sender-Temperature

1шт.

3

221-88

REDUCER,Hex, 1/2" x 1/4" NPT

1/2 x 1/4 Reducer Bushing,NIPPLE (Gas engine only)

1шт.

4

700117931

SHIELD

- Starter

1шт.

5

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

M 12 P

2шт.

6

7771843

SCREW

M 12 x 1.75 x 16 C

2шт.

7

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 Hardened Plain Washer

1шт.

8

751487

CLAMP

7шт.

9

248-21114

GROMMET,1 1/2" ID x 1 3/4" Groove Dia

2шт.

10

700708220

SWITCH

- Pressure

1шт.

11

7846926

ADAPTER

Bushing

1шт.

12

722868

CABLE

Wire - Electrical

1шт.

13

700705652

ELECTRIC CABLE

Cable-Battery, Starter

1шт.

14

700705651

GROUND CABLE

Cable-Battery, Ground

1шт.

15

6827695

CLAMP BRACKET

Holddown, Battery

4шт.

16

700705124

WIRE

-Electrical

1шт.

17

700705183

HEADLAMP

Lught

1шт.

18

705533

WASHER

3/8 Hardened Plain Washer

1шт.

19

700710290

LAMP, TAIL

Tail Light

1шт.

20

8722431

STRAP

Tie-Plastic

1шт.

21

700709474

WIRE HARNESS

Harness-Wire

1шт.

700047

BOLT

3/8-16 x 1 RHSNB

8шт.

7883317

SCREW,Hex Washer, 5/16" - 18 x 1/2"

5/16-18 x 1/2 HWHMS

2шт.

7883325

BOLT,Hex, 5/16" - 18 x 3/4", Gr 120M

5/16-18 x 3/4 HWHMS

8шт.

7883374

SCREW,Hex Washer, 3/8" - 16 x 3/4"

3/8-16 x 3/4 HWHMS

1шт.

704031

NUT

1/2-13 H

1шт.

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

5/16-18 HFSLN

10шт.

704247

NUT

3/8-16 HFSLN

9шт.

Выбрано товаров: 28
