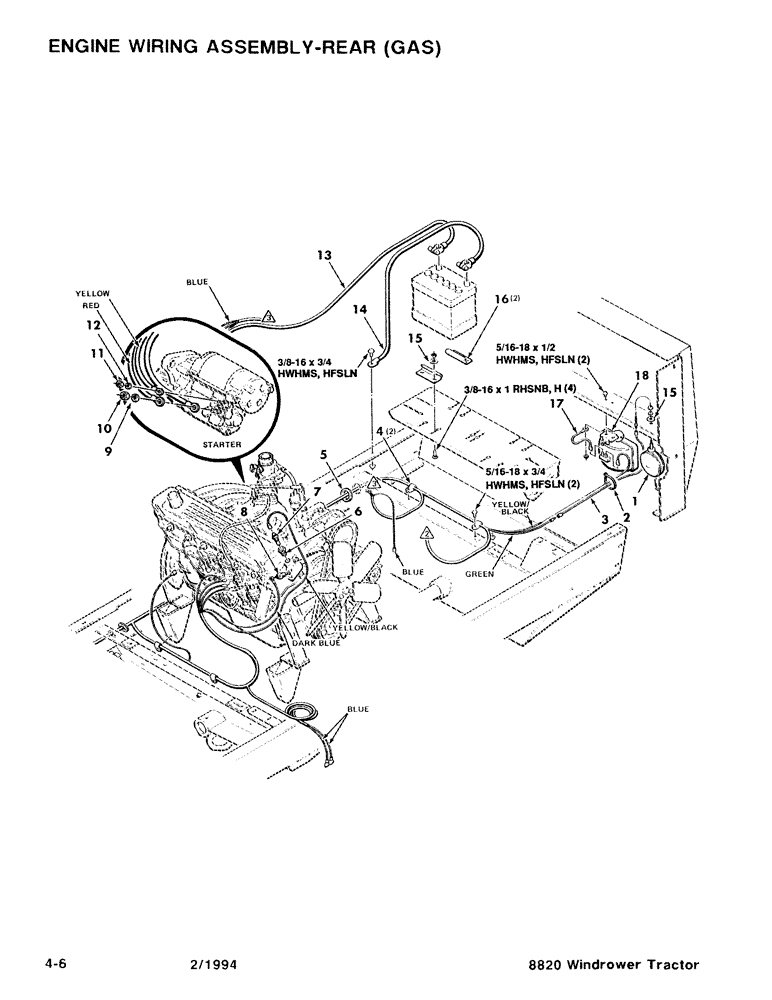

Запчасти Case IH 8820 (4-06) - ENGINE WIRING ASSEMBLY, REAR, GAS (04) - ELECTRICAL SYSTEMS

1

700710290

LAMP, TAIL

Tail Light

1шт.

2

8722431

STRAP

Tie - Plastic

1шт.

3

700709474

WIRE HARNESS

Harness - Wiring

1шт.

4

751487

CLAMP

- Wiring

2шт.

5

248-21114

GROMMET,1 1/2" ID x 1 3/4" Groove Dia

1шт.

6

7792138

BUSHING

3/8 x 1/4 Reducer Bushing

1шт.

7

700712184

SWITCH

- Temperature

1шт.

8

700705649

TEMPERATURE SENDER

Sender - Temperature

1шт.

9

700700324

SPRING WASHER

8 L

1шт.

10

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

M8 x 1.25 H

1шт.

11

7704513

NUT

M4 x 0.7 H

1шт.

12

700703071

WASHER

4 L

1шт.

13

7025422

HARNESS

Cable - Positive, Battery

1шт.

14

721068

CABLE

- Ground, Battery

1шт.

15

705533

WASHER

3/8 Hardened Plain Washer

5шт.

16

6827695

CLAMP BRACKET

Holddown

2шт.

17

700705124

WIRE

- Electrical

1шт.

18

700705183

HEADLAMP

Light - Flood

1шт.

700047

BOLT

3/8-16 x 1 RHSNB

4шт.

7883317

SCREW,Hex Washer, 5/16" - 18 x 1/2"

5/16-18 x 1/2 HWHMS

2шт.

7883325

BOLT,Hex, 5/16" - 18 x 3/4", Gr 120M

3/8-16 x 3/4 HWHMS

2шт.

7883374

SCREW,Hex Washer, 3/8" - 16 x 3/4"

5/16-18 x 3/4 HWHMS

1шт.

704023

NUT,3/8"-16, G5

3/8-16 H

4шт.

704239

FRONT AXLE

5/16-18 HFSLN

4шт.

704247

NUT

3/8-16 HFSLN

1шт.
