(3-12) - FUEL FILTER ASSEMBLY

Запчасти Case IH 8820 (3-12) - FUEL FILTER ASSEMBLY (03) - FUEL SYSTEM

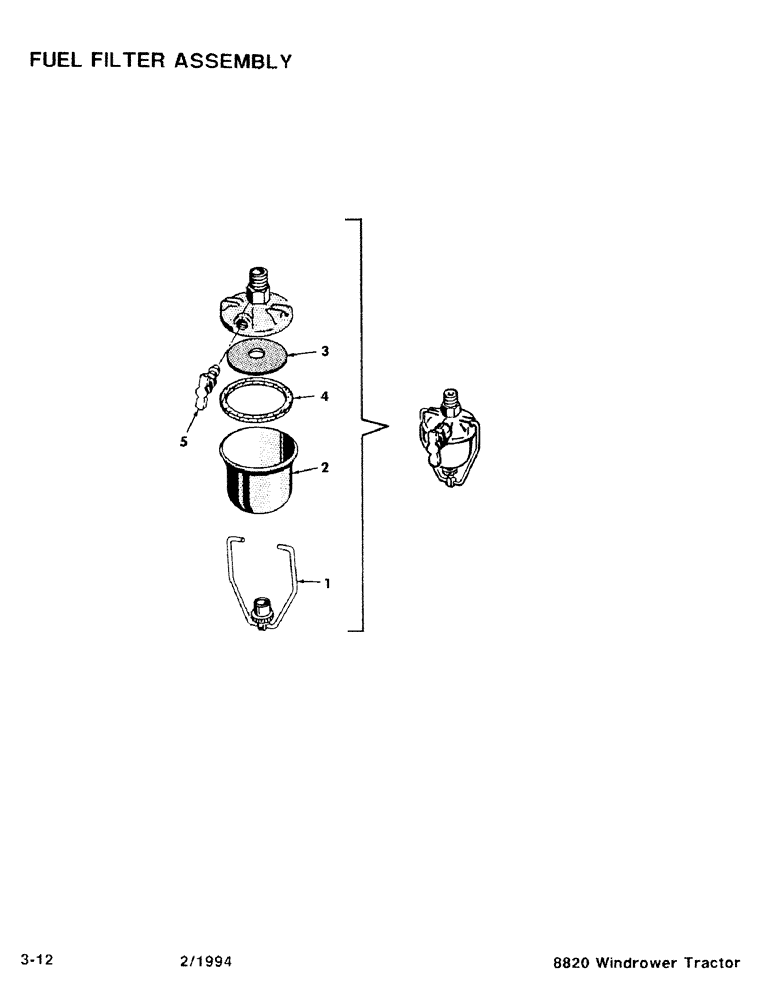

Схема запчастей Case IH 8820 - (3-12) - FUEL FILTER ASSEMBLY (03) - FUEL SYSTEM
3
4
2
5
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

720714

STRAINER ASSY.

Fuel Filter Complete

1шт.

1

700712690

COLLAR CLAMP

Bail Assembly (includes Stud, Nut and Cup)

1шт.

Ref #1 700712690 subs to 49947D - nut is NOT included. pt # for nut is A11210 per Marv Hood. SC - CAM 9/2/98

1шт.

2

700712691

BOWL

(Glass)

1шт.

3

700712692

SCREEN

- Filter

1шт.

4

700712693

GASKET

- Bowl

1шт.

5

700712694

VALVE

Assembly - Filter

1шт.

Выбрано товаров: 7
